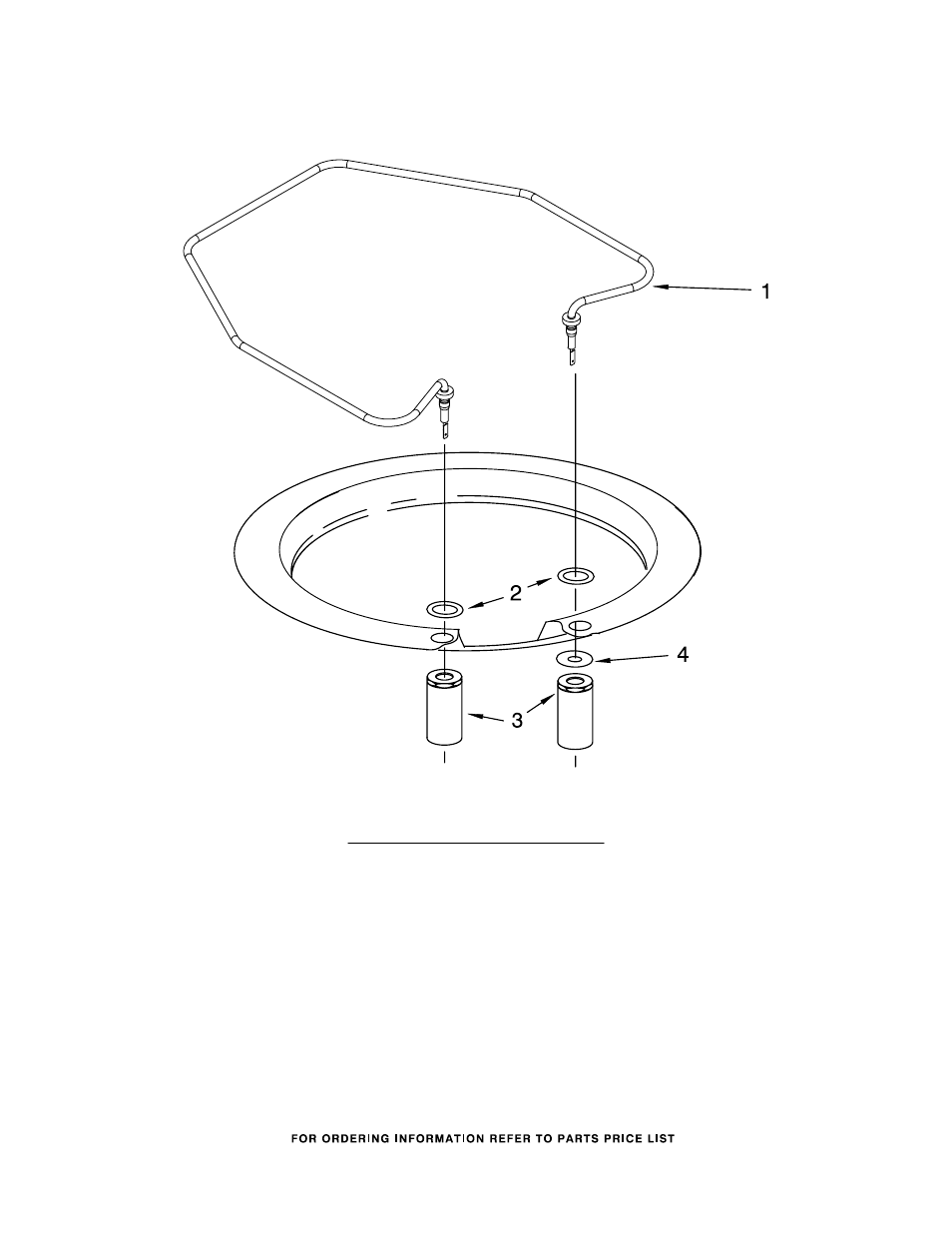

HEATER PARTS
10
For Models: KUDC03ITBL3, KUDC03ITBS3
(Black) (Stainless)
W10200939
Illus. Part
No. No. DESCRIPTION
1
8537057 Heater Element
Assembly
(Also Includes
Item 2)
2
717273 Washer, Heater
Element
3
8268548 Nut, Heater
Element
4
3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
