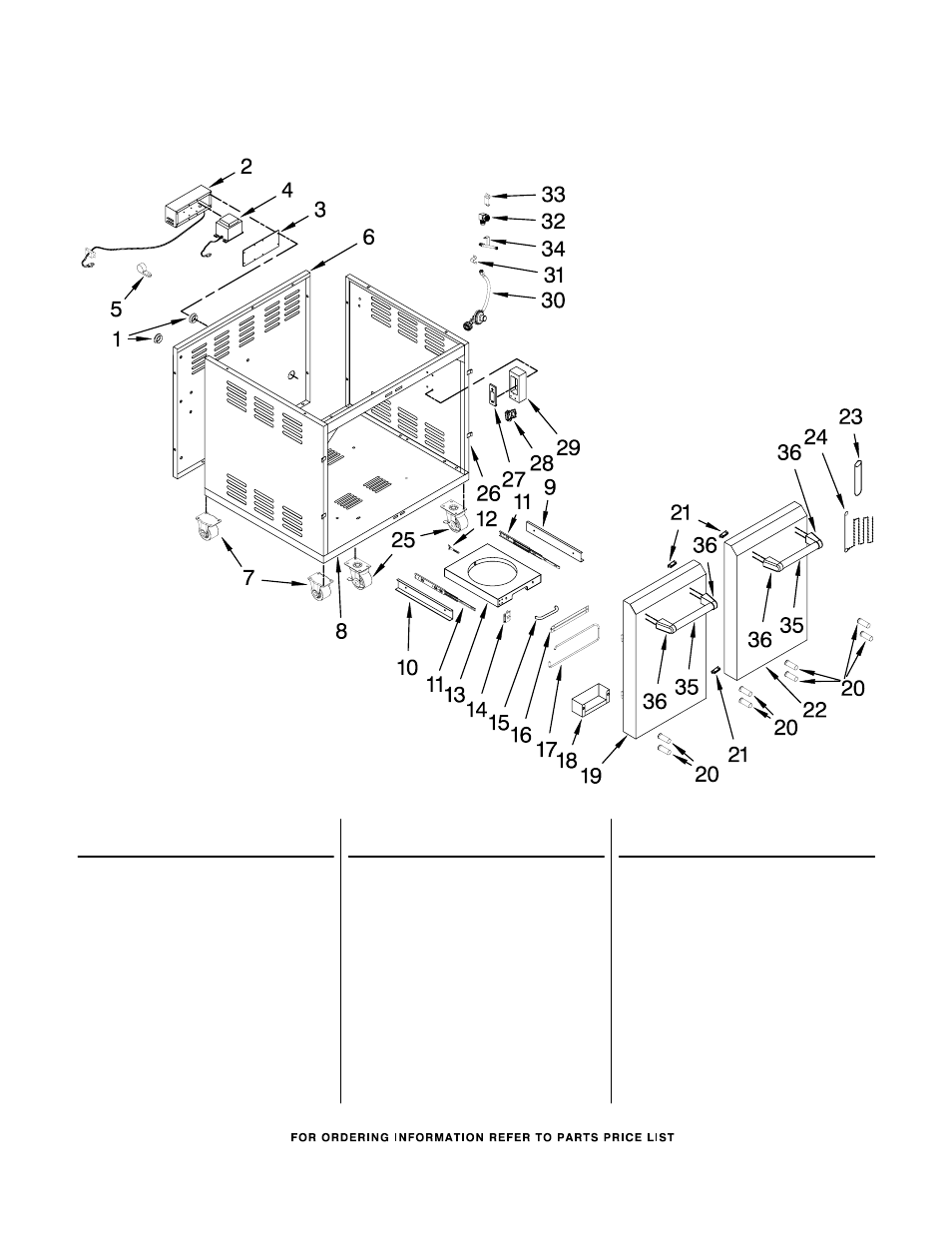

BASE PARTS
3
For Models: KFRS271TSS00
(Stainless Steel)
W10130454
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10128666 Ring, Rubber
2 W10128667 Box,Transformer
3 W10128668 Cover,Transformr
Box
4 W10128669 Transformer
5 W10128670 Clamp, Wire
6 W10128671 Panel, Rear
7 W10128672 Caster
8 W10128673 Panel, Bottom
9 W10128674 Bracket, Tank
Tray (Right)
10 W10128675 Bracket, Tank
Tray (Left)
11 W10128676 Slide, Tank Tray
12 W10128677 Bolt, Tank
13 W10128678 Tray, Tank
14 W10128679 Lock, Tank Tray
15 W10128680 Handle,Tank Tray
16 W10128681 Bracket, Towel
Rack
17 W10128686 Rack, Towel
18 W10128694 Tray, Condiment
19 W10128695 Door, Left
20 W10128696 Hole Plug
21 W10128697 Magnet, Door
22 W10128698 Door, Right
23 W10128703 Bag, Lighting Rod
24 W10128704 Rod, Lighting
25 W10128705 Caster, W/Brake
26 W10128706 Panel, Side Assy
27 W10128711 Cover, Battery
Box
28 W10128715 Box, Battery
29 W10128719 Case, Battery
Box
30 W10128746 Regulator
31 W10128747 Fixture, Manifold
32 W10128748 Connector (Brass)
33 W10128749 Base, Manifold
Fixture
34 W10128750 Commutator,
Manifold
35 W10128661 Handle, Door
36 W10128659 Bracket, Handle
