Decorator Panel Dimensions and Installation.
Three Panel Method
Routed Raised Panel Method
Refrigerator Door
Routed Area
Front Panel ( 3/4" Max.)
Backing Panel ( 1/4")
Trim Frame
Surrounding Door
Refrigerator Door
Front Panel ( 3/4" Max.)
Backing Panel ( 1/4")
Trim Frame
Surrounding Door
Spacer Panel ( 1/16")
12884405 06/08
Spacer
Panel
16-3/4”
(425mm)
43-3/16”
(1097mm)
23”
(584mm)
34-3/4”
(883mm)
1/16”
(2mm)
Front
Panel
17-3/4”
(451mm)
44-1/8”
(1121mm)
24”
(610mm)
35-3/4”
(908mm)
3/4” max
(19mm)
Backing
Panel*
17-3/8”
(441mm)
43-13/16”
(1113mm)
23-9/16”
(599mm)
35-5/16”
(897mm)
1/4”
(6mm)
Panel
Type
* For ease of installation cut backer panel corners at
45° - 1” x 1”
1" (25.4mm)
Typ.
A
B
C
D
Thickness

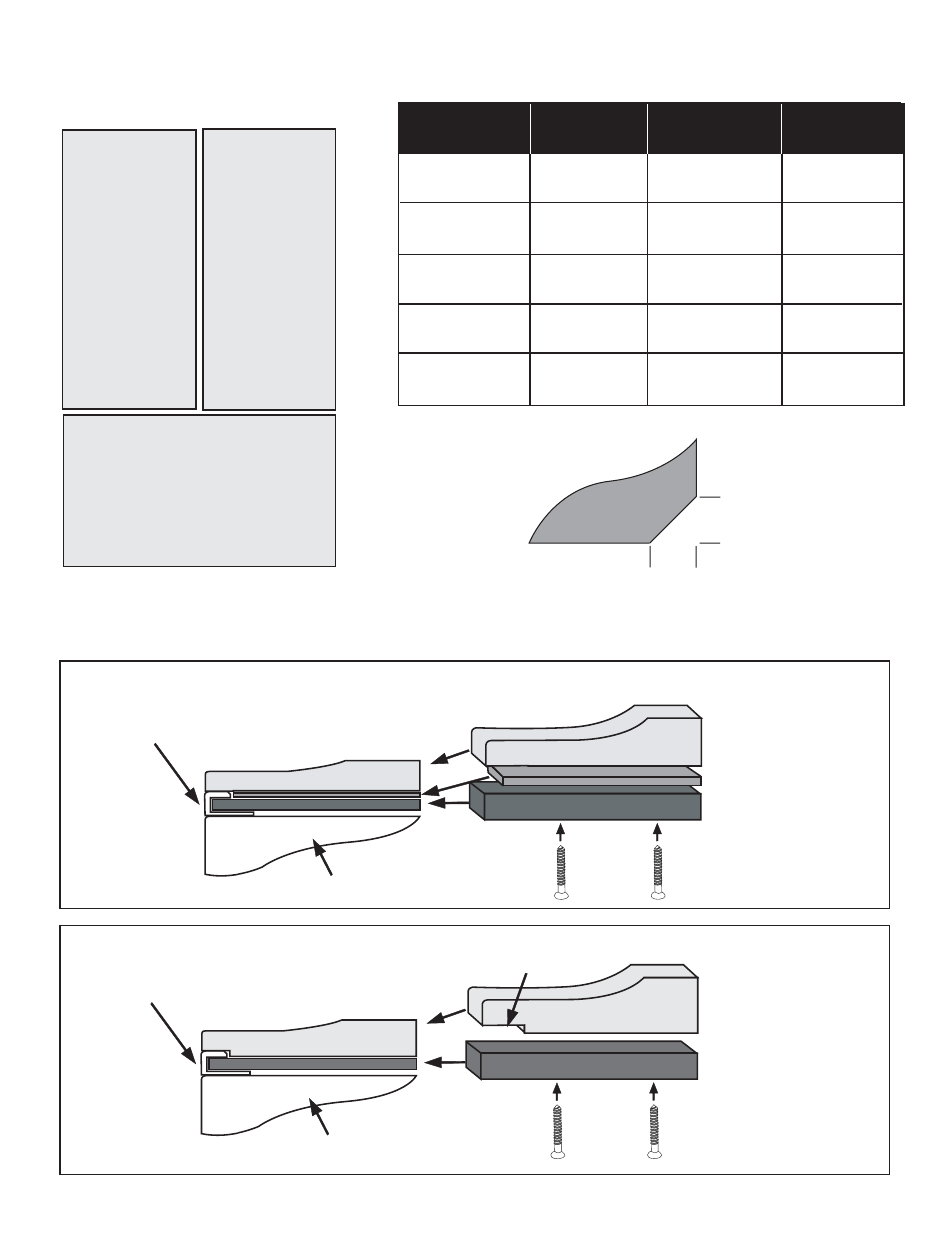

Suggested Panel Assembly Methods
WEIGHT REQUIREMENTS FOR PANEL INSERTS
• Individual refrigerator door panels should not exceed 15 lbs. (7 kg).
• Freezer drawer panel should not exceed 15 lbs. (7 kg).
A
B
C
D
