13
14

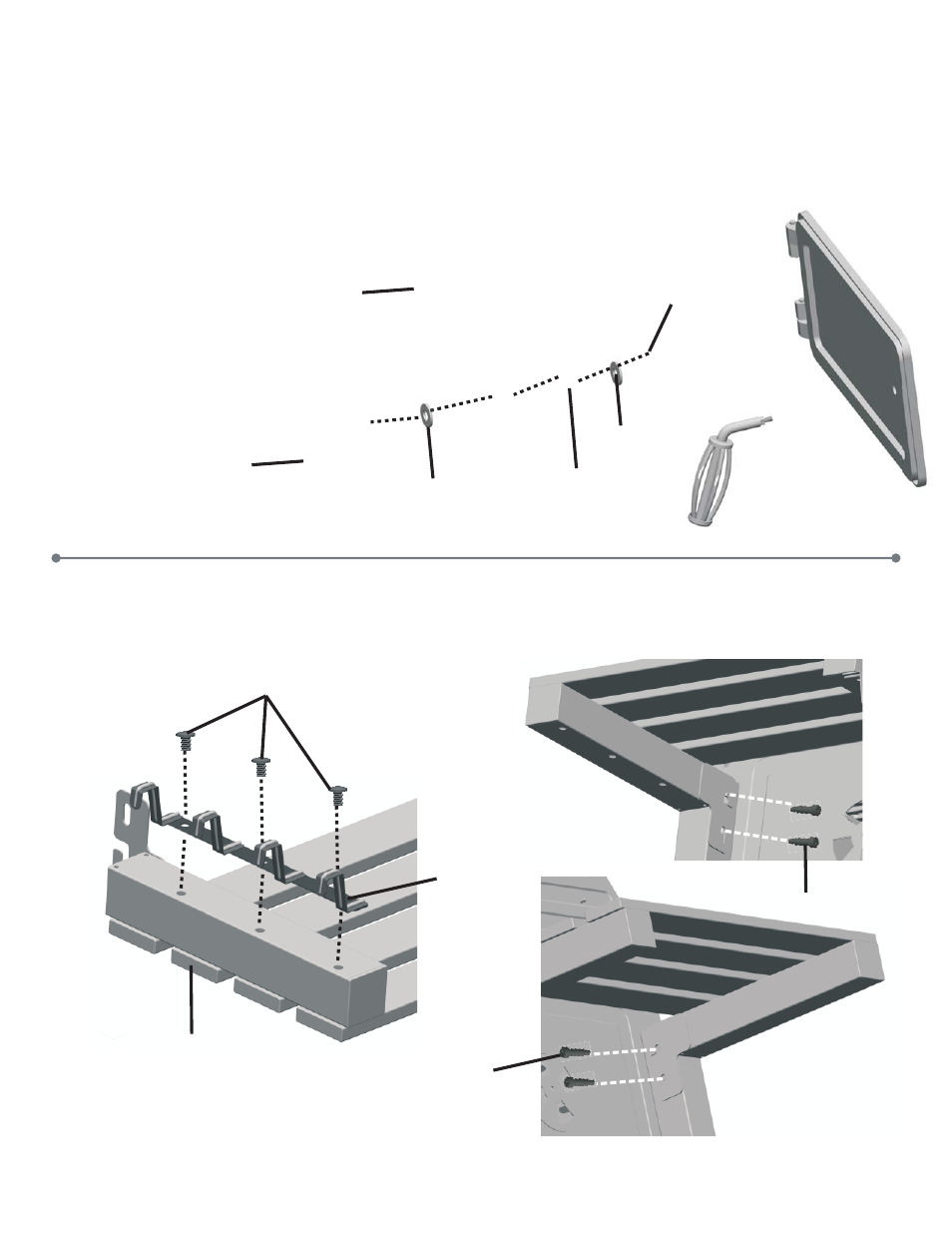

Remove Flat Washer, Door Latch, Lock Washer and 3/8-16 Nut from Handle. Attach Handle to Clean Out Door,
already assembled in Front Panel, by placing a Flat Washer onto the threaded part of Handle. Insert the threaded
end of Handle through hole in Clean Out Door. Place the Door Latch onto the threaded end of Handle. Place
Lock Washer
onto Handle and secure with (1) 3/8-16 Nut.
Page 14
Clean Out Door
Lock Washer
Door Latch
3/8-16 Nut
Handle
Flat Washer
1/4-20x1/2
Screws
Attach the Tool Hooks to the underside of the Side Shelf with Threaded Inserts using (3) 1/4-20x1/2” Screws.
Attach this Side Shelf Assembly to grill Left Legs using (4) 1/4-20x5/8” Shoulder Screws.
1/4-20x1/2” Screws
1/4-20x5/8” Shoulder Screw
Tool Hooks
1/4-20x5/8” Shoulder Screw
Side Shelf W/Threaded Inserts
