11
12

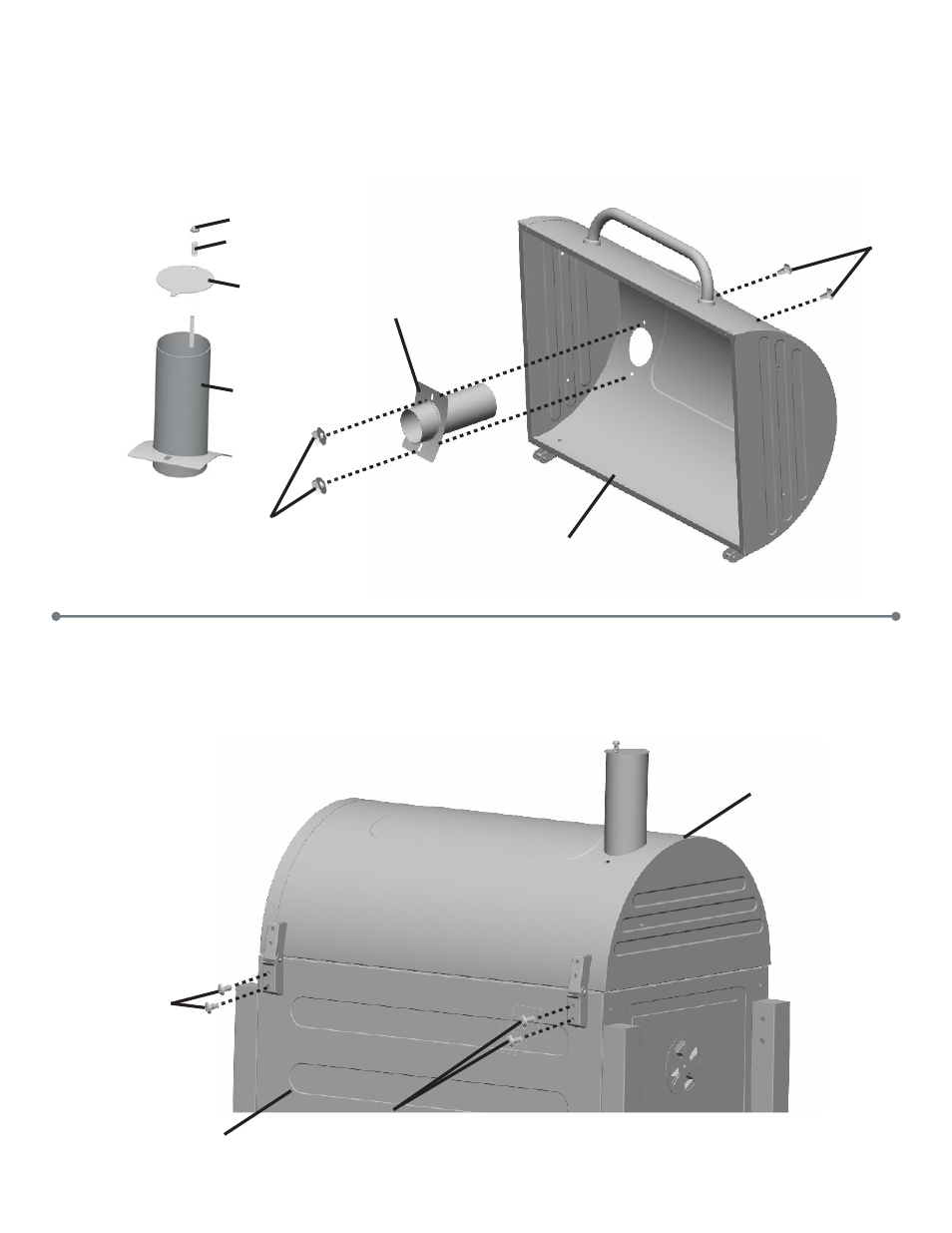

Remove Cap Nut, Spring and Damper from Smoke Stack Body. Insert Smoke Stack Body through hole in Lid. Attach
Smoke Stack Body
to Lid using (2) 1/4-20x1/2” Screws and (2) 1/4-20 Flange Nuts. Reinstall Damper, Spring and
Lock
Nut to Smoke Stack Body.
Page 13
Smoke Stack Body
Place Lid Assembly onto Firebox Assembly while aligning holes in Hinge Assemblies with holes in Firebox Rear
Panel
. Attach (2) Hinges Assemblies to the rear of the Firebox Assembly using (4) 1/4-20x1 5/8” Screws.
Lid Assembly
1/4-20x1 5/8”
Screws
1/4-20x1 5/8”
Screws
Cap Nut
Spring
Damper
Smoke Stack Body
1/4-20 Flange Nuts
Lid
1/4-20x1/2” Screws
Firebox Rear Panel
