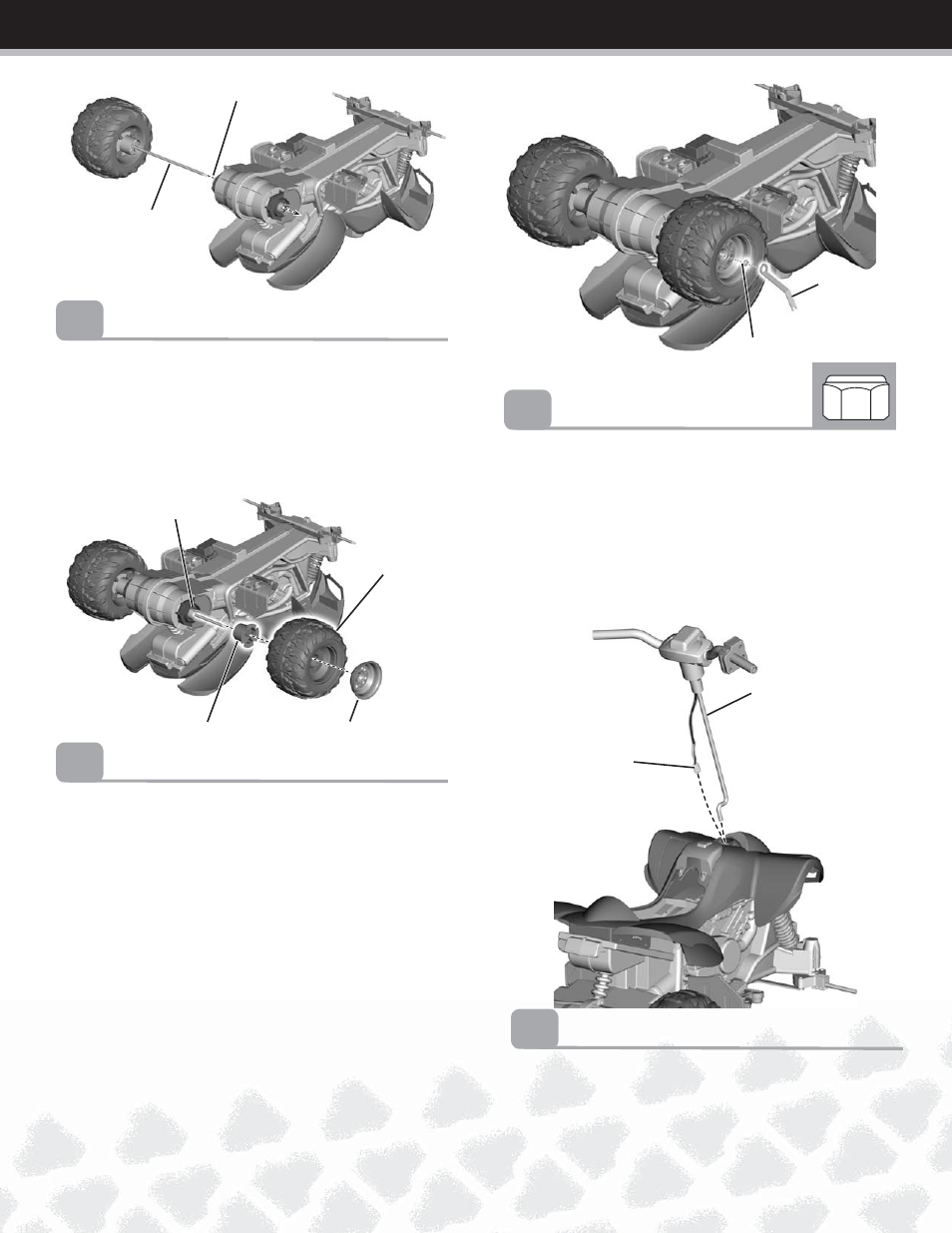

• Position the vehicle upside down.
• Slide the rear axle assembly through the hole in the back end
of the vehicle, as shown. Make sure the rear wheel driver fits
into the pins in the motor assembly inside the vehicle.
3
Rear Axle Assembly
• Slide a rear wheel driver, slotted side out, onto the rear axle.
Make sure the rear wheel driver fits into the pins in the motor
assembly inside the vehicle.
• Locate the other rear wheel. Slide the wheel, flat side first,
onto the rear axle. Make sure the slots on the rear wheel
driver fit onto the pegs on the wheel.
• Slide a wheel cover, indented side out, onto the rear axle.
Rear Wheel
(Pegged Side First)
BOTTOM VIEW
Rear Wheel Driver
(Slotted Side Out)
Wheel Cover
(Indented Side Out)
Motor Assembly
• Fit a 3 /
8
" -16 hex nut onto the end of the rear wheel assembly.
• Tighten the hex nut on of the rear wheel assembly with
the wrench.
Hint: An extra wrench has been provided to hold the hex nut
on the other side of the rear axle while tightening the hex nut
on the other side.
• You may need the help of another adult to hold the vehicle
while you tighten the hex nut.
Motor Assembly
4
Wrench
3 /
8
" -16 Hex Nut
Steering Column
Connector
BACK VIEW
• Turn the vehicle upright.
• Fit the handlebar steering column down through the large
opening in the front end of the vehicle.
5
