Installation and connection – Kathrein MobiSet 2 Digital CAP 600 User Manual
Page 18
18

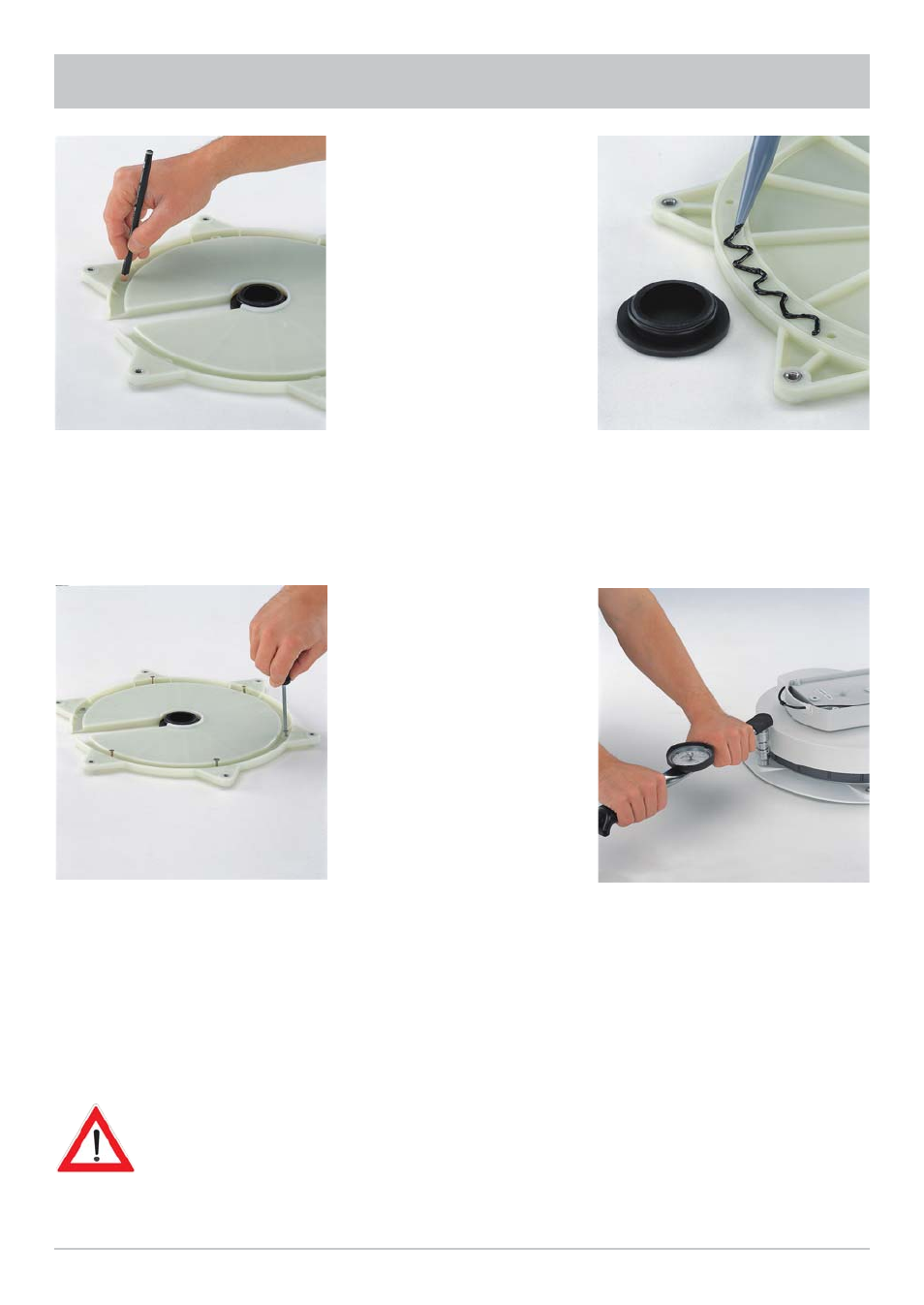

Aligning the mounting plate. Arrow
in the direction of travel. Mark
out the six holes for securing the
mounting plate.
Apply Sikafl ex® 291 adhesive in a
wavy line between the two grooves
and spread it using a spatula or the
like. Avoid skin contact!
Place mounting plate on roof gland
and secure with appropriate screws
(choose screws according to
thickness/structure of roof).
Screw turntable on to mounting
plate using torque wrench.
Caution!
Tightening torque: 6 Nm
Making the electrical connections. Connect the UFS 740 receiver. Connect the turntable to the battery.
The antenna must always be lowered into horizontal position (park position) while
driving!
Maximum driving speed of the vehicle: 130 km/h
INSTALLATION AND CONNECTION
