• When selecting the installation position, take into account the range of movement of the turntable
(see graphics and the “Technical Data” chapter). There must be no structures on the roof that would
obstruct this range of movement (risk of collision). For safety, keep at least the required area free
(for ease of installation and any subsequent dismantling).

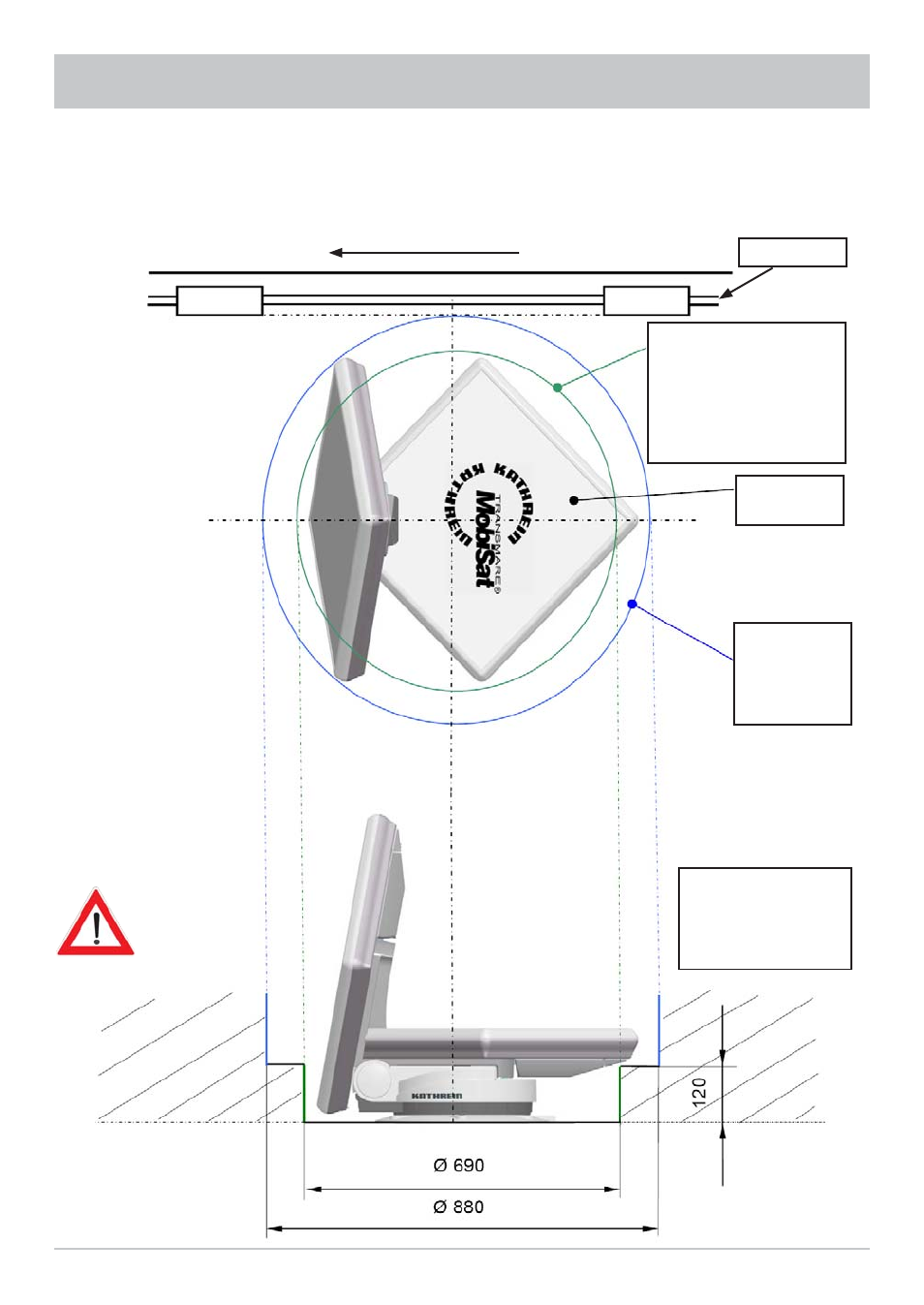

INSTALLATION AND CONNECTION
Roof rail
Area
(min. Ø 690 mm) within
which the turntable with
its height of up to
120 mm can be
attached
Roof attachments
may be mounted
within the hatched
area.
The height of neigh-
bouring attachments
on the roof may lead
to shadowing!
Direction of travel
Recom-
mended clear
space min.
Ø 880 mm
Stand-by
position
