936.2763/C/0703/2.4e/ZWT

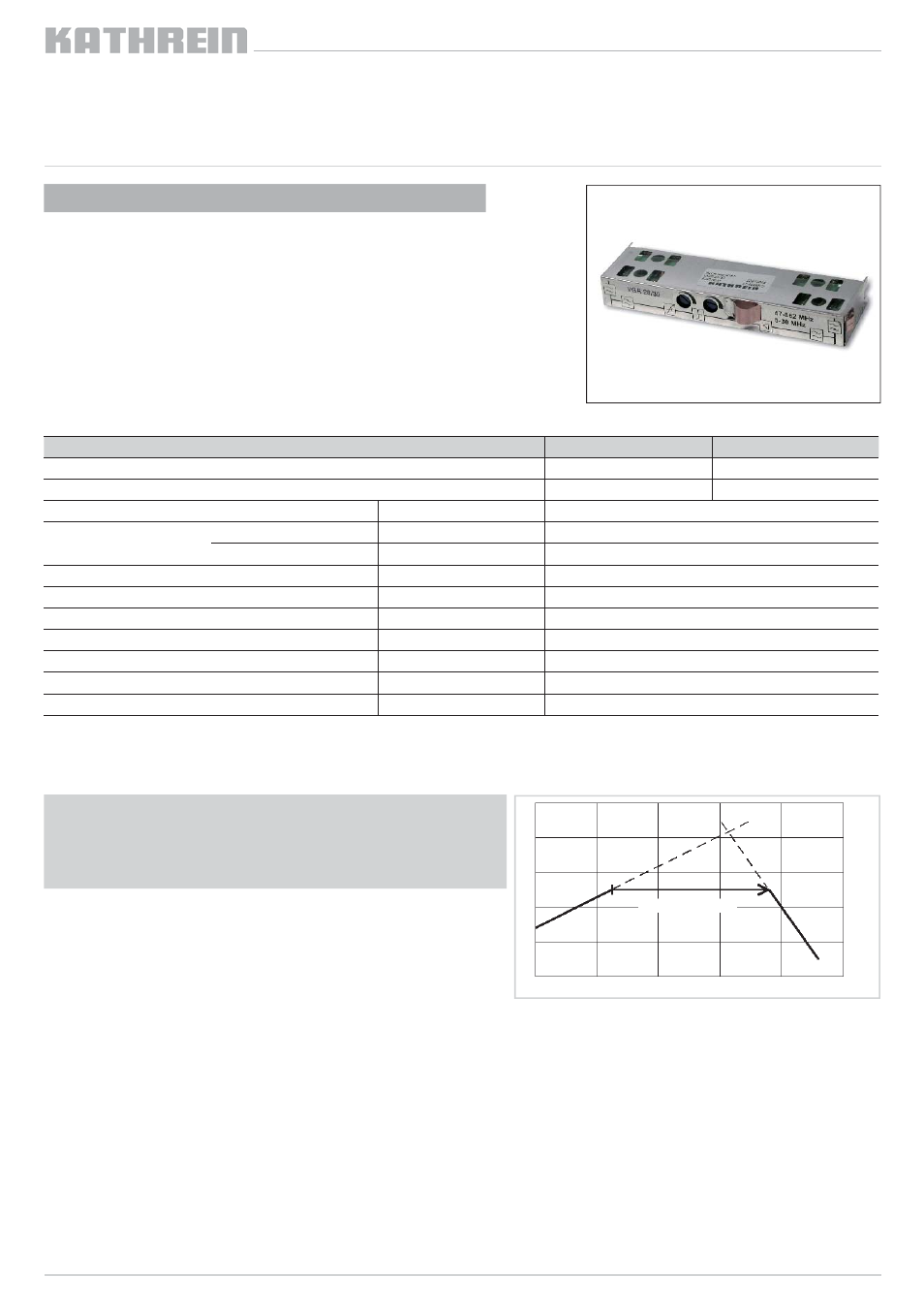

Return path amplifi er
• Please order separately
• Variable equaliser and variable attenuator
(delivery condition: max. attenuation) on the output
Type VGR 28/30 VGR 28/65
Order no. 20910008 20910009
Frequency range 5-30 5-65
Gain dB 28
Max. output level 60-dB-IMA3 dBµV 118
60-dB-IMA2 dBµV 112
Input level density (CINR: 55 dB) dBµV/Hz Type -6
Dynamic range (input level density) dB Type 19
Noise fi gure dB 5
Gain setting (on the output) 1) dB 0-20
Equalisation setting (on the output) dB 0-20
Dimensions (W x H x D) mm 130 x 17 x 38
Packing unit/weight pc./kg 1 (10)/0.08
1) In the delivery status the adjustable attenuator is set to max. attenuation.
Note: The purpose of this graphic is to explain the terms "input level
density" and "dynamic range".
It is not possible to derive any electrical datafrom the graphic.
See also: EN 60728-3 (point 4.7)
Dynamic range (dB)
Input level density (dBµV/Hz)
CINR (dB)
