Operation instruments – KTM 950 SUPERMOTO User Manual
Page 17

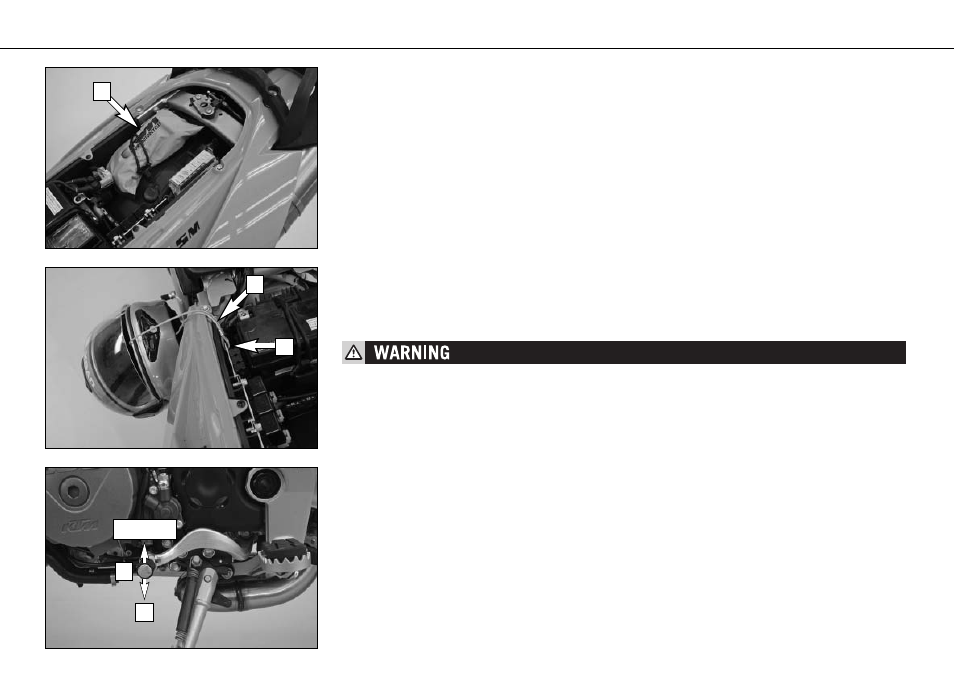

Tool set
The tool set
[1] is located in the storage compartment under the seat.
Helmet lock
The steel rope
[2] in the tool bag can be used to secure a helmet.
To secure, remove the seat, run the rope through the helmet, attach both ends to the hook
[3] and mount the seat.
THE HELMET LOCK IS PROVIDED TO SECURE THE HELMET TO THE MOTORCYCLE WHEN PARKED.
DO NOT ATTACH THE HELMET OR OTHER OBJECTS TO THE STEEL ROPE WHILE DRIVING. YOU
CAN EASILY LOSE CONTROL OF THE MOTORCYCLE.
Shift lever
The shift lever is mounted on the left side of the engine. The position of the gears is shown
in the illustration. Neutral, or the idle speed, is located between first and second gear.
OPERATION INSTRUMENTS
»
16
1
2,3,4,5,6
N
2
3
1
