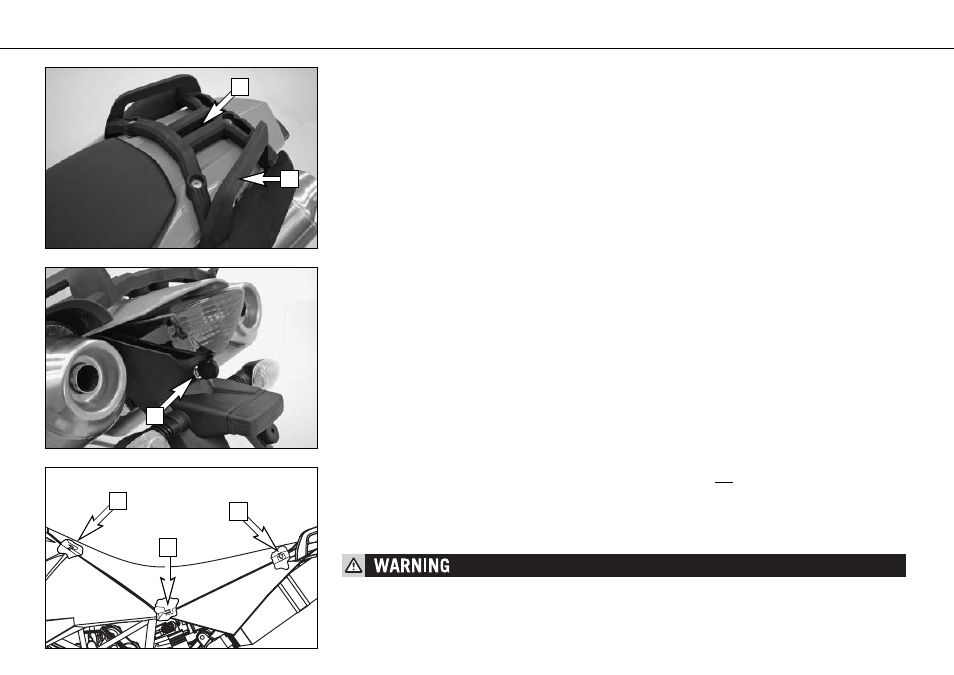

Seat lock, removing the seat

The seat lock

[3] can be locked with the ignition key.

To remove the seat, insert the ignition key and turn 45° in a counterclockwise direction. Lift

the seat in the back, pull back and lift off.

Baggage carrier, grips

The baggage carrier

[1] can carry a load of up to 8 kg.

The passenger can hold on to the grips

[2] during the ride.

To mount the seat, attach the seat to the oval head screw

[4], lower the seat in the back

while sliding it towards the front. Both noses

[5] should fit into the frame. Insert the catch

bolts

[6] in the lock housing and push the seat down in the back until you hear the catch

bolts snap into place.

Check whether the seat is correctly mounted.

IF NOT CORRECTLY MOUNTED, THE SEAT CAN SLIP WHILE YOU ARE DRIVING AND CAUSE YOU

TO LOSE CONTROL OF YOUR MOTORCYCLE.
