Installa
tion
Separates Mounting

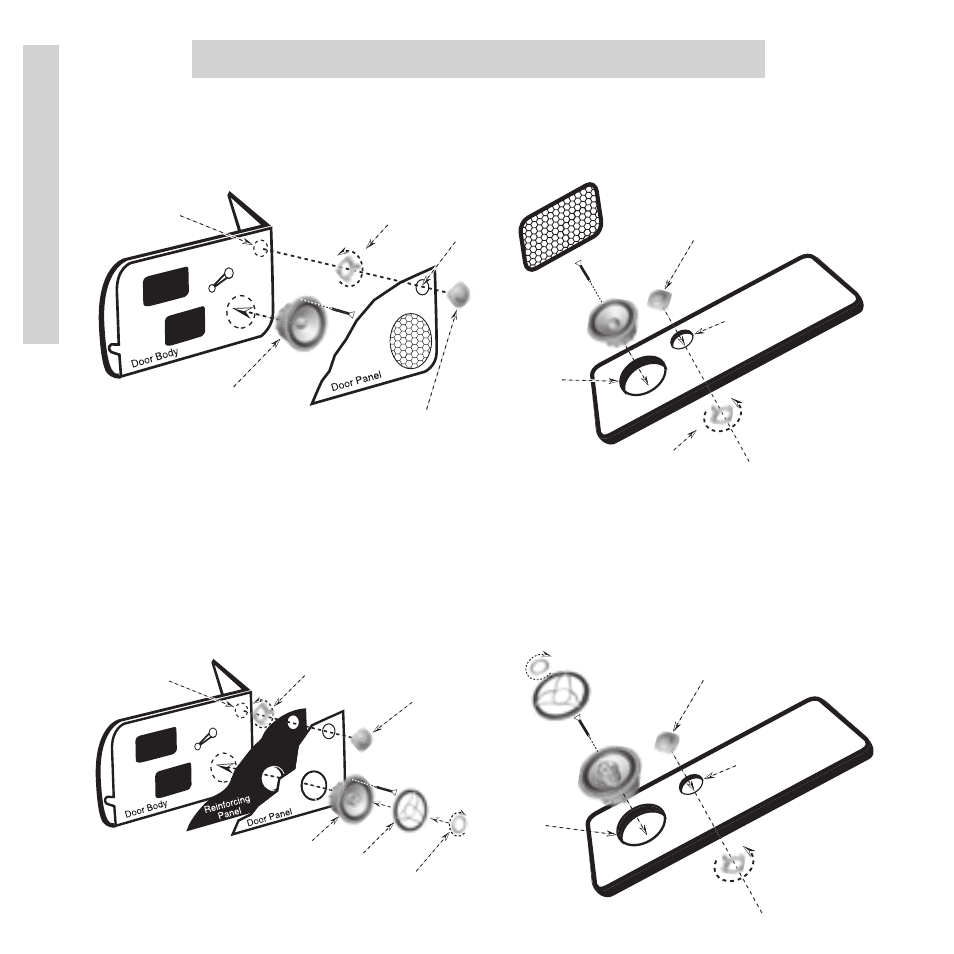

If using the Separates mounting method for the tweeter and midrange you can mount
the midrange under a factory speaker panel for protection and mount the tweeter
separately.
Mount midrange with hardware
Place grill over driver
Screw on grill mount ring (blue)
Secure with tweeter mount nut
Place tweeter into cutout
2.50 inch clearance hole
Mount midrange with hardware
Secure with tweeter mount nut
Place tweeter into cutout
1.95 inch hole
2.50 inch clearance hole
Mount midrange
with hardware
Factory
Mounting
Location
Fa
ct
or
y S
pe
ak
er
Co
ve
r
Sid
e P
an
el
or
Re
ar
D
ec
k
Place tweeter into cutout
1.95 inch hole
Secure with tweeter mount nut
If custom mounting locations are desired for your drivers, check for interference from
other mechanical systems in the vehicle. Watch for window mechanisms, hinges, trunk
springs, wire harnesses, and anything that would be affected by the installation of these
drivers. If metal must be cut to mount the speakers, try to avoid structural metal and
braces. Once a location is chosen, cut the appropriate sized holes for the drivers.
Mount midrange
with hardware
Custom cut
mounting hole
Sid
e P
an
el
or
Re
ar
D
ec
k
Place tweeter into cutout
1.95 inch hole
