12
SS Component Systems
Installa
tion

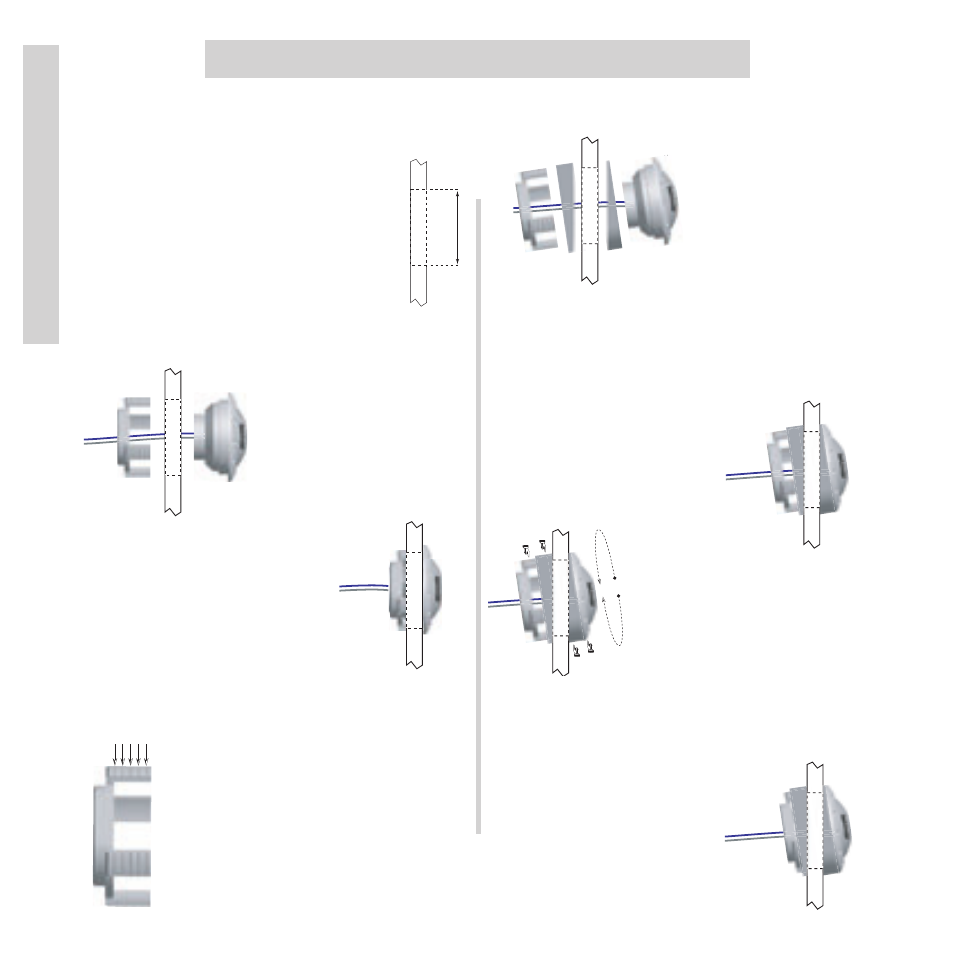

Tweeter Mounting
Your tweeter can be flush mounted into
your panel with or without the 15° angle
rings.
Cut a 1-15/16” (4.9 cm) hole in
your panel for the tweeter. Be
sure there is clearance behind
the panel for the tweeter and
wiring.
WITHOUT ANGLE RINGS
Place the tweeter into
the panel and secure
by tightening (clock-
wise) the Tweeter
Mounting Nut.
This is what you should
end up with after securing
the Tweeter to the panel
using the Mounting Nut.
If necessary, the legs of the Tweeter
Mounting Nut can be cut to fit
thicker panels. Trim each leg at
the score line. Remove only 1
section from each leg at a time
until desired length is achieved.
WITH ANGLE RINGS
Place the
tweeter through the
Front Angle Ring
and then into the
panel.
Next place the
Back Angle Ring over the Tweeter and line
up the narrow part of the Back Angle Ring
with the wide part of the Front Angle Ring
for proper operation.
Attach the Tweeter
Mounting Nut (clockwise)
but do not tighten
completely.
Rotate all the parts in
unison until the tweeter is
angled in the desired
direction.
Secure the assembly by tightening
(clockwise) the Tweeter Mounting Nut.
This is what you should
end up with after securing
the Tweeter to the panel
using the Mounting Nut.
1-15/16" (4.9 cm) Hole
Panel
Panel
Tweeter
Mounting
Nut
Tweeter
Wire
Panel
Tweeter
Mounting
Nut Tweeter
Wire
Trim Here
Panel
Tweeter
Mounting
Nut
Tweeter
Wire
Front
Angle
Ring
Back
Angle
Ring
Panel
Tweeter
Mounting
Nut
Tweeter
Wire
Front
Angle
Ring
Back
Angle
Ring
Panel
Tweeter
Mounting
Nut
Tweeter
Wire
Front
Angle
Ring
Back
Angle
Ring
