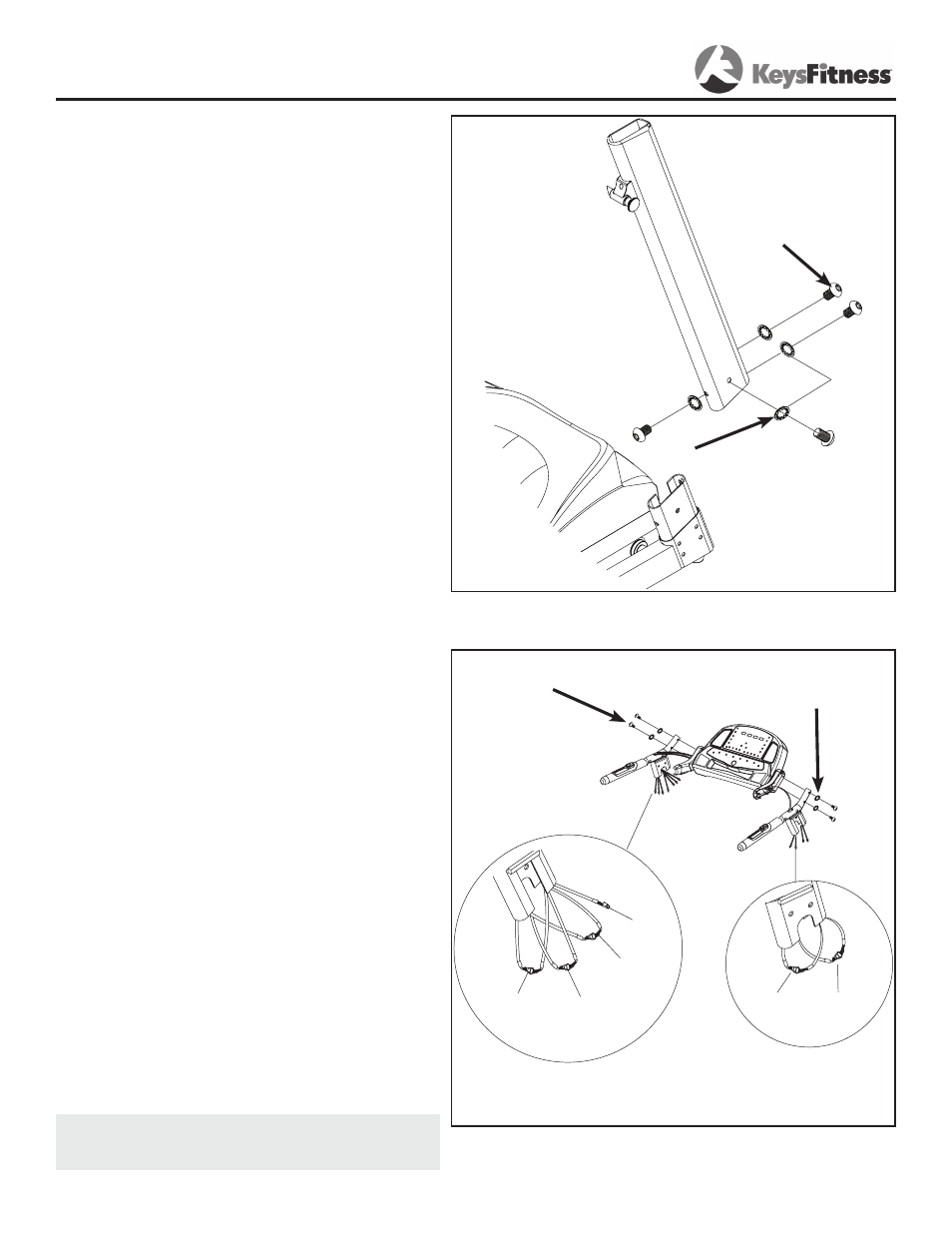

Figure 3: Right Upright Installation
3. Slide the right upright onto the base
frame. Secure the right upright to the
base frame by using four bolts M10x25
and four washers #10.
Assembly
Bolt M10x25
Washer #10
Figure 4: Console Assembly
4. Feed the wires coming out of left side
of the console through the hole located on
the tube of the left handlebar. Connect the
amplifier wire coming from the handlebar
to the amplifier wire coming from the con-
sole. Connect the EKG harness and the
toggle harness coming from the handlebar
to the EKG harness and the toggle harness
coming from the console. Secure the left
handlebar to console using two bolts M8x52
and two washers #8.
Feed the wires coming out of the right side
of the console through the hole located on
the tube of the right handlebar. Connect
the EKG harness and the toggle harness
coming from the handlebar to the EKG har-
ness and the toggle harness coming from
the console. Secure the right handlebar
to console using two bolts M8x52 and two
washers #8.
EKG
Harness
Toggle
Harness
Amplifying
Wire
Console
Harness
EKG
Harness
Toggle
Harness
Bolt M8x52
Washer #8
NOTE: Make sure not to pinch or screw
through any wires when securing the left
handlebar.
