6
Assembly
1. Remove top cover of box, and break
the sides of the box to create a level
assembly surface. After opening the box,
remove any packing material from the
treadmill. Carefully cut the strap sur-
rounding the treadmill, only while the
treadmill is laying flat.
2. Locate the left upright. Connect the
console harness together. One side of
harness is located near the motor cover
on the bottom left side. The other end is
located inside the left upright.
Connect the amplifier harness together.
One side of harness is located near the
motor cover on the bottom left side. The
other end is located inside the left upright.
Slide the left upright onto the base frame.
Secure the left upright to the base frame
by using four bolts M10x25 and four wash-
ers #10.

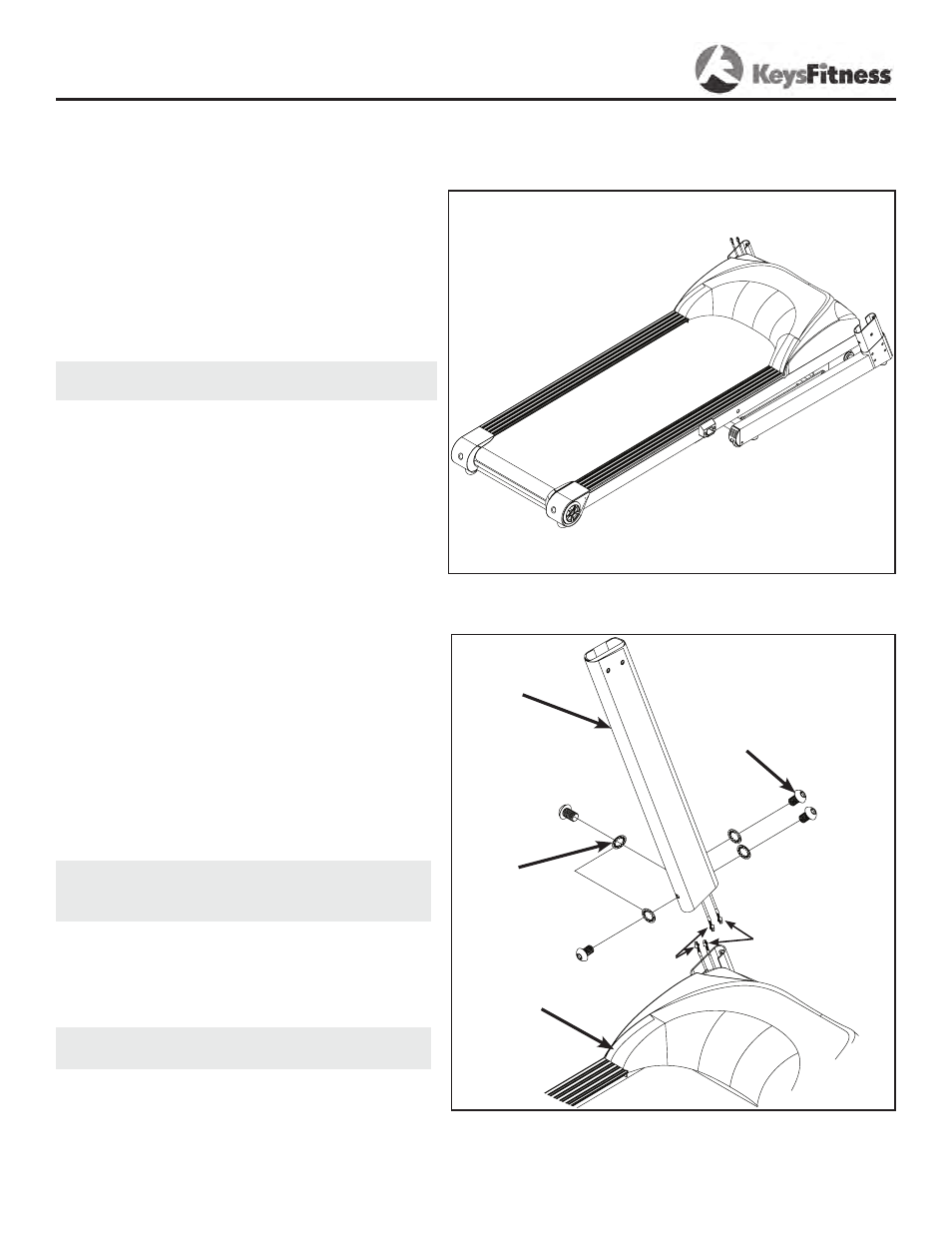

Figure 2: Left Upright Installation
Assembly requires the included Allen wrench and Phillips screwdriver. Leave the unit on the
original packing material to assemble all parts.
Do not plug in the power cord until all assembly steps are completed.
Figure 1: Unpacking Treadmill
Left Upright
Bolt M10x25
Washer
#10
Base Frame
Amplifier
Harness
Note: Do not tighten hardware until step
5 has been completed.
Do not remove unit from box until it
has been fully assembled.
Note: Make sure that the console harness
and amplifier harness are inside of the
upright and not being pinched.
Console
Harness
