6

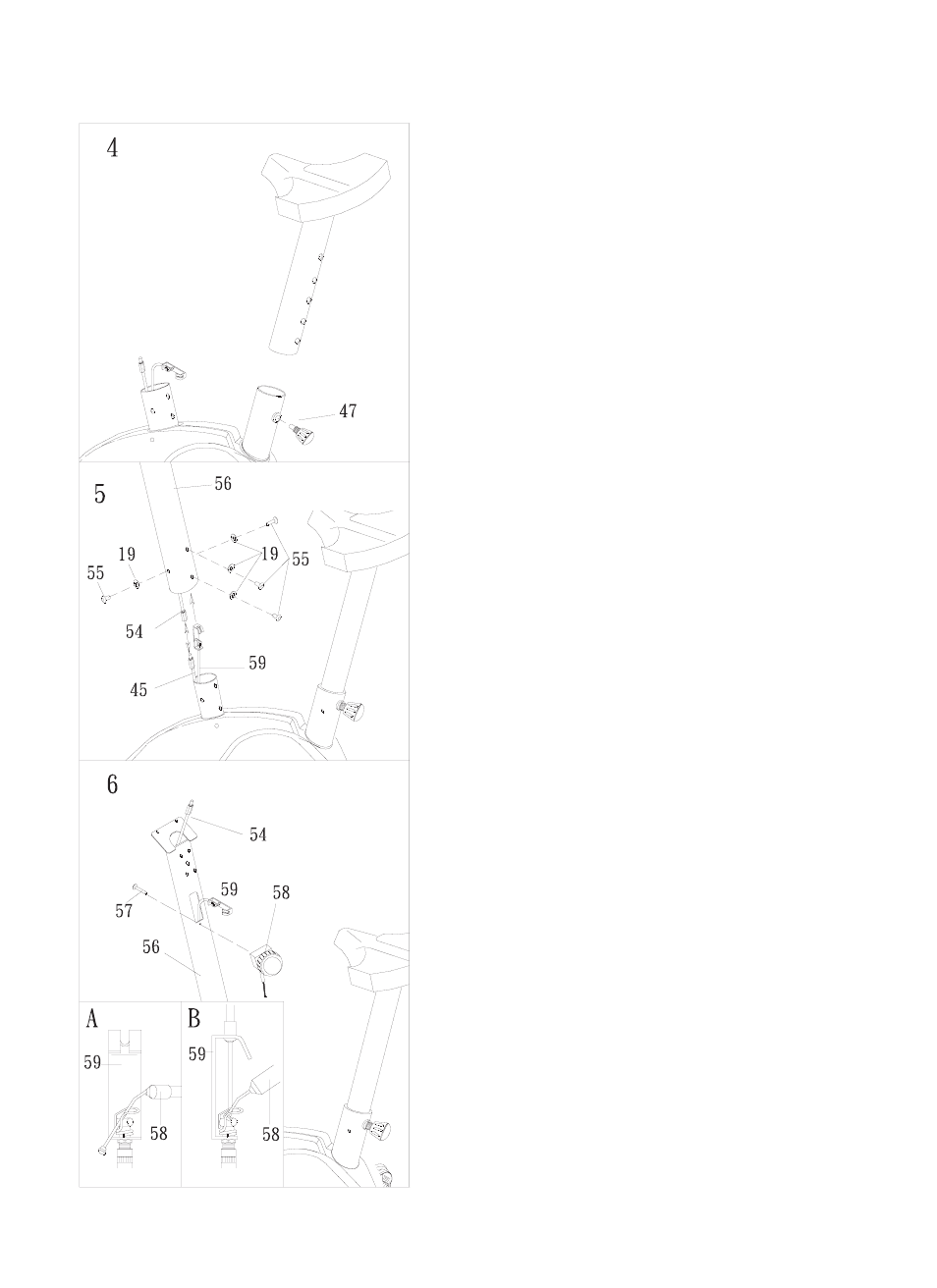

4) Put the seat post (49) through the plastic bellows
(70) (optional). Take off the seat knob (47) and insert
the seat post into the main frame.
Fix at the desired height.
5) Insert the sensor line’s (54) female end into the top
of the handlebar post (56) and connect it to the end
(45) on the mainframe.
Pull the tension cable (59) slowly and insert it up into
the handlebar post (59)
Fix the handlebar post by screws and washers (55,19).
6) Get the tension cable (59) out of the handlebar
post’s hole and connect it to the tension controller (58)
as in step 1-3:
Step 1: Put the cable end into the spring hook.
Step 2: Pull the knob and force the short cable
into the gap of the bracket.
Step 3: Insert the knob into the handlebar post
and fix by screw attached.
Tension is increased by turning the knob clockwise and
vice versa.
