525 EXC 2006

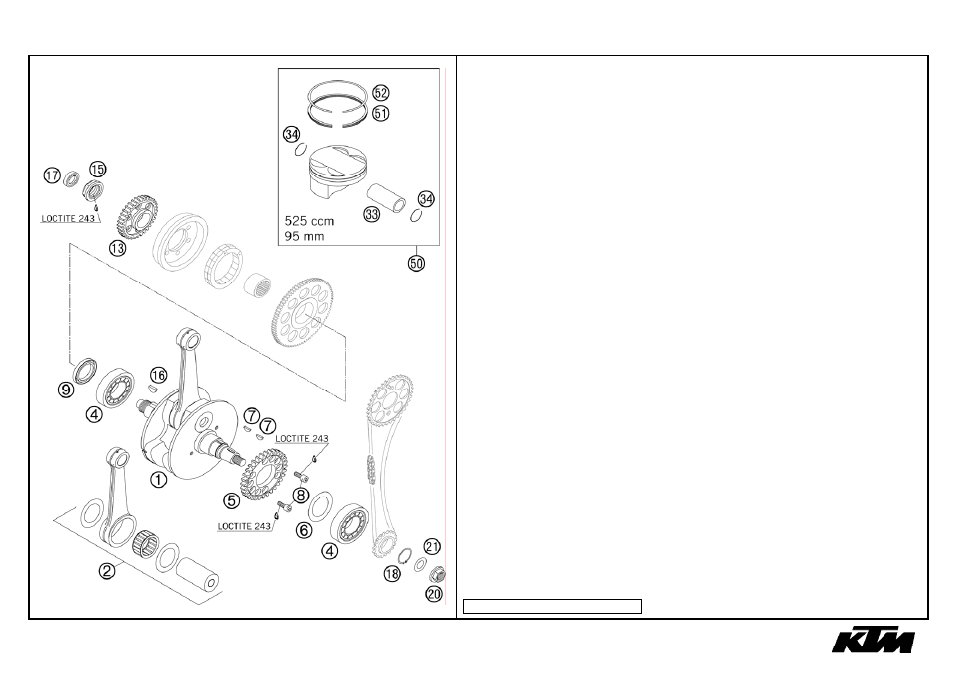

FIG PART NUMBER DESCRIPTION QTY
1* 59030018500 CRANKSHAFT CPL. 520 RAC. 2006 1
STROKE 72MM, WITHOUT WASHER
2 59030015044 CON.ROD REP.SET 250/520 RAC.00 1
WITH WASHER
4 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 2
5 59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT 1
6 56030081000 THRUST WASHER 30,5X45X0,10 x
6 56030081100 THRUST WASHER 30,7X47X0,15 x
6 56030081200 THRUST WASHER 30,5X45X0,30 x
7 0888030050 WOODRUFF KEY DIN6888-3X5X13 2
8 0984060162 AH SCREW DIN7984-M 6X16 2
9 0760304772 SH.SEAL RING 30X47X7 BSL VITON 1
13 59032000033 PRIMARY GEAR 33-T 1
15 59030029100 HH NUR M20X1,5 WS=27 LEFT 1
16 6946005 WOODRUFF KEY 5X6,5 HARDED 1
17 0760142460 SHAFT SEAL RING 14X24X6 B 1
18 0471250120 CIRCLIP DIN0471-25X1,2 1
20 49030021000 COLLAR NUT M12X1 R/S 1
21 0137120000 SPRING WASHER DIN0137-B12 1
33 59030033000 PISTON PIN BOLT 20X15,8/12X50 1
34 59030074000 CIRCLIP C20X1,5 2
50 59030007000 I PISTON I 95MM CPL. FORGED 2000 1
50 59030007000 II PISTON II 95MM CPL.FORGED 2000 1
51 58030631000 OIL SCRAPER RING 95MM 1
52 59030032000 RECTANGULAR RING 95/87,2X1,25 1
065903004 / C065903011 * NEW PART X AS REQUIRED
7
CRANKSHAFT, PISTON
