Swingarm, monoshock – KTM 65 SX 2007 User Manual
Page 10
65 SX 2007
FIG PART
NUMBER
DESCRIPTION
QTY
1 46104030044
SWINGARM CPL. 65 SX 2002
1
2* 03187C03
MONOSHOCK 65SX 2007
1
3 54603097000
NEEDLE BUSH HK 2016
2
4 46004030070
SPACER BUSHING 20X26X30X9,7
4
6 46004030071
BUSHING BOX 12X20X36,5
2
7 0770160021
O-RING 16,00X2,00 VITON
4
10 46104066000
CHAIN SLID. GUARD FRO. 65SX 02
1
11 46104066050
BUSH FOR CHAIN SLIDER GUARD 02
1
12 0010050103
SPECIAL SCREW M 5,0X10
2
13 0009050103
SPECIAL SCREW M 5,0X10
2
14 46007066000
CHAIN GUIDE REAR 60/65 '98
1
15 0015060403
HH COLLAR SCREW M 6X40 WS=8
2
16 56509064100
SELF LOCKING NUT M6 10.9
2
21 0931100453
HH SCREW DIN0931-M10X45
2
22 0125100003
WASHER DIN0125-A10,5
2
23 54310086100
SELF LOCKING NUT M10 CU WS=14
2
24 46012024000
HOOK WRENCH FOR SHOCK ABSORBER
1
25 46004037000
SWINGARM BOLT 201MM M12X1
1
26 0125120003
FLAT WASHER DIN0125-A13
2
28 0917120103
NUT DIN917-M12X1
2
30 46010083000
CHAIN ADJUSTER 60/65 '98
2
31 0933060353
HH SCREW DIN0933-M 6X35
2
32 0934060003
HEXAGON NUT DIN0934-M 6
2
35 54611076100
RETAIN.CLAMP FOR BRAKE HOSE'96
2
064610400 / C074610400
* NEW PART
X AS REQUIRED
8

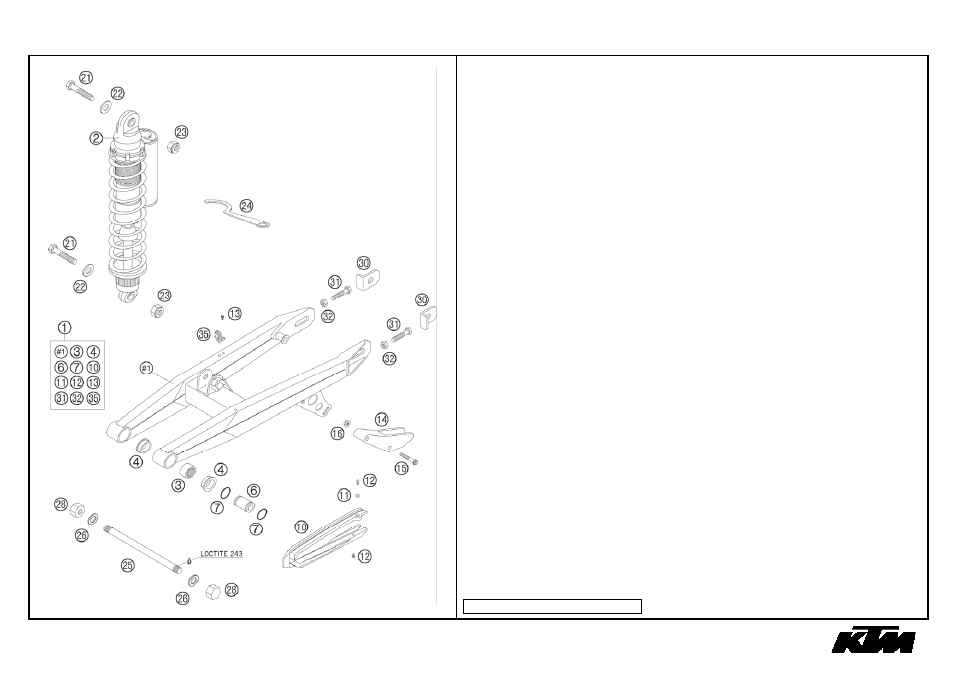

SWINGARM, MONOSHOCK
