Keys Fitness 3350HR - Manual (Page 18)

1. 05-0020-Extrusion side board deluxe/left
2. 05-0019-Extrusion side board deluxe/right
3. 04-0012-Belt walk spliced 18 x 113” P33
4. 09-0012-Front roller assembly
5. 09-0013-Rear roller assembly
6. 03-0012-Walkboard
7. ??-????-End cap
8. 12-0022-Actuator 400lb Maytech
9. 06-0132-Motor base pan
10. 06-0080-Small motor fan
11. 12-0032-Motor MC#2917
12. 04-0004-Poly V belt 190J8
13. 06-0131-Motor cover w/wings
14. 10-0020-Foam grips
15. & 16.
EC1350- 24-0108 Console assembly
15. & 16. EC3350HR- ??-????-Console assembly
17. EC1350- 08-0050-Motor controller
17. EC3350HR- 08-0050-Motor controller
Page 18
Parts & Diagrams

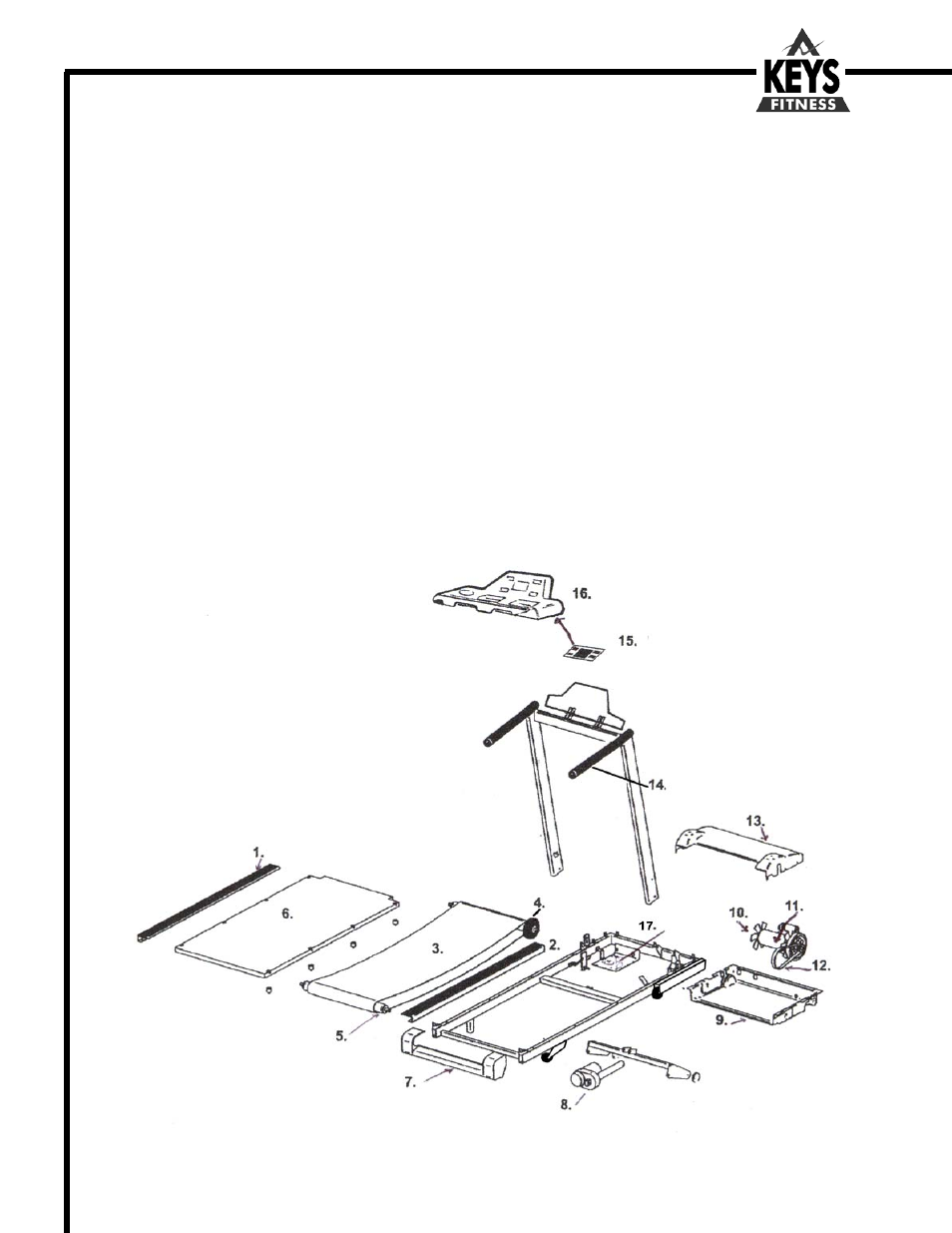

• Please review the following drawing below to familiarize yourself with the listed parts. This manual
covers several treadmills, so the one pictured below may not be identical to your particular model.
