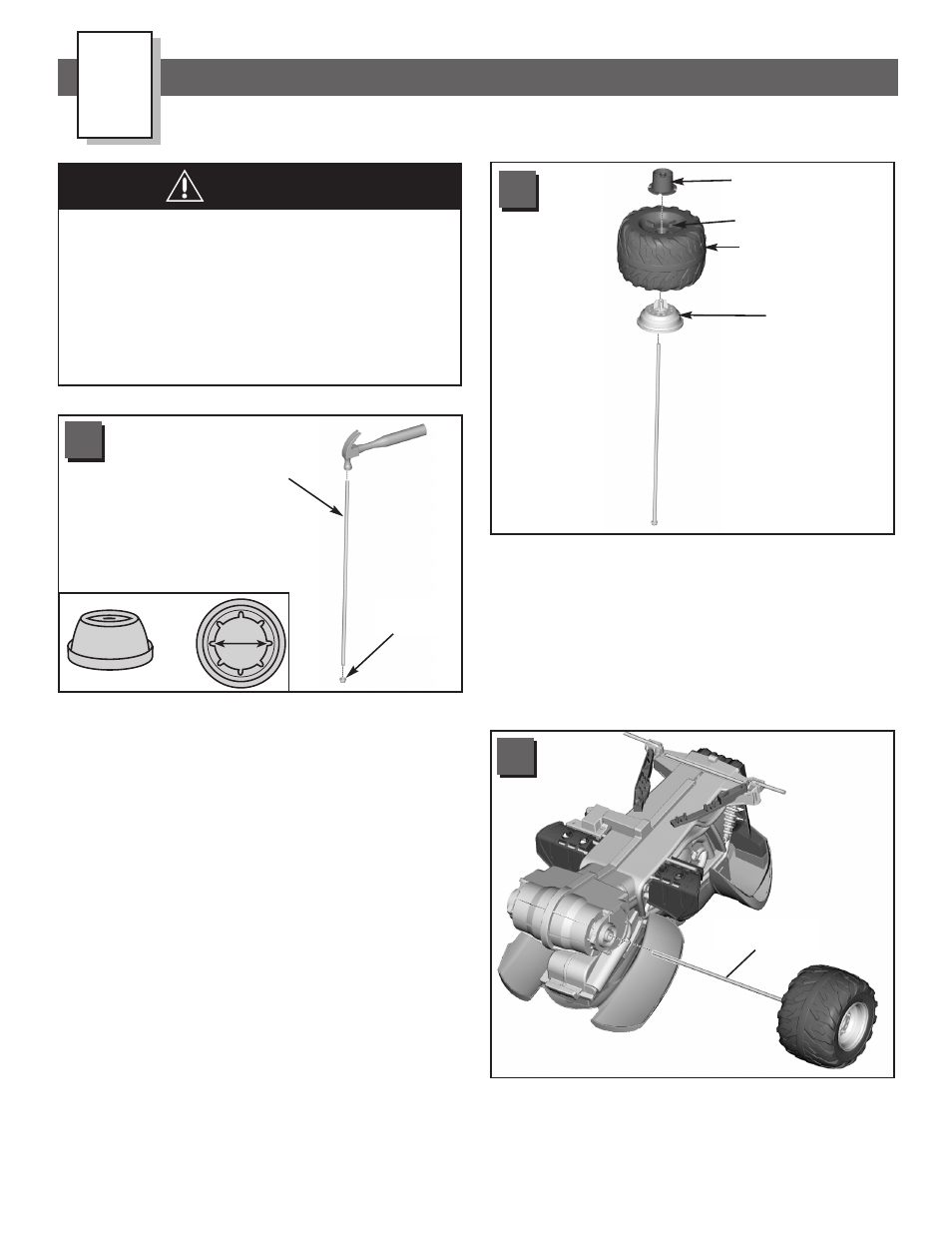

• Fit a .437 cap nut onto one end of the rear axle.
• Tap the other end of the rear axle with a hammer to
secure the cap nut on the end of the rear axle.
Hint: You may want to position the cap nut on a scrap
block of wood to protect the assembly surface.
Rear Axle
.437
Cap Nut
7
1
• Slide a hubcap, indented side down, onto the rear axle.
• Locate a rear wheel. The rear wheels are wider than the
front wheels.
• Slide a rear wheel onto the rear axle. Make sure the
ribs on the wheel face up.
• Slide a rear wheel driver, ring side down, onto the rear
axle. Fit the grooves on the rear wheel driver onto the
ribs on the rear wheel.
Rib Up
Rear Wheel
Rear Wheel Driver
(Ring Side Down)
Hubcap
(Indented Side
Down)
2
• Position the vehicle upside-down.
• Slide the rear axle assembly through the hole in the
back end of the vehicle body. Make sure the rear wheel
driver fits onto the pins in the motor assembly inside
the vehicle.
3
.437"
WARNING
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the battery,
or help in assembly of the vehicle.
Rear Axle
Assembly
Assembly
