22 | English

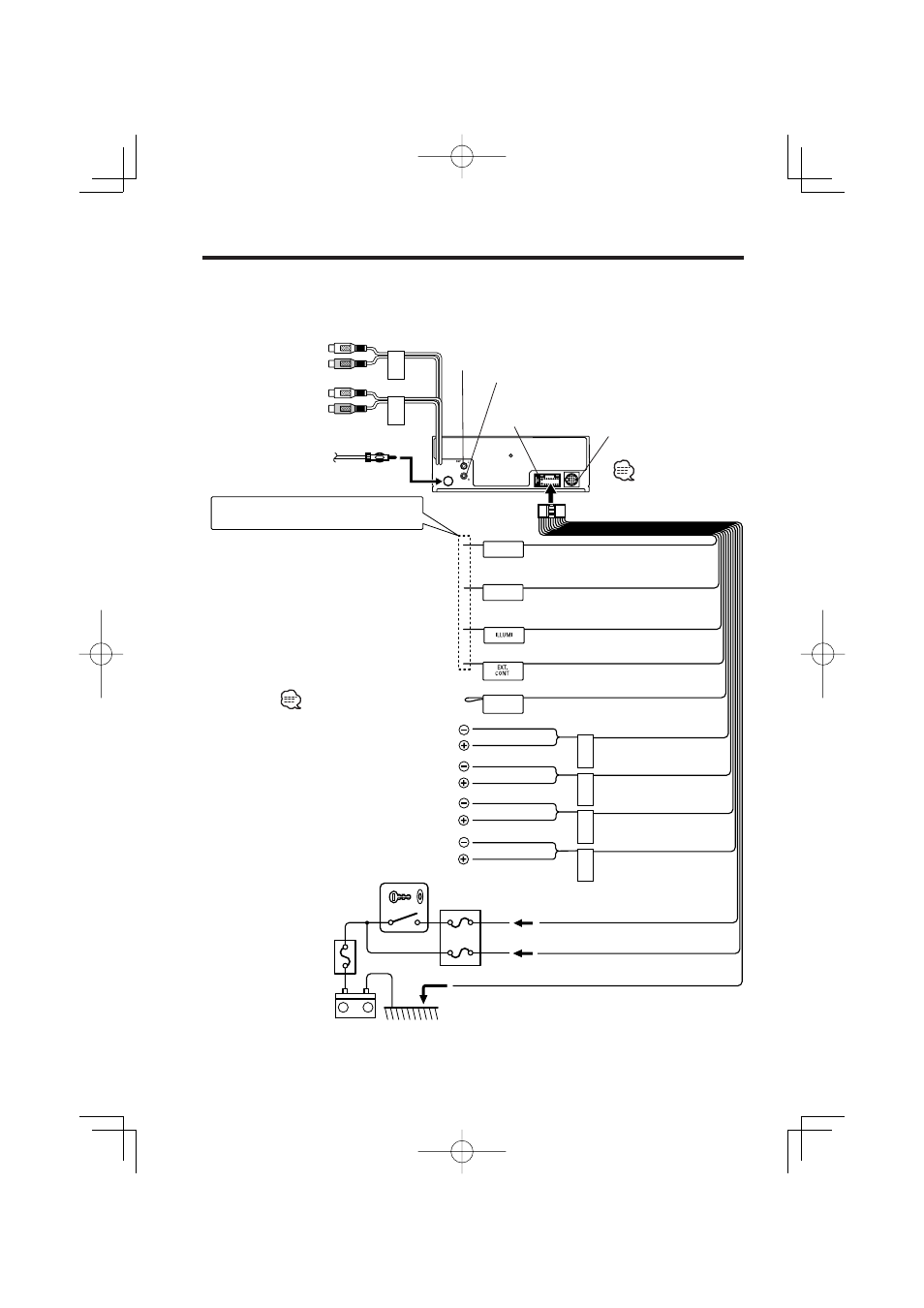

Connecting Wires to Terminals
ANT CONT
P.CONT
MUTE
FRONT
L
FRONT
R
REAR
L
REAR
R
– +
FRONT
REAR
FM/AM antenna input
Subwoofer left output (White)
Subwoofer right output (Red)
Fuse (10A)
Wiring harness
(Accessory
1)
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the
wire come out from the tab.
Front left output (White)
Front right output (Red)
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
When using the optional power amplifier, connect to its
power control terminal.
To car light control switch
Depending on what antenna you are using, connect either
to the control terminal of the motor antenna, or to the
power terminal for the booster amplifier of the film-type
antenna.
External amplifier control wire
(Pink / Black)
To "EXT.AMP.CONT." terminal of the amplifier having
the external amp control function.
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
To connect these leads,
refer to the relevant
instruction manuals.
To KENWOOD disc changer/
LX BUS Television/
External optional accessory
Rear left output (White)
Rear right output (Red)
Not Used (Brown)
Do not let the wire come out from
the tab.
