6

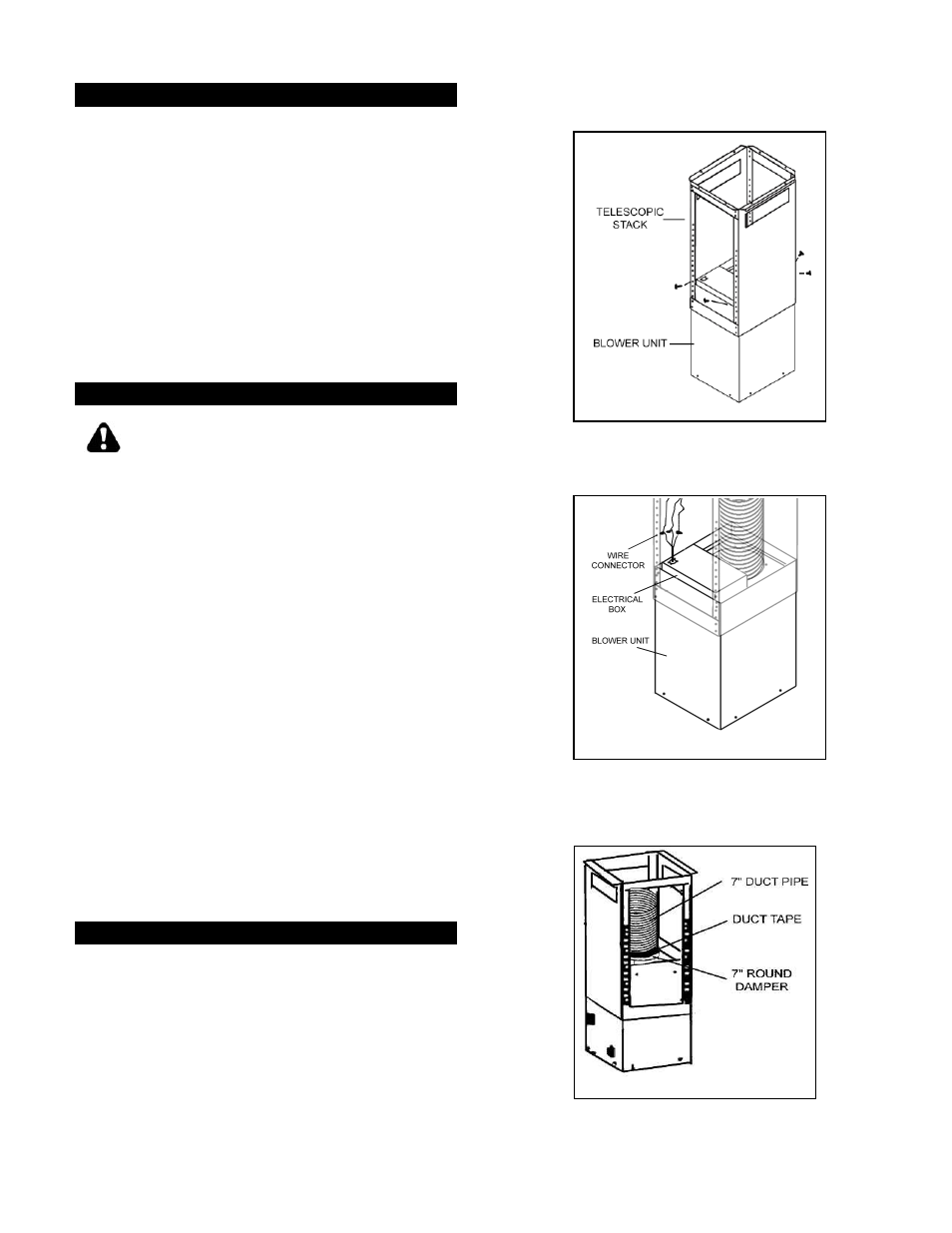

6. Align the telescopic stack to the pre-drill
holes on the ceiling and securely fasten to
the joists and cross framing lumber with
eight screws (not provided). Make sure
screws are driven into center of joists and
cross framing lumber for maximum support.
7. Adjust the blower unit to the telescopic
stack using reference F calculated in
TABLE 1 on page 4 and measurements on
pages 14-15. Tighten blower unit to the
telescopic stack with four
(M5 x 15) screws
(provided) as shown in Figure 4.
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE
HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY
QUALIFIED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL
AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
8. Route house wiring into the ceiling as close
to the installation location as possible.
Allow additional length to drop down from
the ceiling to the electric box.
9. Connect the electrical wires according to
color (green to green, white to white, and
green to green) and cap with wire
connectors as shown in Figure 5. Green
wire must be grounded to reduce risk of
electric shock.
Ductwork Installation
10. Use 7” round aluminum or steel pipe (not
provided) to connect the 7” round damper
on the hood to the ductwork above. NOTE:
Place 7” round duct pipe over the damper.
Seal with duct tape to make all joints secure
and air tight. NOTE: MAKE SURE FLAPS
ON DAMPER CAN OPEN & CLOSE
FREELY. (Figure 6)
Figure 4
Figure 5
Figure 6
Telescopic Stack Installation
Wiring to Power Supply
