Page 31
REPAIR PARTS
SECTION 6
31
SEARS WATER SOFTENER
MODEL NO. 625.348420
PARTS LIST
KEY
NO.
PART
NUMBER
DESCRIPTION
50
7131755
Screw, #6-20 x 7/8 (2 req.)
51
7133008
Motor (incl. 2 ea. of Key No. 50)
52
0900857
Screw, #6-20 x 3/8 (2 req.)
53
7117808
Motor Plate
54
0503288
Bearing
55
7113927
Cam and Gear
56
7142942
Clip (Drain)
57
0501228
Flow Plug
58
7170327
O-Ring, 5/8 x 13/16
59
7024160
Drain Hose Adaptor
60
0900431
Hose Clamp
F
61
7116713
Clip (2 req.)
F
62
0507369
Installation Nut (2 req.)
63
0507615
Installation Tube (2 req.)
64
7170335
Washer (2 req.)
◆
42-3441
Instal. Kit (includes Key Nos. 62, 63
& 64)
65
2207800
Installation Adaptor (2 req.)
F
66
7170288
O-Ring, 15/16 x 1-3/16 (2 req.)
F
67
7134224
Rotor Seal
68
7170204
O-Ring, 3/8 x 9/16
69
7092642
Plug (Drain Seal)
70
7129889
Spring
71
7081764
Seal (Nozzle & Venturi)
72
7082053
Valve Body
73
7170319
O-Ring, 1/4 x 3/8 (2 req.)
74
7081201
Retainer (Nozzle & Venturi)
75
7081104
Nozzle & Venturi Housing
76
1202600
Nut - Ferrule
77
1148800
Flow Plug, .3 gpm
78
7187772
Nozzle/Venturi–Gasket Kit
KEY
NO.
PART
NUMBER
DESCRIPTION
79
7146043
Screen
80
7167659
Screen Support
81
7170262
O-Ring, 1–1/8” x 1–3/8”
82
7081188
Cap
4
83
0521829
Flow Plug, .1 gpm
84
7095030
Cone Screen
85
7170246
O-Ring, 3–3/8 x 3-5/8
86
7103964
Rotor & Disc
87
7082087
Wave Washer
88
7170212
O-Ring, 3/4 x 15/16
89
7170238
O-Ring, 7/16 x 5/8
90
7085263
Valve Cover
91
7074123
Screw, #10-14 x 2 (5 req.)
92
7077472
Expansion Pin
93
7030713
Switch
94
7117816
Spacer
95
7070412
Screw, #4-24 x 1-1/8 (flat head)
96
7181580
Sensor Housing
97
2204101
Turbine Support and Shaft
98
7117858
Turbine
99
9000803
O-Ring
◆
7187065
Nozzle & Venturi Assy. (incl. Key
Nos. 75, and 77 through 84)
◆
7147112
Parts Bag (incl. parts marked with a
●
, pages 28, 29 & 31) — order manu-
als separately, if needed.
◆
7129716
Seal Kit (incl. Key Nos. 67, 68, 71,
85, 88 and 89)
◆
42–3433
Drain Tubing, 3/8
″
I.D. x 20
′
◆
not illustrated
optional – not included

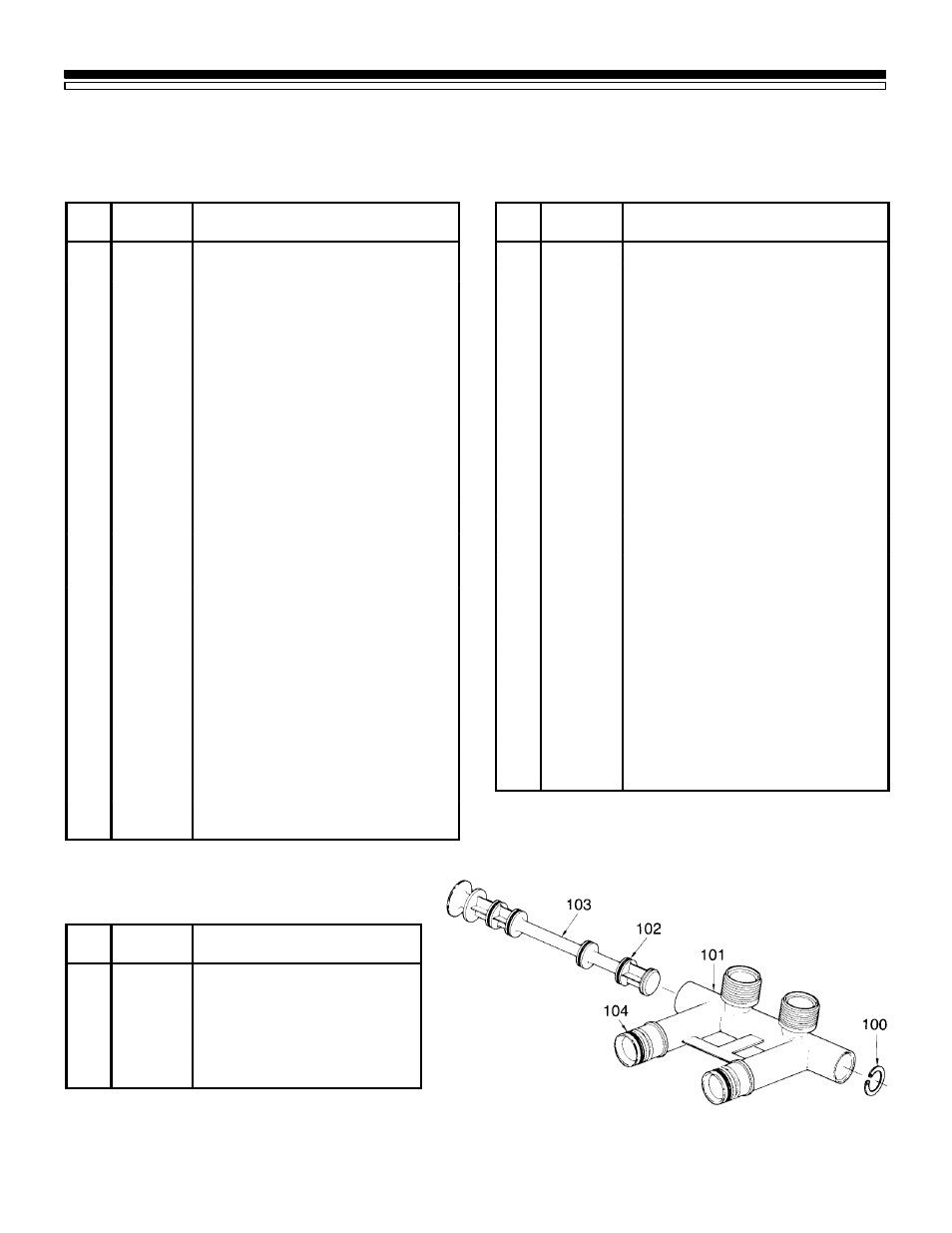

BYPASS INSTALLATION VALVE
MODEL NO. 625.34372
KEY
NO.
PART
NUMBER
DESCRIPTION
100
0502206
Retainer Ring
101
7129863
Bypass Body
102
7105013
O-Ring, 13/16 x 1 (4 req.)
103
7130911
Stem
104
7170288
O-Ring, 15/16 x 1-3/16 (2 req.)
◆
42-3437
Bypass Valve (Complete)
