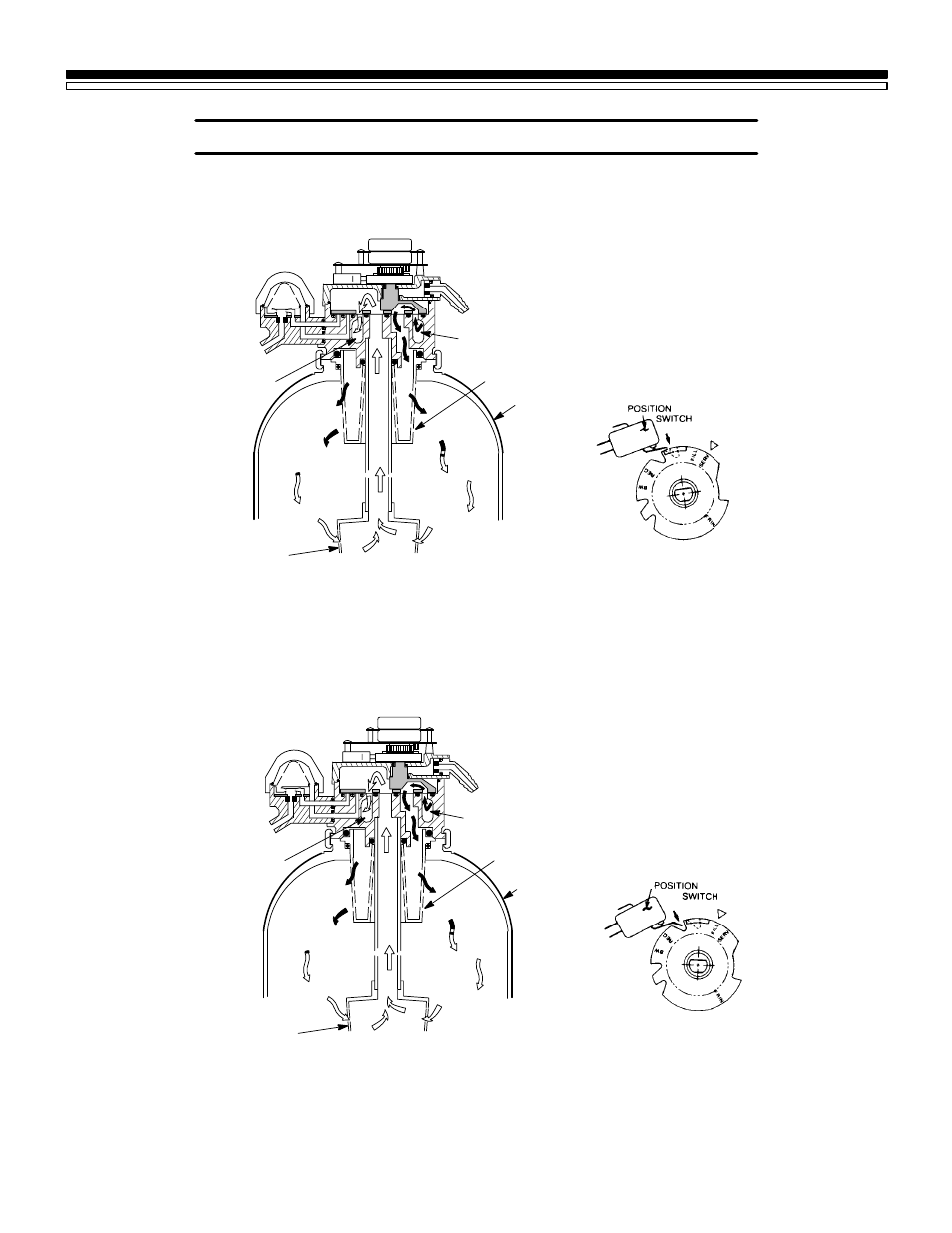

5C. WATER FLOW THROUGH THE SOFTENER VALVE
SERVICE CYCLE
Hard water enters the valve inlet port. Internal valve porting routes the water down and
out the top distributor, into the resin tank. Hard water is softened as it passes through the
resin bed, then enters the bottom distributor. Soft water flows back into the valve and out
the valve outlet, to the house soft water pipes.
To Valve Outlet
(soft water)
resin
bed
resin
bed
bottom distributor
resin tank
top distributor
from Valve Inlet
(hard water)
FILL CYCLE
To begin a regeneration, the electronic timer energizes the circuit to the valve motor. The
valve motor rotates the rotor and disc and the valve cam until the position switch lever
drops to open the motor circuit, when the valve reaches FILL position. As the rotor and disc
rotates, the port opens for SOFT water fill through the venturi. Fill flow continues to the
brine valve, and into the salt storage tank. Soft water is still available to the house lines.
To Valve Outlet
(soft water)
resin
bed
resin
bed
bottom distributor
resin tank
top distributor
from Valve Inlet
(hard water)
