Kohler Closing Overow Cable Bath Drain K-7116 User Manual
Page 7
Installation/Installation/Instalación

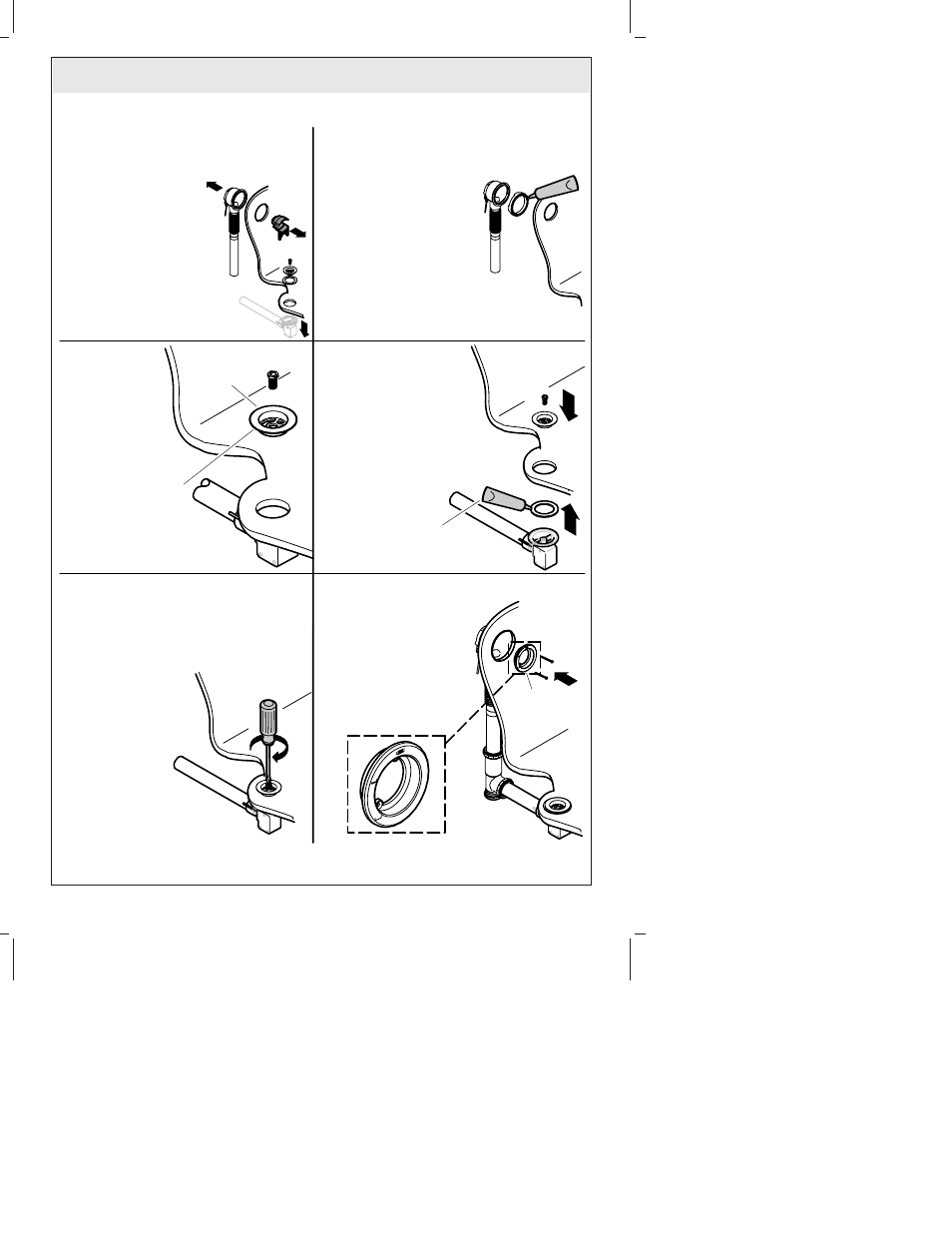

Remove the alignment tool,
and both ells.
Retirer l'outil
d'alignement ainsi
que les deux coudes.
Retire la herramienta
de alineación
y ambos codos.
Apply silicone sealant
to the gaskets.
Appliquer du mastic
d'étanchéité à la silicone
sur les joints
d'étanchéité.
Aplique sellador de
silicona a los empaques.
15
16
17
18
Install the drain ell.
Installer le coude
du drain.
Instale el codo
de desagüe.
Apply plumbers putty.
Appliquer du mastic
de plombier.
Aplique masilla
de plomería.
Tighten the drain ell.
Serrer le coude du drain.
Apriete el codo de desagüe.
19
20
Loosely install the overflow flange.
Installer la bride de
trop-plein sans serrer.
Instale sin apretar
la brida del rebosadero.
Flange
Bride
Brida
Flange
Bride
Brida
Apply silicone sealant.
Appliquer du mastic à la silicone.
Aplique sellador de silicona.
Align as shown.
Aligner tel qu'indiqué.
Alinee como se muestra.
Kohler Co.
7
1113750-2-C
