INSTALLATION INSTRUCTIONS
TELLIEUR
STORAGE CASES
R
MATERIALS NEEDED:
S Level
S Square
S Drill
S Measuring Tape
S Pencil
S Safety Glasses
S Fasteners (see steps 4., 5., 12., 13. & 14.)
S 5 mm Tapped Sleeve Connectors (see step 15.)
BEFORE YOU BEGIN
1.
Unpack the storage case and any
accessories and inspect for
damage.
HANDLE INSTALLATION
2.

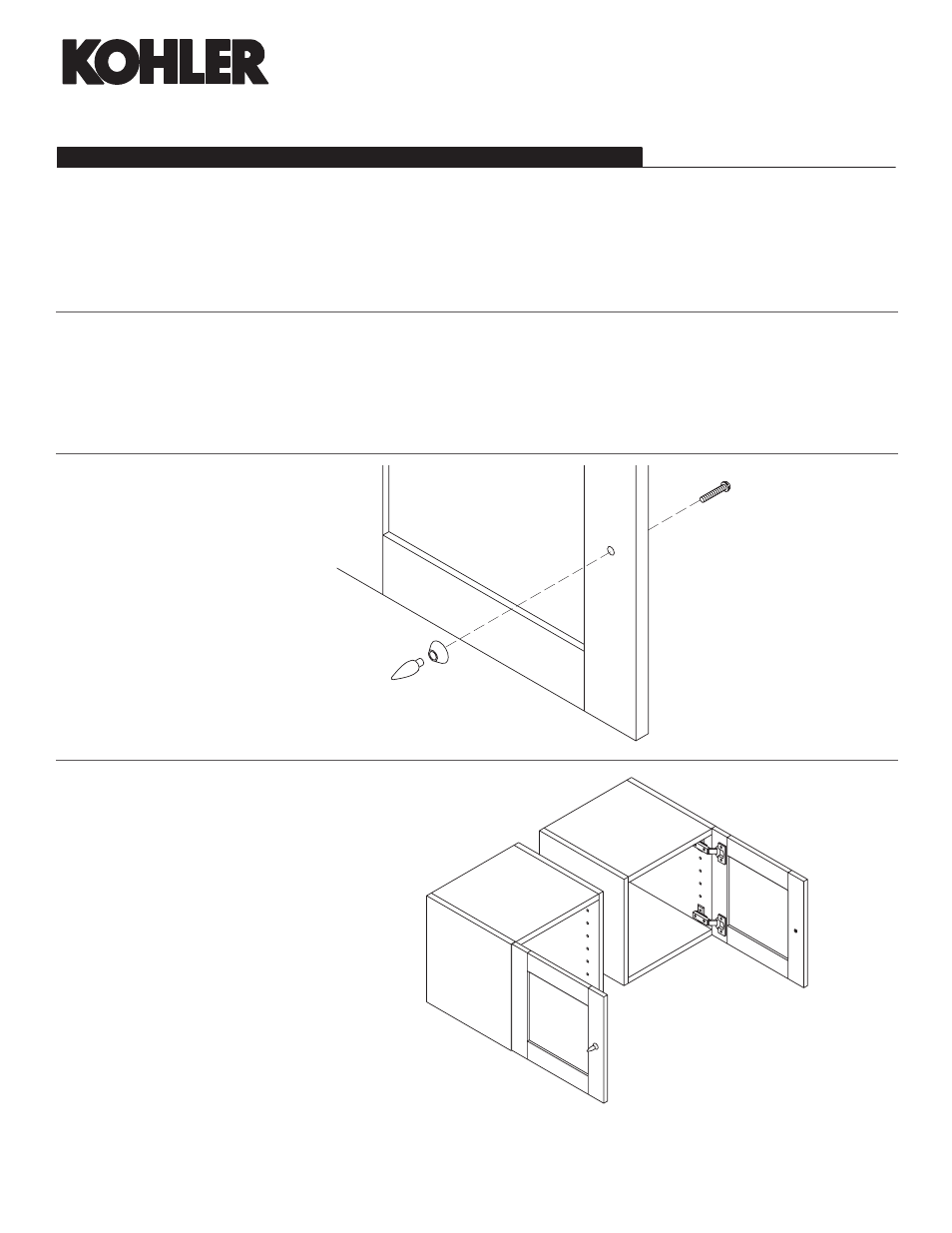

Handles come installed
backwards. Remove handles and
reinstall properly.
Securely hand tighten.
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
ЕЕЕЕЕЕЕЕЕ
STORAGE CASE INSTALLATION
3.
Determine whether to have the
storage case door open from the
right or left. The storage case
may be flipped to allow the door
to open from either direction.
If mounting the storage case to
the wall, continue to step 4.
If installing to a freeĆstanding
base unit, skip to step 6.
If installing to a wallĆmount base
unit, skip to step 9.
