6 English
Connection

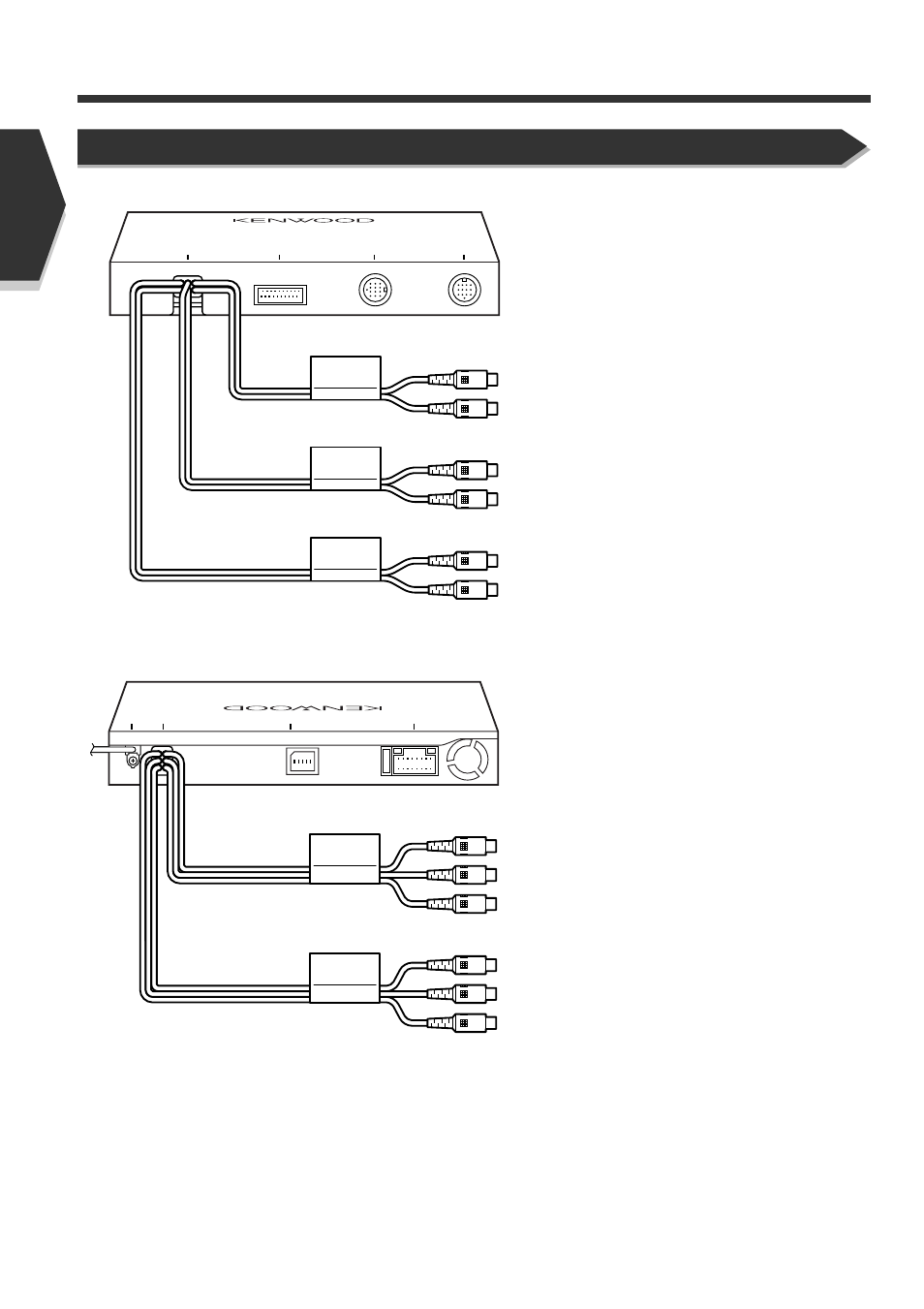

System Connection
AV IN
AV OUT
FM /AM
ANTENNA
AV INPUT
AV O UTPUT
POWER TO MONIT OR I/F
•
Audio/Visual input
Visual input (Yellow)
Audio left input (White)
Audio right input (Red)
•
Audio/Visual Output
Visual output (Yellow)
Audio left output (White)
Audio right output (Red)
•
Sub-woofer (Mono) Preout
Audio left output (White)
Audio right output (Red)
•
Rear Preout
Audio left output (White)
Audio right output (Red)
•
Front Preout
Audio left output (White)
Audio right output (Red)
TO 5L-I/F TO NAVIGATION I/F TO TV TUNER I/F PREOUT
FRONT
REAR
WOOFER
SUB
Receiver unit (front side)
Receiver unit (rear side)
