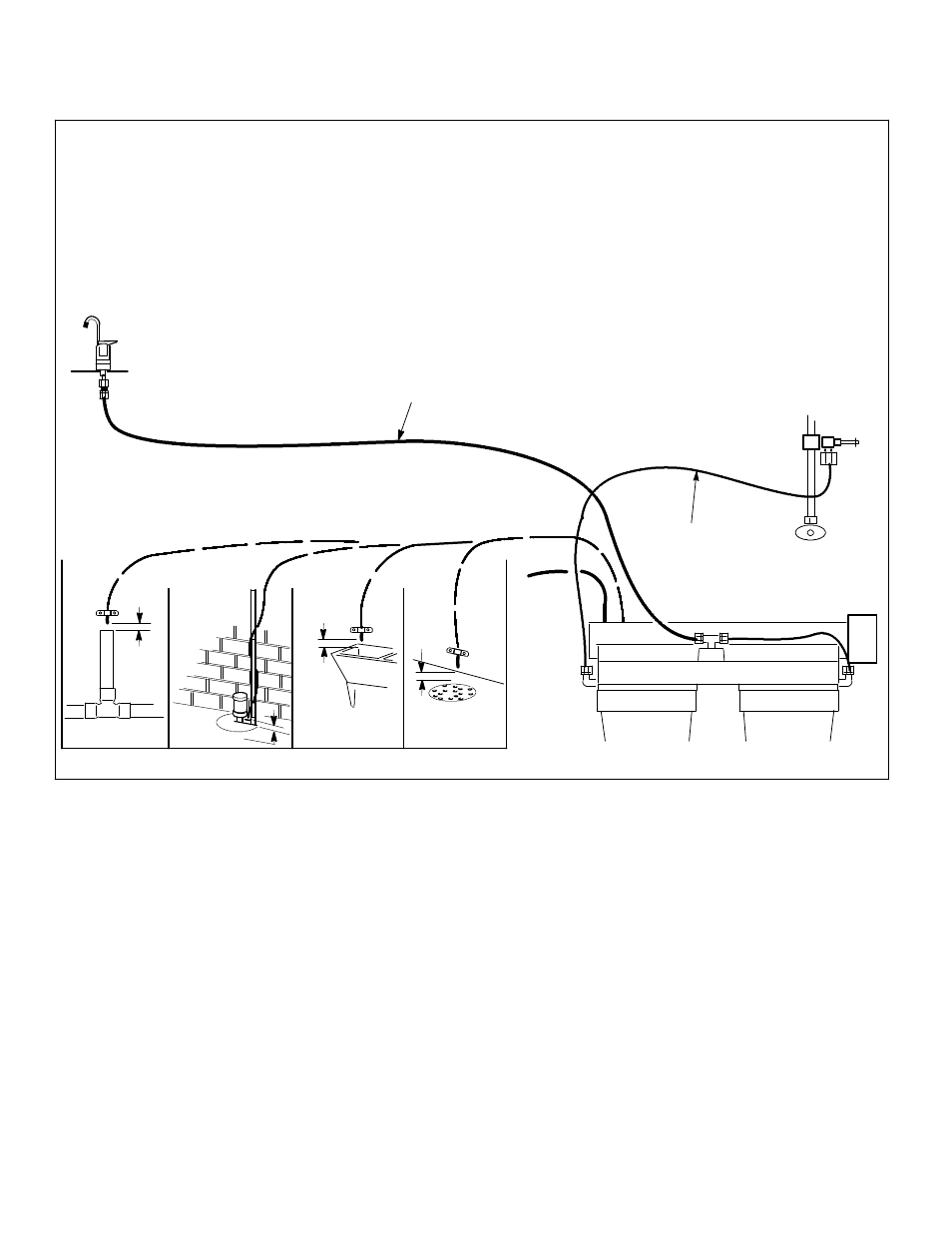

-- REMOTE LOCATION FOR REVERSE OSMOSIS SYSTEM --
RO product
water faucet
COLD
WATER
SUPPLY 1/4” green tubing
3/8” blue tubing
STANDPIPE
airgap
airgap
SUMP
airgap
LAUNDRY
TUB
FLOOR
DRAIN
OPTIONAL DRAIN POINTS FOR REJECT WATER
REMOTE RO INSTALLATION
(storage tank not shown)
Possible remote locations for the RO nearby the kitchen or bathroom sink include; (1) a basement area
underneath the sink, and (2) an adjacent room or closet. Longer lengths of tubing may be needed (see parts
list on page 17).
You can run the drain tubing directly to 1 of several suitable open drain points, as shown below, bypassing
the faucet airgap and p---trap drain. This type of drain is the preferred over the p---trap drain adapter. Check
your local codes. Always be sure to provide an air gap between the end of the hose and the drain point.
airgap
red
red
yellow
storage
tank
Note: Tubing colors as
supplied with RO system.
