Step 3, Assembly step 3 – Keys Fitness KF-OB User Manual
Page 8
A
A

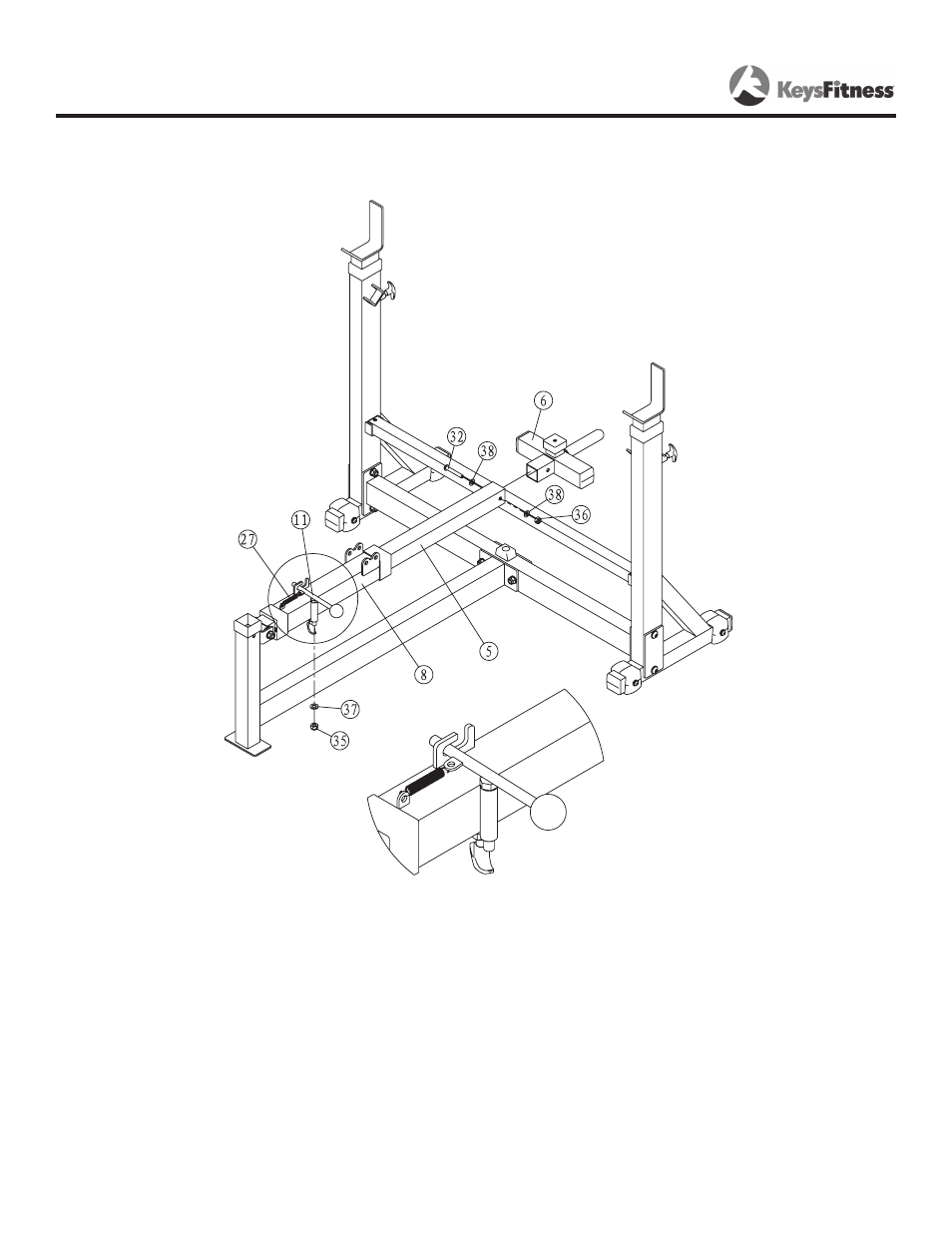

CARRIAGE ASSEMBlY (A): Slide Adjustable Pin (11) down into
Carriage (8) and secure with Washer (37) and Nylon Nut (35).
Connect Spring (27) to Adjustable Pin (11) and Carriage (8).
Connect Decline Handle (6) to Guide Frame (5) using Bolt (32),
Washers (38) and Nylon Nut (36).
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
Assembly
STEP 3
