Station
Exchanging the filter bag of the station
You must exchange the filter bag if the “Filter full” indicator lamp
(H) lights up.
• Open the filter cover.
• Pull the flap upwards to remove the filter bag from the support.
Place the filter bag into the ordinary refuse for disposal.
• Push the new filter bag into the support until the stop.
Caution: Never operate the appliance without a filter bag!
• Close the filter cover.
Note: When you turn the robot on again, the “Filter full” indica-
tor lamp (H) lights up until the next suction operation.
Spare filter bag kit: 5 filter bags, 1 motor protection filter
Order no.: 6.904-257
Exchanging the motor protection filter of the charging
station
• If you have replaced the filter bag 5 times, also exchange the
motor protection filter (included in the spare filter bag kit).
Robot
Begin all maintenance works of the robot with the following
steps:
Opening the dirt receptacle
• Place the robot into the station to empty the dirt receptacle.
• Put the robot on a soft base.
• Open both locking levers of the dirt receptacle.
• Remove the cover of the dirt receptacle.
Cleaning the flat filter
Clean the flat filter every time you exchange the filter bag.
• Remove the flat filter from the dirt receptacle.
• Shake out the flat filter, or clean it using a small brush.
• Re-insert the flat filter.
Maintenance and Care
Turn off the station and the robot before performing any maintenance work!

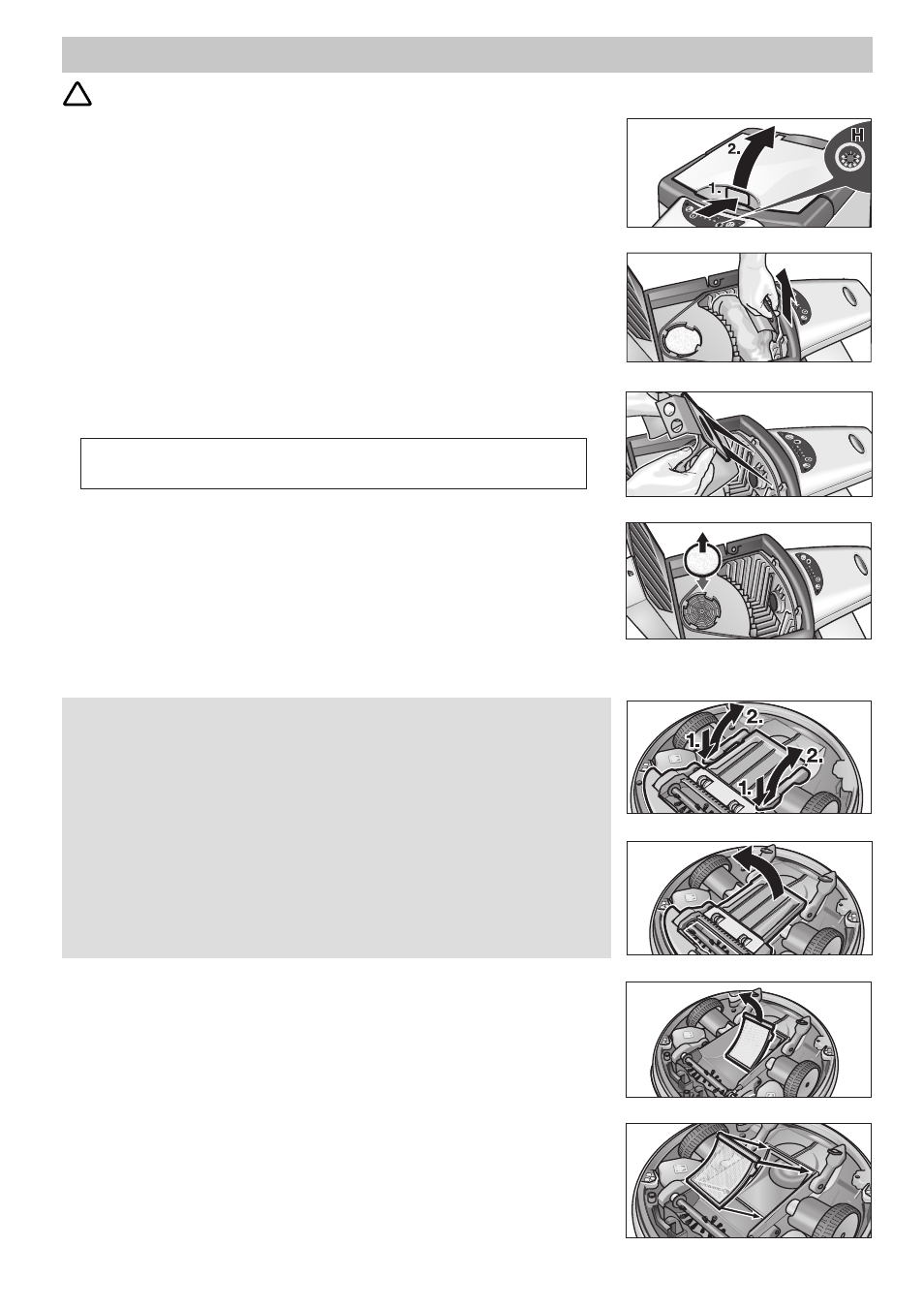

Figure 15: Exchange the motor protection filter
Figure 16: Opening the locking lever
Figure 17: Removing the dirt receptacle cover
Figure 18: Disassembling and cleaning the flat filter
Figure 19: Installing the flat filter
Figure 13: Removing the filter bag
Figure 14: Inserting a filter bag
Figure 12: Opening the filter cover
