ENGLISH

4

EN

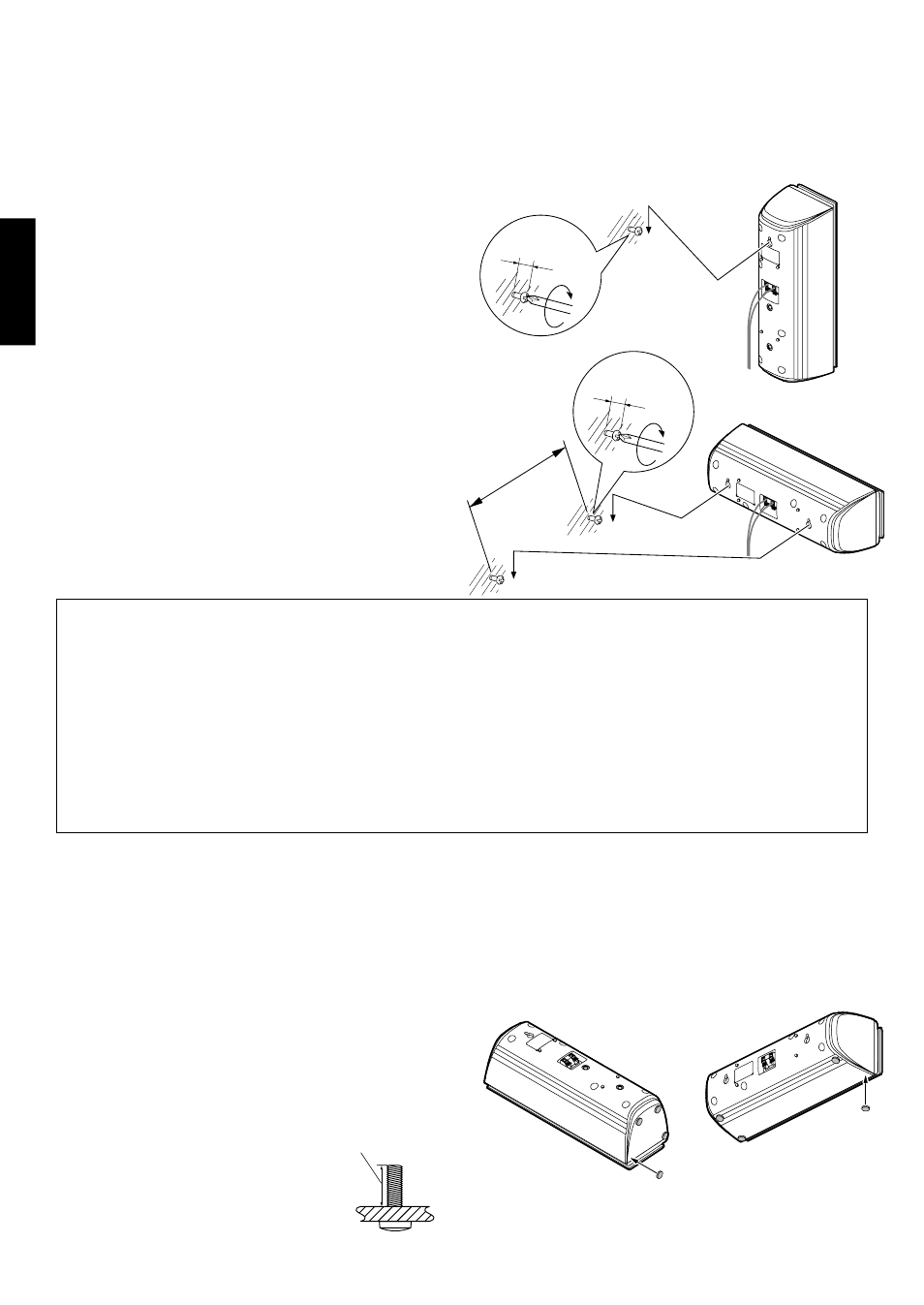

Installation Methods

On the Desktop or Shelf

Place the speakers on the desktop, shelf or a similar level surface.

On the Wall

The speakers include mount holes for wall mounting. You can hang the front and surround speakers on the wall vertically, and the

center speaker horizontally.

7 Front speaker , Surround speaker
1. Screw a single screw into the wall at the desired loca-

tion. Screw it only part way in, so that the screw projects
8 to 10 mm (5/16 to 3/8 inches) outward from the wall
surface.

2. Hang the speaker by fitting the top mount hole (at the

upper rear of the speaker) over the extending part of
the screw. Confirm that the speaker is held firmly and
securely in place.

7 Center speaker
1. Screw two screws into the walls 150 mm (5-7/8 inches)

apart, making sure that screws are horizontally level.
Screw each screw only part way in, so that the screw
projects 8 to 10 mm (5/16 to 3/8 inches) outward from
the wall surface.

2. Hang the speaker by fitting the two mount holes (at the

rear of the speaker) over the extending part of the screw.
Confirm that the speaker is held firmly and securely in
place.

Various mounting methods

7 On the optional kenwood stand (SR-8000)

(front speaker and surround speaker only)

The speaker can be installed on the SR-8000 stand optionally

available from KENWOOD.

7 On the commercially available speaker mount or bracket

(front speaker only)

Any commercially available speaker mount or bracket can also

be used (provided that the speaker can be fixed using an M5

screw with a pitch of 60 mm and effective thread length of 10

to 13 mm).

For details, read the instruction

manual for the speaker mount or

bracket.

Attaching the cushions

Attach cushions to the base of the speaker as shown below.

The cushions prevent the speaker from sliding, and dampen

its vibrations.

Front speaker,

Center speaker

Surround speaker

Precautions

Please observe the following precautions when mounting speakers onto the wall.

• Be sure that the wall you are using is strong enough to support the full weight of the speaker (approx. front speaker : 0.7 kg

[1.5 lb], center speaker : 0.7 kg [1.5 lb], surround speaker : 0.5 kg [1.1 lb]).

• Wall screws must be purchased separately. Be sure to use screws that are appropriate for the wall you are using, and that

are long enough to provide sufficient strength.

• If you are uncertain about the wall’s support strength, the type of screw to use, or any other points regarding this type of

installation, please consult a contractor or other qualified person before proceeding.

Be sure to follow the procedure given here when carrying out installation. Kenwood can assume no liability for injury
or damage that may occur if a speaker setup falls from the wall as a result of incorrect installation or insufficient
support strength.

8 - 10 mm

(5/16 - 3/8”)

150 mm

(5-7/8”)

8 - 10 mm

(5/16 - 3/8”)

E ffe c t i v e t h r e a d
length

M5 screw
