TOOLS REQUIRED
You will need two adjustable wrenches for assembly
ASSEMBLY INSTRUCTIONS
Place all parts in a clear area and remove the packing materials.

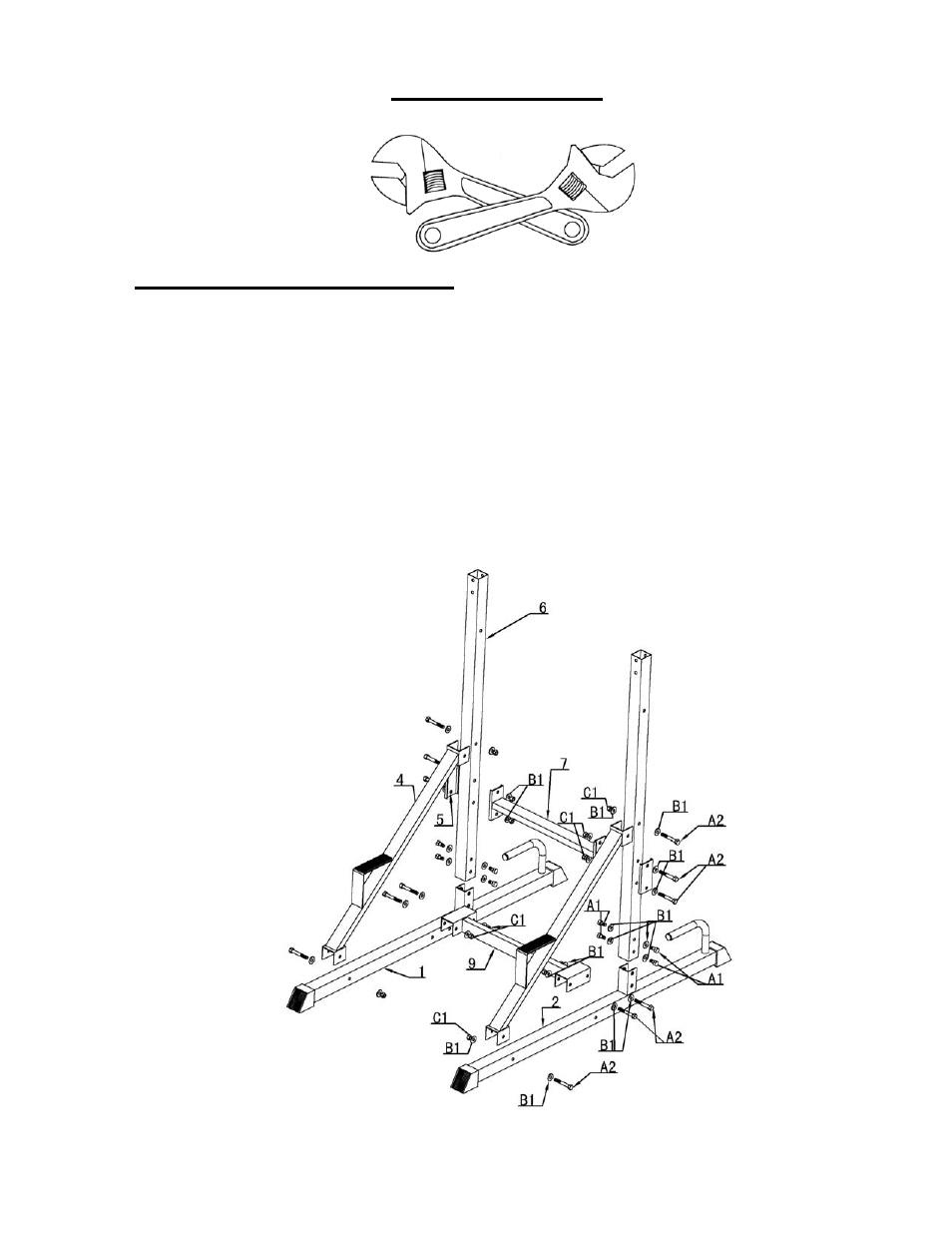

Step 1
1. Place the Left and Right Base (No. 1 & 2) parallel, insert two Ø 25 Short Foam Grips (No. 3)
into each of the push up handle of the Base. Connect the Bottom Brace (No 9) to the Left and
Right base (No. 1 & 2), secure them by four M10x70 Bolts (No.A2), eight Ø10 Washer
(No.B1) and four M10 Aircraft Nuts (No.C1).
2. Insert two Lower Upright Tubes (No. 6) into the Left and Right Base (No. 1 & 2), secure them
by eight M10 x 20 Bolts (No. A1) and eight Ø10 Washer (No. B1).
3. Connect the Lower Cross Brace (No. 7) and the two U-shape Brackets (No. 5) to the Lower
Upright Tubes (No. 6), secure them by four M10 x 70 Bolts (No. A2), eight Ø10 Washer (No.
B1) and four M10 Aircraft Nuts (No. C1).
4. Insert the Lower Support Bars (No. 4) between the Base (No. 1 & 2) and the Lower Upright
Tubes (No. 6), secure them by four M10 x 70 Bolts (No. A2), eight Ø10 Washer (No. B1) and
four M10 Aircraft Nuts (No. C1).
