Keys Fitness Power Tower ST-PT Series - Manual (Page 5)

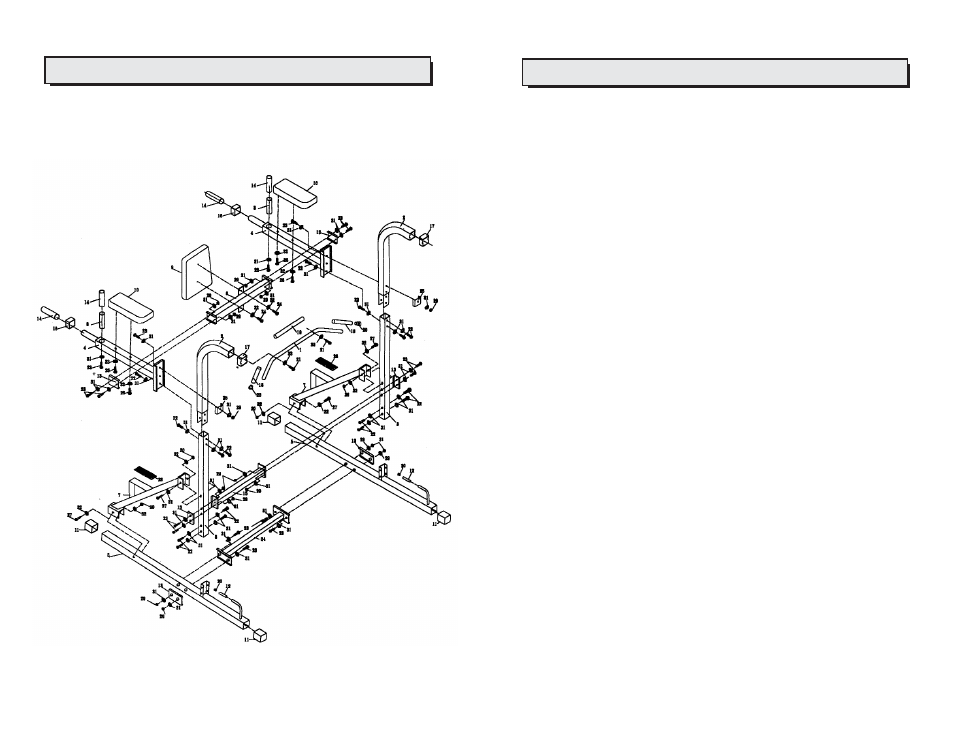

Exploded View STPT Parts List
Part NO. Item
1 LAT BAR
2 UPRIGHT SUPPORT FOR LAT
3 UPRIGHT SUPPORT FOR DIP
4 INSIDE BEARING COLLAR
5 DIP HANDLE ARM
6 BASE LEGS
7 VKR CROSS SUPPORT
8 ANGLE SUPPORT
9 PADDED BACK SUPPORT
10 ARM PAD
11 RUBBER ENDCAP FOR 55MM SQUARE
12 FOAM PADDING 22ID X 32OD X 140
13 U SUPPORT PLATE
14 RUBBER HAND GRIP (32MM ID HOLE)
15 CENTER CROSS SUPPORT
16 DIP HANDLE BUSHING (32MM ID HOLE)
17 RUBBER CAP FOR LAT UPRIGHT
18 FOAM PADDING 22 ID X 32 OD X 240
19 FOAM PADDING 22 ID X 32 OD X 445
20 END CAP25MM DIA (1”)
21 BOLT 3/8” X 40
22 BOLT 3/8” X 15
23 HEX HEAD BOLT 3/8” X 70
24 BOLT M8 X 15 (9/16”)
25 SMALL SUPPORT PLATE
26 BOLT M8 X 60 (2-3/4)
27 BOLT M8 X 70 (2-3/4)
28 NON-SLIP RUBBER PAD
29 NYLOCK NUT 3/8”
30 LOCKNUT FOR M8 BOLT
31 WASHER 10 X 26 X 2.0
32 WASHER 22MM DIA FOR M8 BOLT
33 CURVED WASHER FOR M10 BOLT
34 LOW CROSS SUPPORT
