24 | English

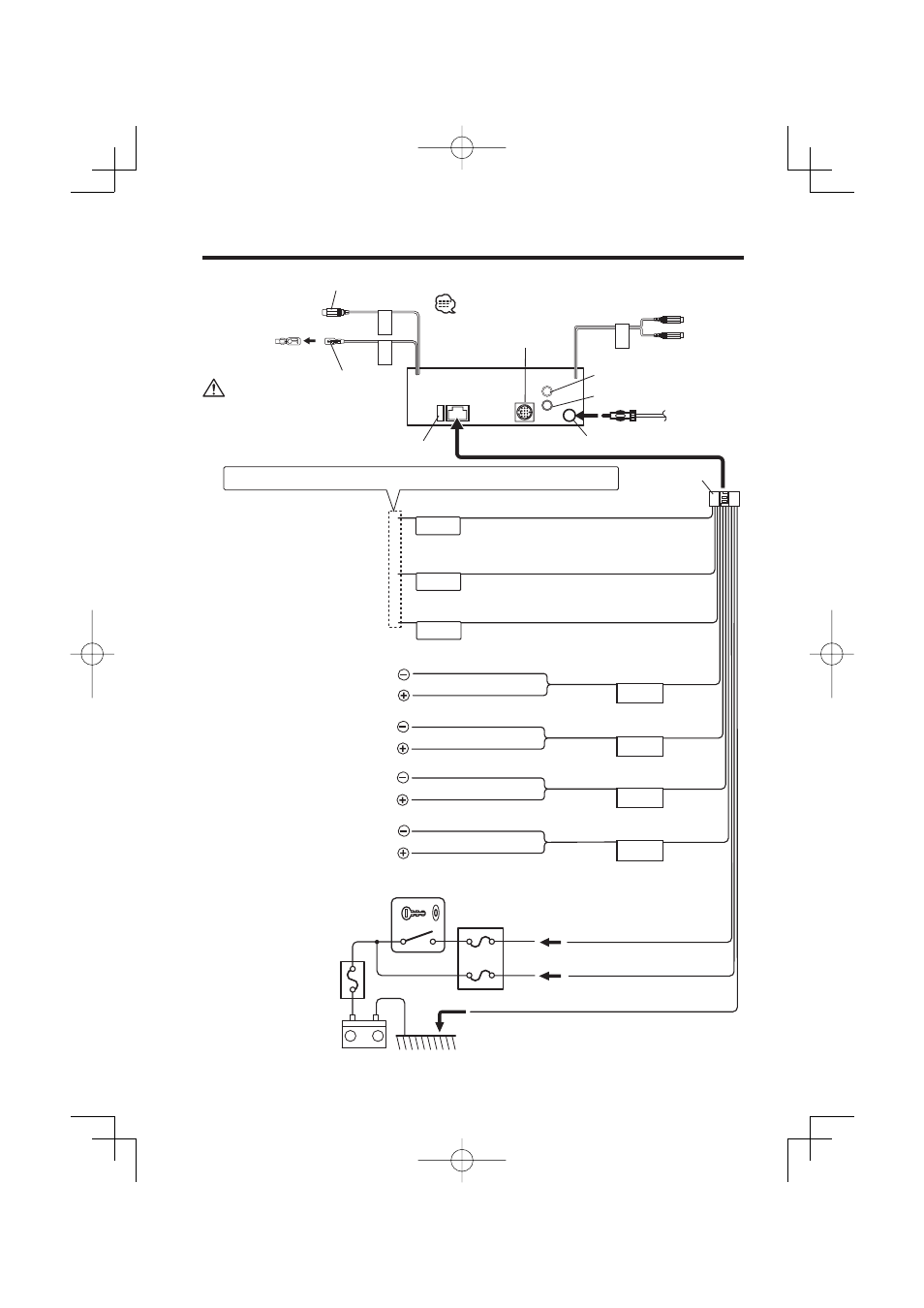

Connecting Wires to Terminals
ANT.
CONT
MUTE
P.CONT
FRONT • L
FRONT • R
REAR • L
REAR • R
– +
FRONT
R
L
VIDEO OUT
PRK
S W
Battery
Ground wire (Black) - (To car chassis)
FM/AM antenna input
Rear left output (White)
Rear right output (Red)
Fuse (10A)
Wiring harness
(Accessory
1)
Ignition wire (Red)
Battery wire (Yellow)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
To KENWOOD disc changer/
External optional accessory
When using the optional power amplifier,
connect to its power control terminal.
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Depending on what antenna you are using,
connect either to the control terminal
of the motor antenna, or to the power
terminal for the booster amplifier of the
film-type antenna.
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Ignition key switch
Car fuse box
(Main fuse)
TEL mute wire (Brown)
Connect to the terminal that is grounded
when either the telephone rings or during
conversation.
Front left output (White)
Front right output (Red)
Video output (Yellow)
To the monitor unit
Parking sensor
wire (Green)
To connect these leads, refer to
the relevant instruction manuals.
To parking brake detection
switch harness of car
For the sake of safety, be
sure to connect the parking
sensor.
Connection cable (Accessory 9)
