7

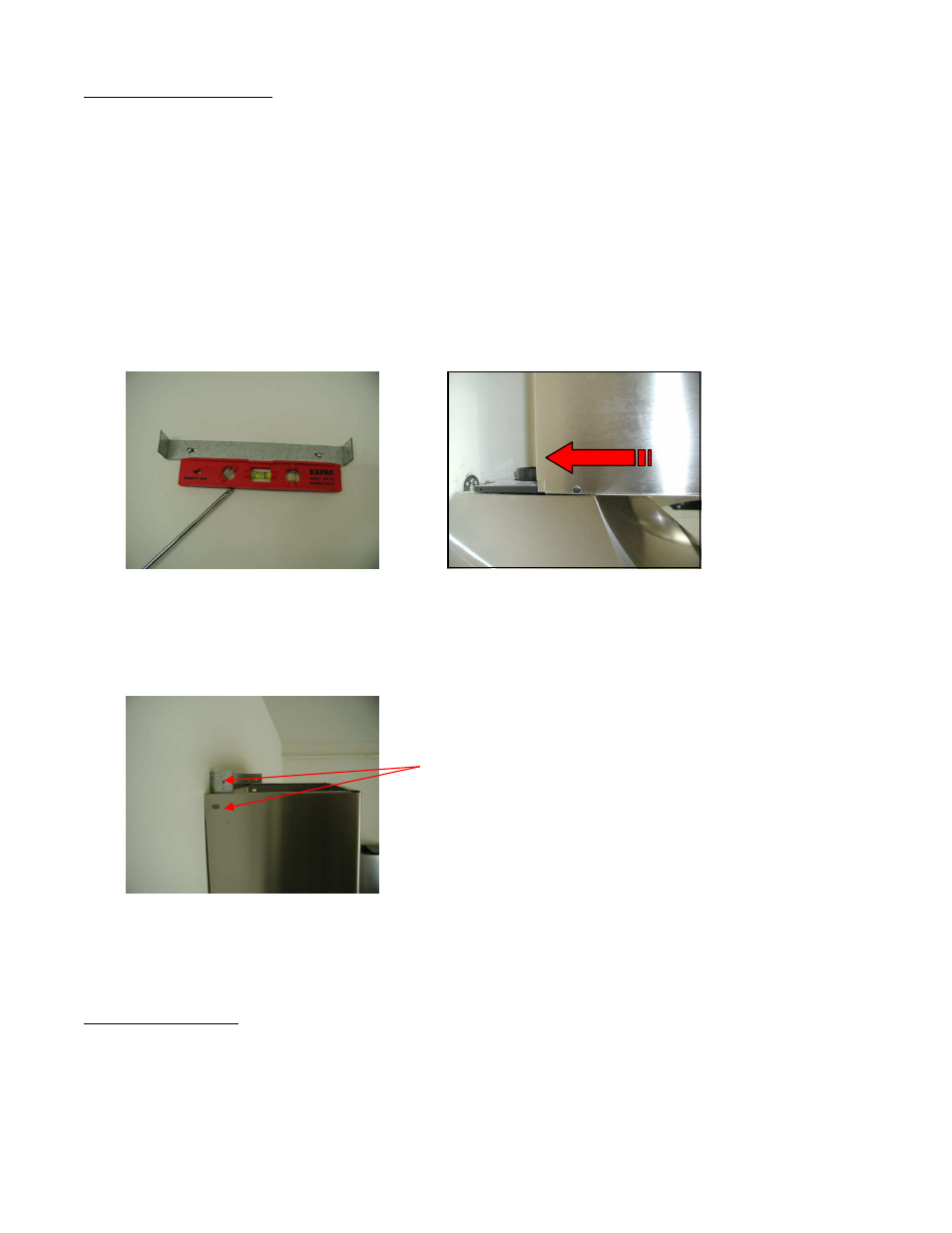

Duct Cover Installation
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCURS.
9. Using reference E from Table 1 and measurements on page 13, mark the leveling point
for duct cover-mounting bracket.
10. Secure the duct cover-mounting bracket to the wall with two screws (not provided). Refer
to Figure 7. Make sure all screws are tightened. NOTE: Inner duct cover will cover the
duct cover-mounting bracket.
11. Slide up inner duct cover up 2 inches before sliding entire duct cover onto the hood.
Refer to Figure 8.
Figure 7 Figure 8
12. Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure
inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 9.
Figure 9
13. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided).
Install Accessories
14. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise
until firmly in place. Refer to Figure 10.
15. Slide oil container (oval) into plastic slot behind each safety screen as shown in Figure
11.
Attach Together
