- Temporarily wire the hood to test for proper operation before installing.
- Peel protective film off the duct cover and the hood (if any).
- Loosen hood-mounting brackets at the back of the hood, adjust brackets and tighten
screws as shown in Figure 3.
- If necessary to remove the rubber stand on the back of the hood, unscrew and discard.
Refer to Figure 4.

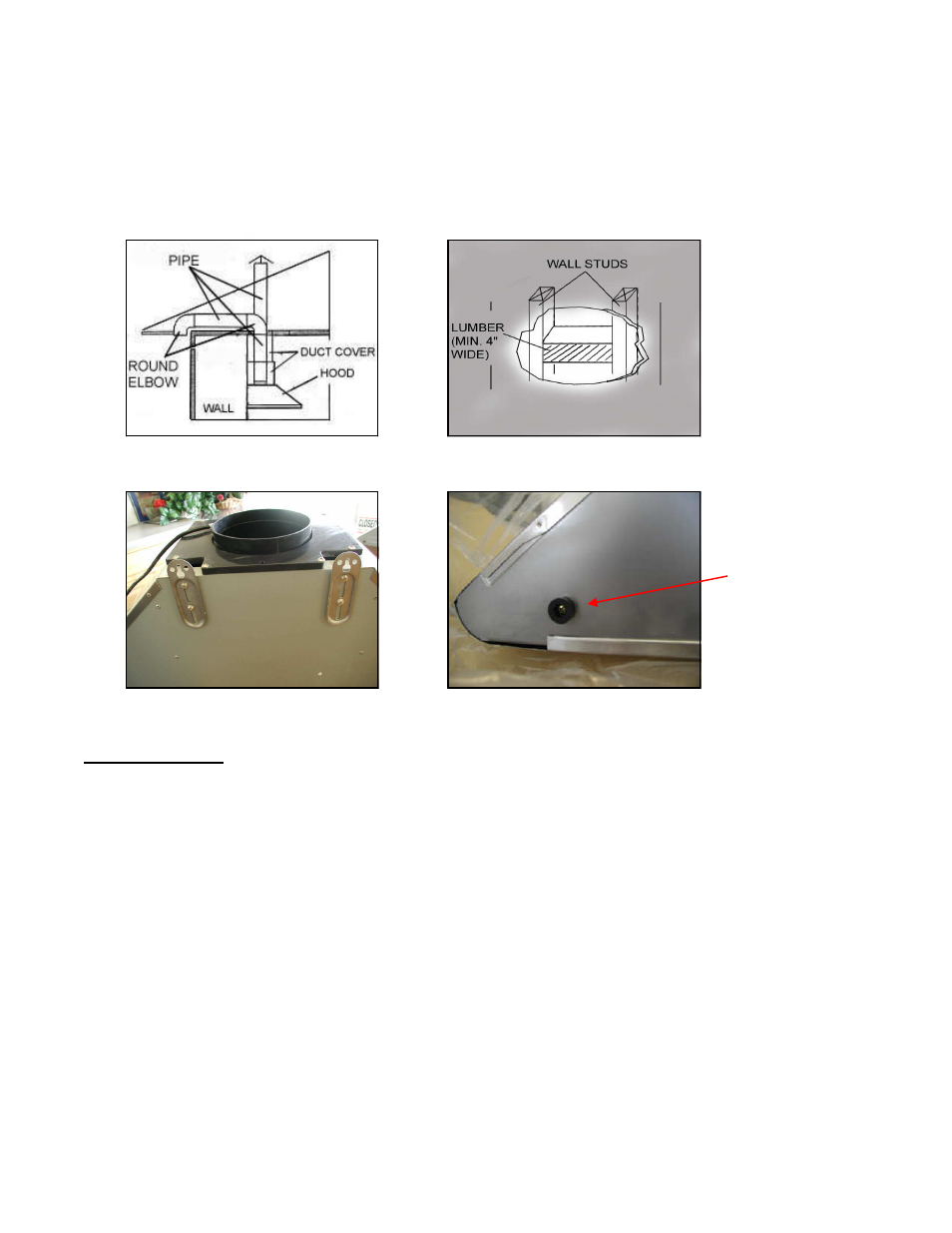

Figure 1 Figure 2
Figure 3 Figure 4
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn OFF the power on an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Using references on Table 1 and measurements on page 13, mark the leveling point for
hood-mounting bracket on the wall.
2. Secure two mounting screws (not provided) on the wall leaving 1/8” away from the wall.
Refer to Figure 5.
3. Align hood-mounting bracket to the mounting screws on the wall and hook hood into
place.
4. Secure and tighten the mounting screws. CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Attached
Rubber Stand
