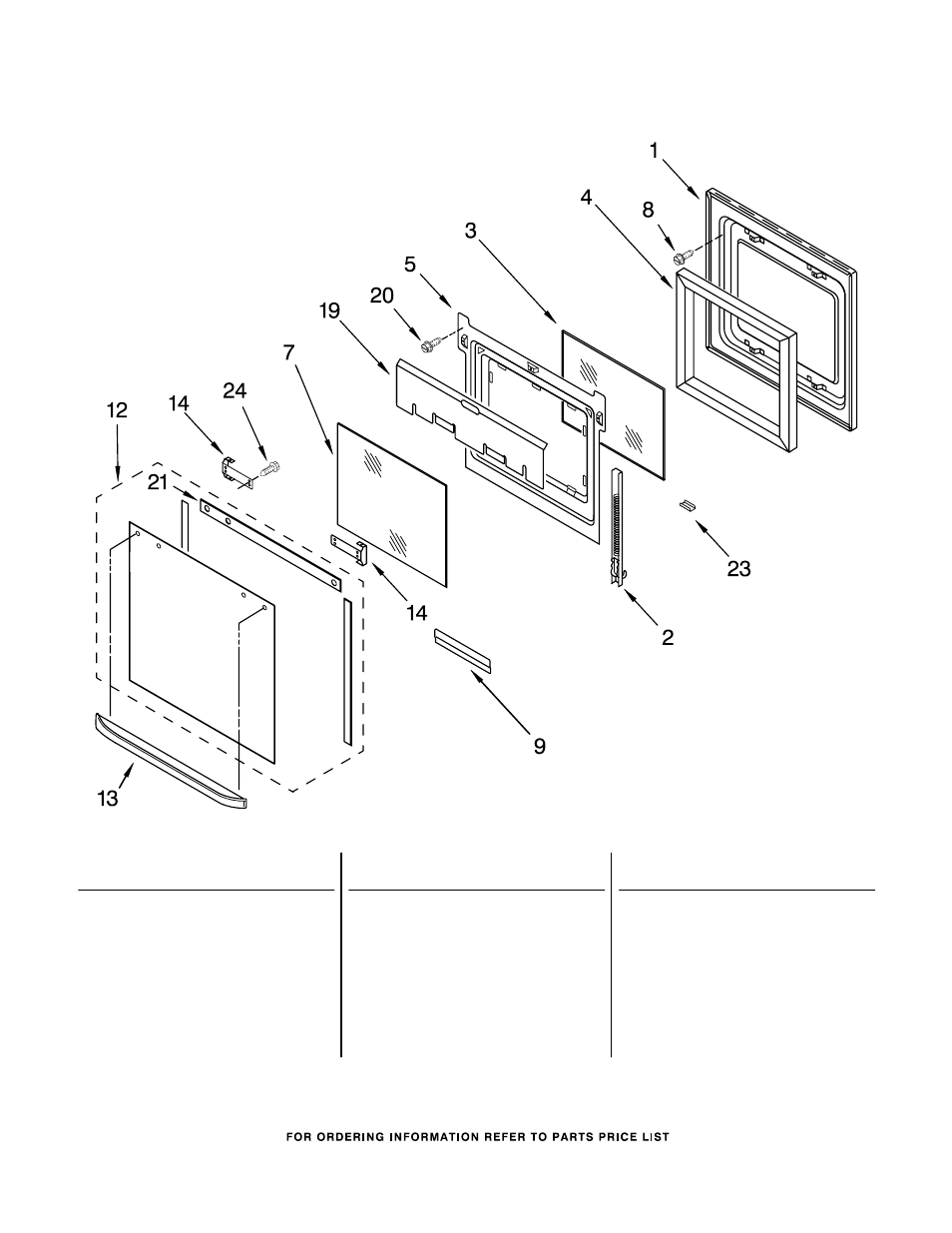

OVEN DOOR PARTS
3 8186169
For Model: KDRP407HSS09, KDRP407HBU09
(Stainless Steel) (Cobalt Blue)
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4455618 Door Liner
2 Hinge, Door
8300577 R.Side
8300578 L.Side
3 4449259 Glass, Inner
4 4451722 Insulation, Door
5 8300778 Retainer, Glass
7 4449263 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
9 4451668 Retainer, Glass
12 Assy, Door Glass
4452316 S.Steel
4455960 Cobalt Blue
13 4455851 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
19 4450362 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 4452326 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548
