ASSEMBLY
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
Z
2
19
23
19
23
11
19
23
23
19
9
19
25
19
23
23
25
19
1
1
23
19 11
23
8
8
3
22

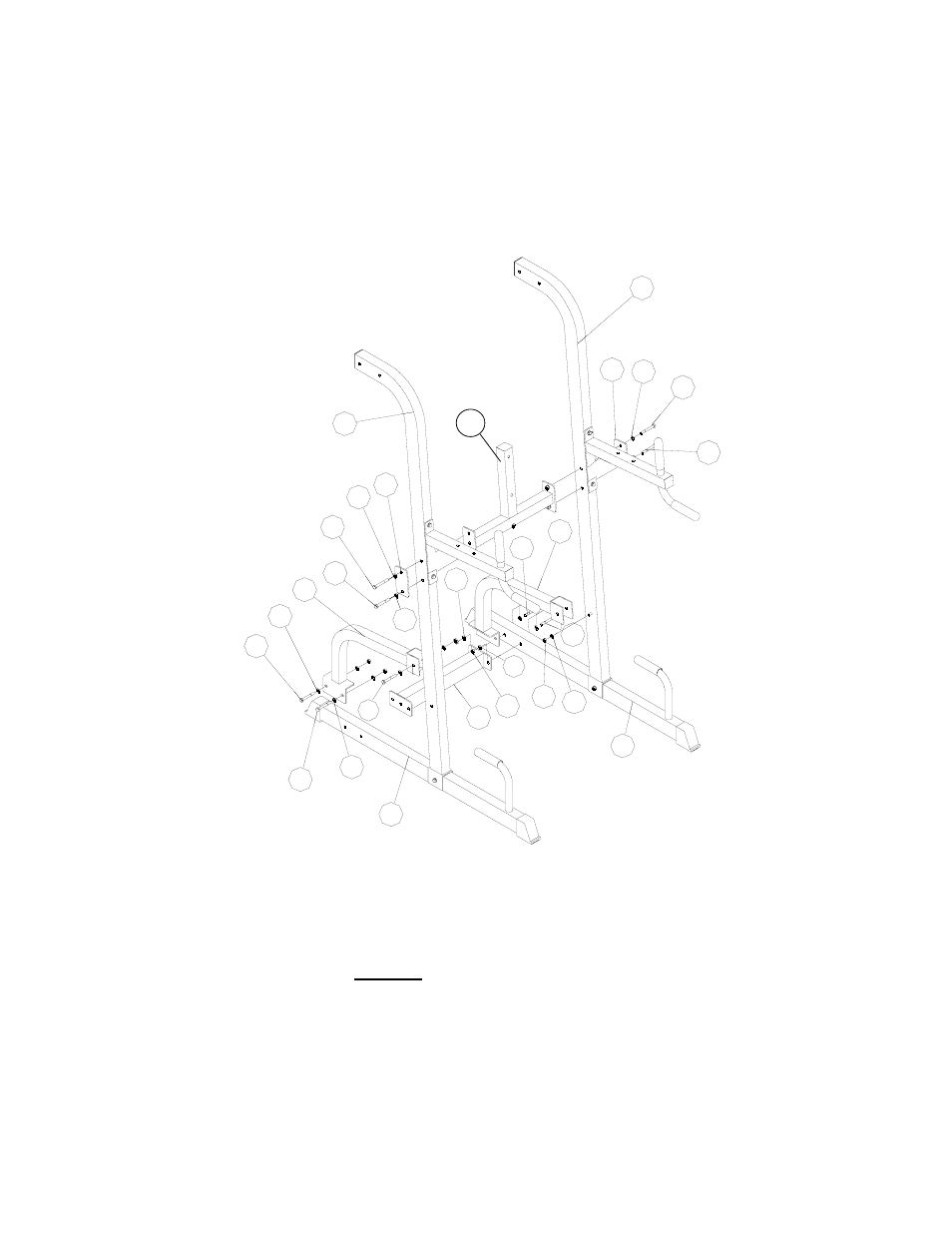

STEP 2
Connect Back Pad Support Frame (5) to both Upright Frames
(1) using Bolts (23), Washers (19), Nylon Lock Nuts (25) and
Small Plates (11). NOTE: Small Plates (11) are to be placed
on the outside of the machine.
Connect Left and Right Angle Supports (2,3) to Base Frame
(8) and Cross Frame (9) using Bolts (23), Washers (19) and
Nylon Lock Nuts (25).
5
