Keys Fitness KPS-PT User Manual
Page 4
ASSEMBLY
STEP 1
Y
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

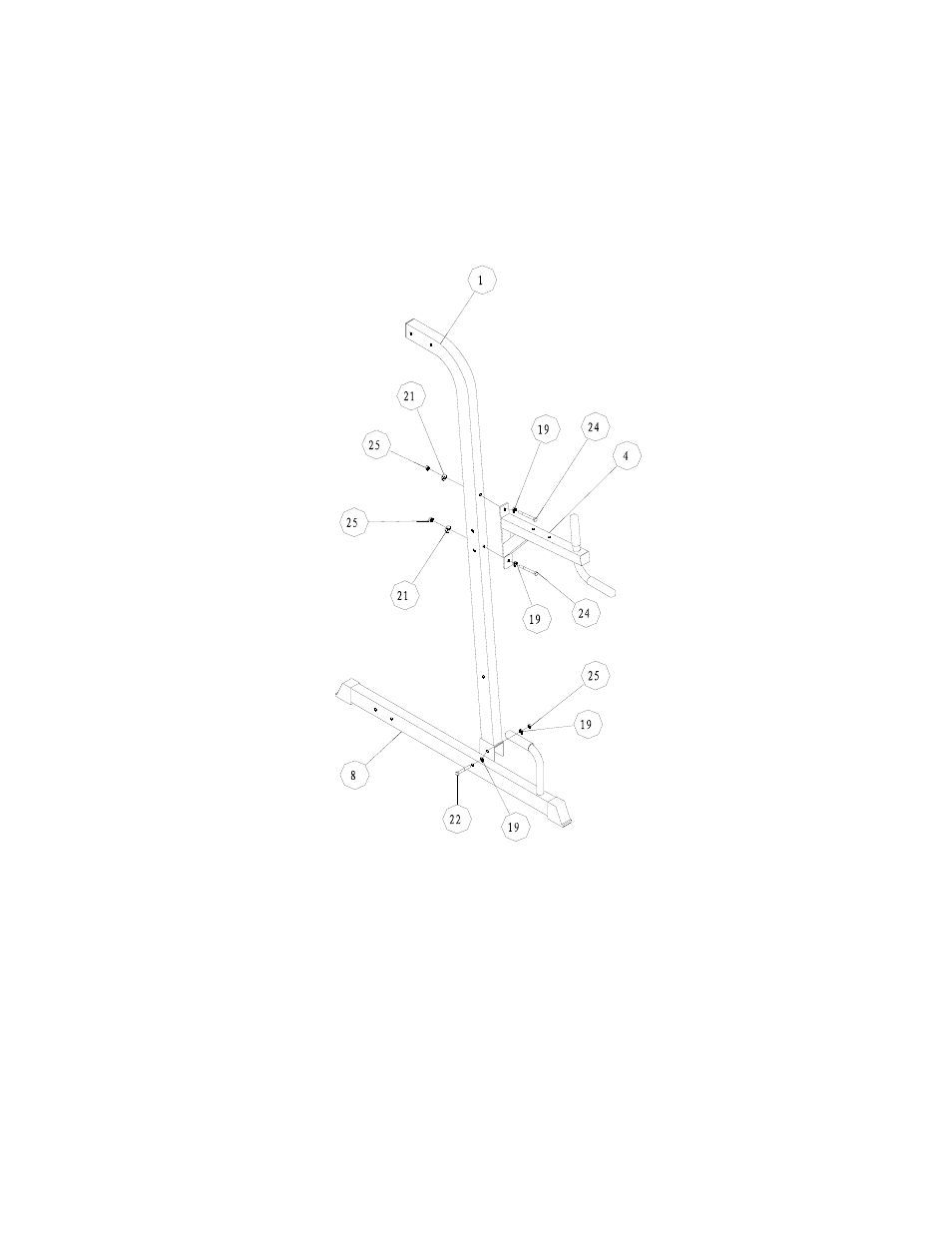

Connect Upright Frame (1) to Base Frame (8) using Bolt (22),
Washers (19) and Nylon Lock Nut (25).
Connect Elbow Pad Support Frame (4) to Upright Frame (1)
using Bolts (24), Washers (19), Large Washers (21) and Nylon
Lock Nuts (25).
Repeat Step 1 for other side of KPS-PT.
