Step 5, Assembly – Keys Fitness CALF RAISE KPS-CR User Manual

Page 8

background image

]

14

27

11

33

27

33

15

7

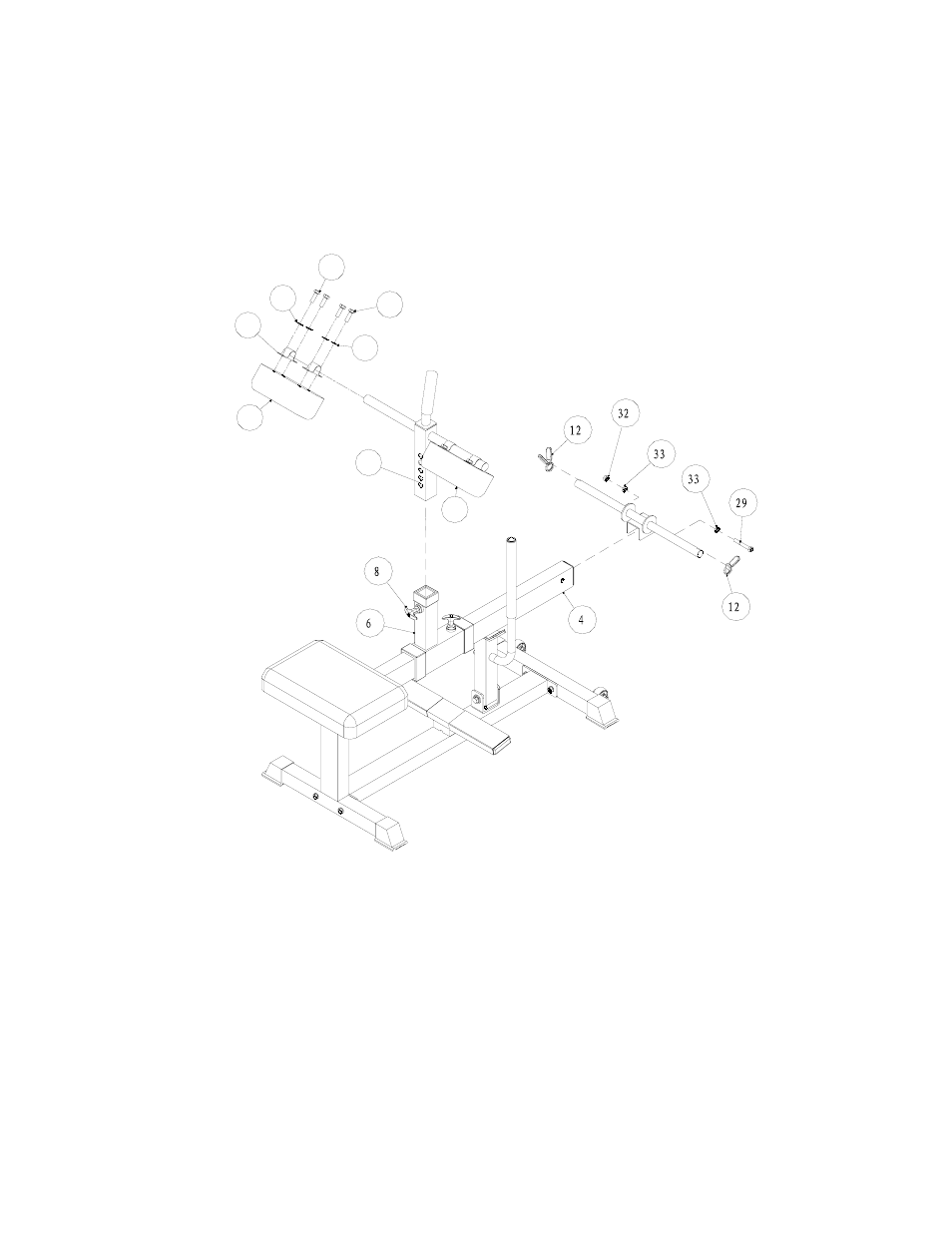

STEP 5

Attach Weight Holder to Swing Frame (4) using:

1 x (29) Bolt

2 x (33) Washer

1 x (32) Nylon Lock Nut

Attach Right and Left Knee Pads (14,15) to Adjstable Pad
Frame (7) using:

4 x (11) Bracket

8 x (33) Washer

8 x (27) Bolt

ASSEMBLY

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
