ASSEMBLY

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Z

STEP 2

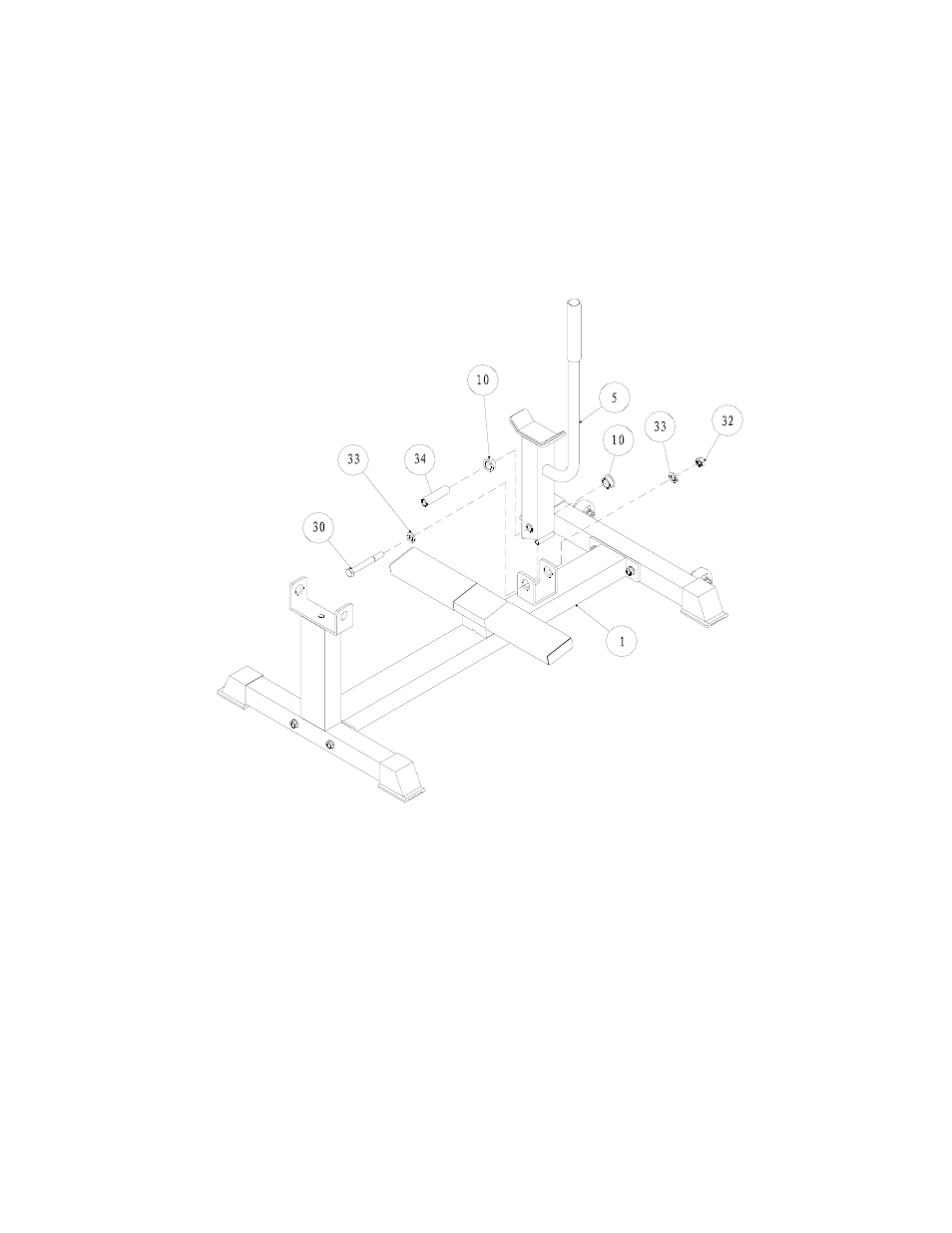

Attach Stopper Frame (5) to Cross Base (1) as shown using:

1 x (30) Bolt
2 x (33) Washer
1 x (34) Short Sleeve Tube
2 x (10) Bronze Bushing
1 x (32) Nylon Lock Nut
