Kohler Wall/Ceiling Mount Faucet K-922/K-923 User Manual
Page 5
2. Ceiling Installation Layout

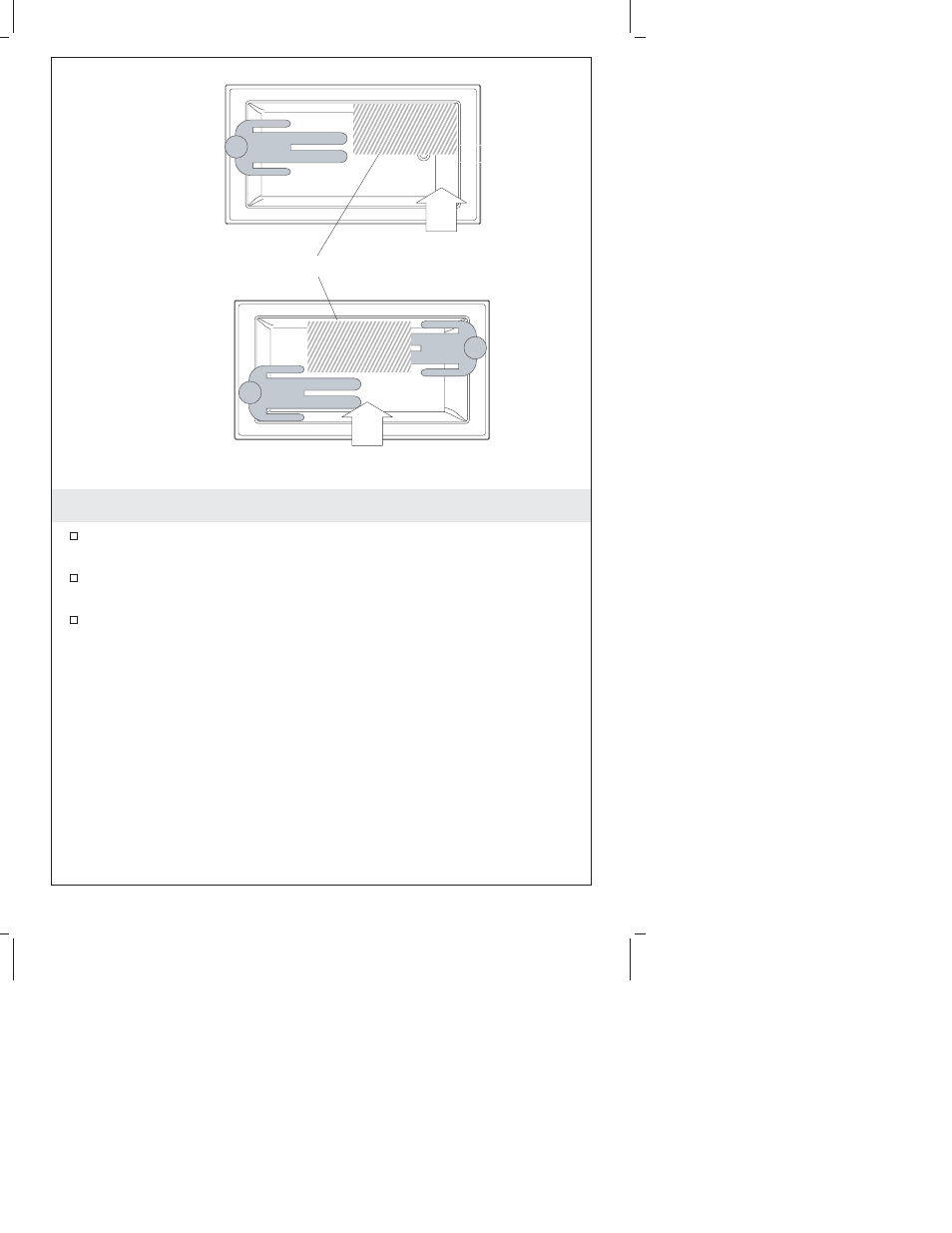

Install the spout in the ceiling over the bathing fixture at the
shaded areas shown in the illustration.
Mount the spout so it is 9’ (2.7 m) or less from the bottom of the
bathing fixture.
Locate the spout so the water stream contacts the flat bottom of
the bathing fixture. Excess splashing will occur if the water
stream contacts whirlpool jets or bathing fixture corners.
Enter
One Bather
Enter
Two Bathers
Ceiling Installation Range
Kohler Co.
5
1006741-2-G
