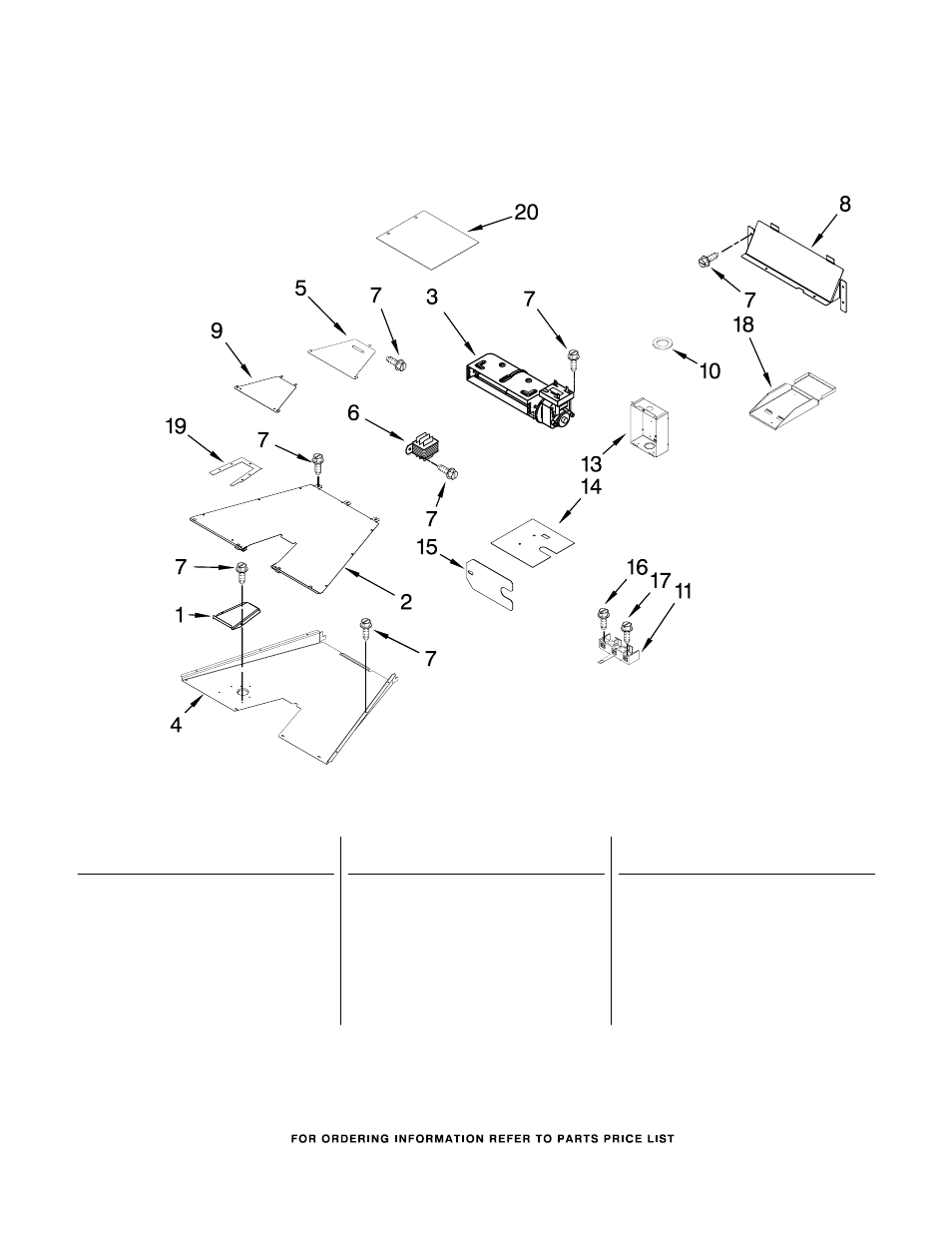

TOP VENTING PARTS
8
For Model: KDRU763VSS00
(Stainless)
W10260308
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10246075 Slope,
Exhaust Vent
2 W10160896 Vent, Cooling Top
3 W10245511 Blower
4 W10246078 Vent−Bottom
5 W10160875 Plate,
Cooling Latch
6 9762885 Transformer,
Control
7 7101P426−60 Screw
8 W10160844 Bracket, Blower
9 W10160858 Cover, Latch
10 W10270396 Chimney Seal
11
9761958 Block, Terminal
13 W10115858 Box, Terminal
14 9759721 Insulator,
Terminal Box
15 W10269198 Cover, Channel
16
3196163 Screw
17 7101P460−60 Screw
18 W10249337 Support, Control
19 W10270397 Seal, Foam
20 W10239444 Seal, Control
