English 7
* Commercially available parts
š

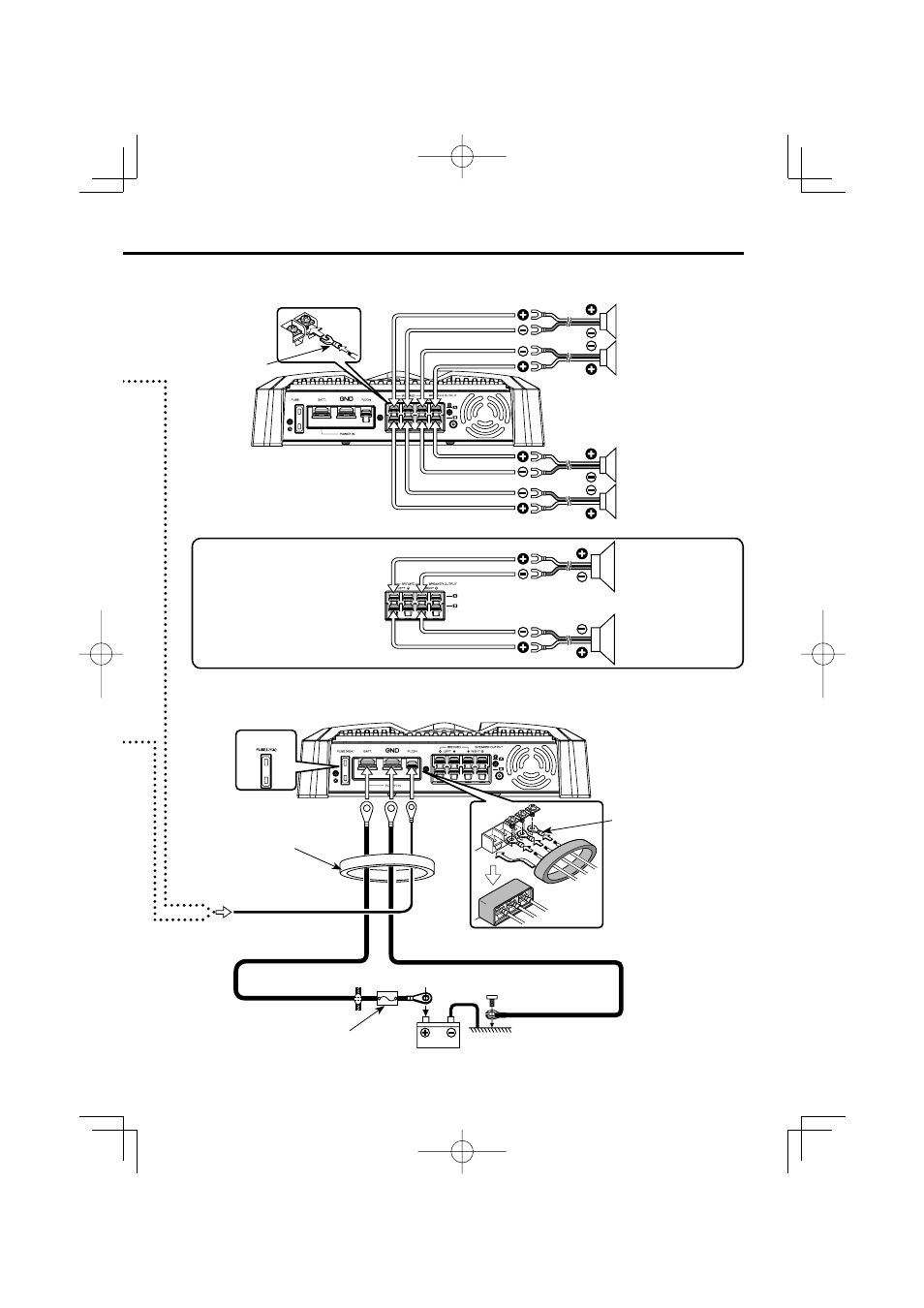

■ Speaker wire connection
Lead terminal*
• Stereo Connections
A channel
Left speaker
A channel
Right speaker
• Bridged Connections
A channel
Speaker (Bridged)
40 25
Battery
Ground wire* Battery wire*
Protective Fuse*
Lead terminal*
■ Power wire connection
Terminal cover
B channel
Left speaker
B channel
Right speaker
B channel
Speaker (Bridged)
Power control wire*
KAC-M645
KAC-M845
