6 | DDX8019/DDX8039

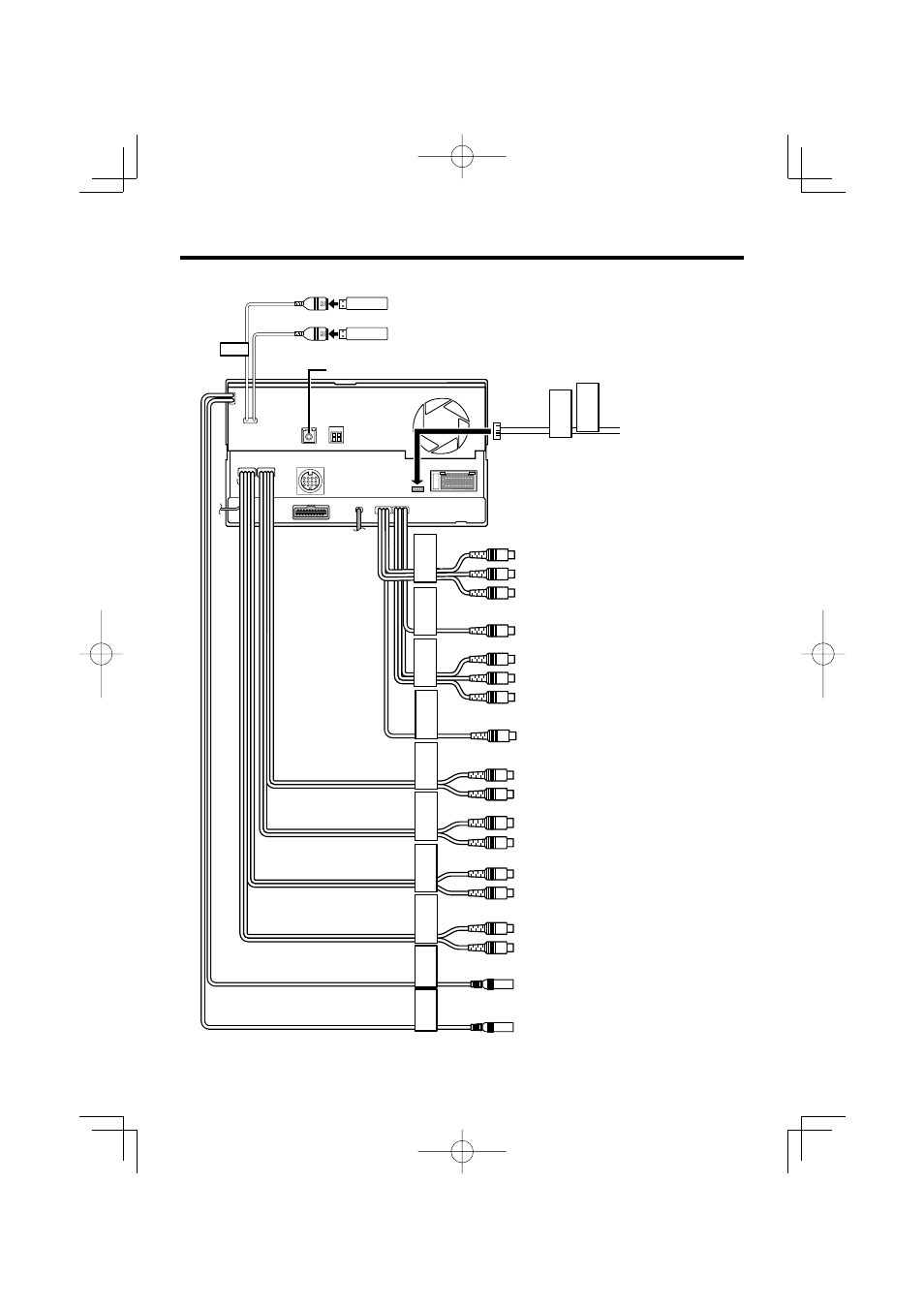

System Connection
CAMERA
REAR VIEW
A
V
IN1
A
V
OUT
FR
ONT
REAR
W
O
OFER
SUB
A
V
OUT
A
V
IN2
RELA
Y 2
iPod
RELA
Y 1
AU
D
IO
I
N
iP
od
VIDEO IN
iP
od
■ Front Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear Preout
• Audio left output (White)
• Audio right output (Red)
■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear View Camera Input
• Visual input (Yellow)
■ Audio/Visual Output
• Audio left output (White)
• Audio right output (Red)
■ Audio/Visual input1
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
■ Audio/Visual Output
• Visual output (Yellow)
■ Audio Input (iPod)
Resistance-free stereo type mini
plug (3.5φ)
■ Visual Input (iPod)
Resistance-free mini plug (3.5φ)
USB terminal (iPod)
USB device
(commercially available)
Rear view
Do not connect.
■ Audio/Visual input2
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
To Relay Box
Accessory 2
USB terminal
USB device
(commercially available)
