Floor fixing option 5 – Kohler Dual-Flush Toilet 1102602-A2-D User Manual
Page 4
1102602-A2-D
4
Kohler Co.
4

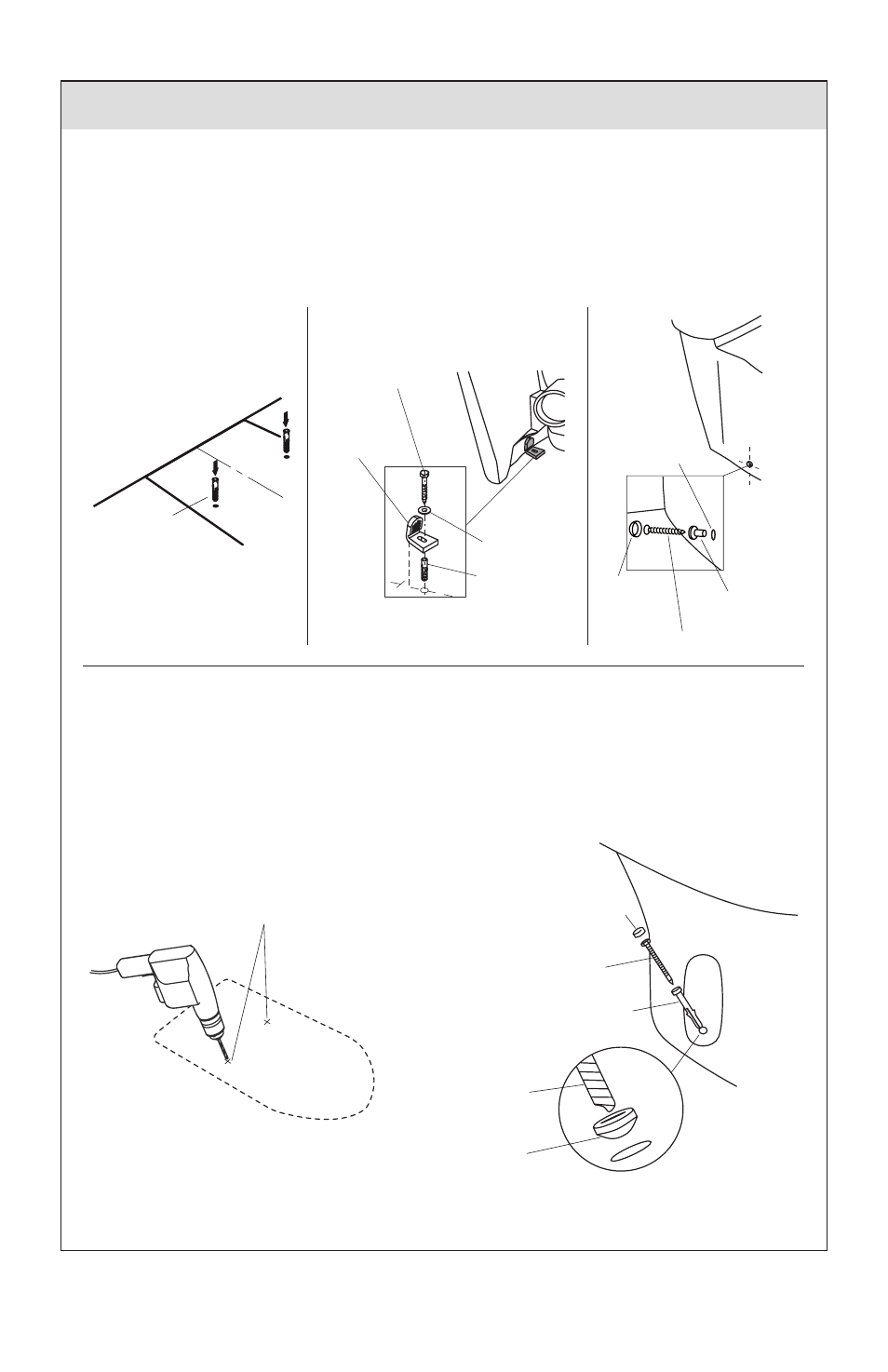

Bracket
Drill 3/8” (10 mm) fixing holes at the marked locations on the floor and insert
the anchor. Install the washer and insert the hexagon screw into the bracket
then tighten the screw. Position the toilet in the installed position. Install the
sleeves, tighten the screw and attach the caps.
Floor fixing option
5
Screw
Drill 5/16” (8 mm) mounting holes at the marked locations. Insert anchors into
the holes. Place the toilet and align with anchoring holes position. Tighten screws
and attach the bolt caps.
Anchor
Screw
Sleeve
Hole
Cap
Hexagon
Lag Screw
Bracket
Washer
Anchor
Fixing Holes
Screw Cap
Screw
Anchor
Sleeve
Drill
