IX AMPLIFIERS

IX.2-SERIES AMPLIFIERS Owner’s Manual
IX500.2

INSTALLATION

Mounting: Choose a structurally sound location to mount your KICKER amplifi er. Make sure there are no items
behind the area where the screws will be driven. Choose a location that allows at least 4” (10cm) of open
ventilation for the amplifi er. If possible, mount the amplifi er in the climate-controlled passenger compartment. Drill

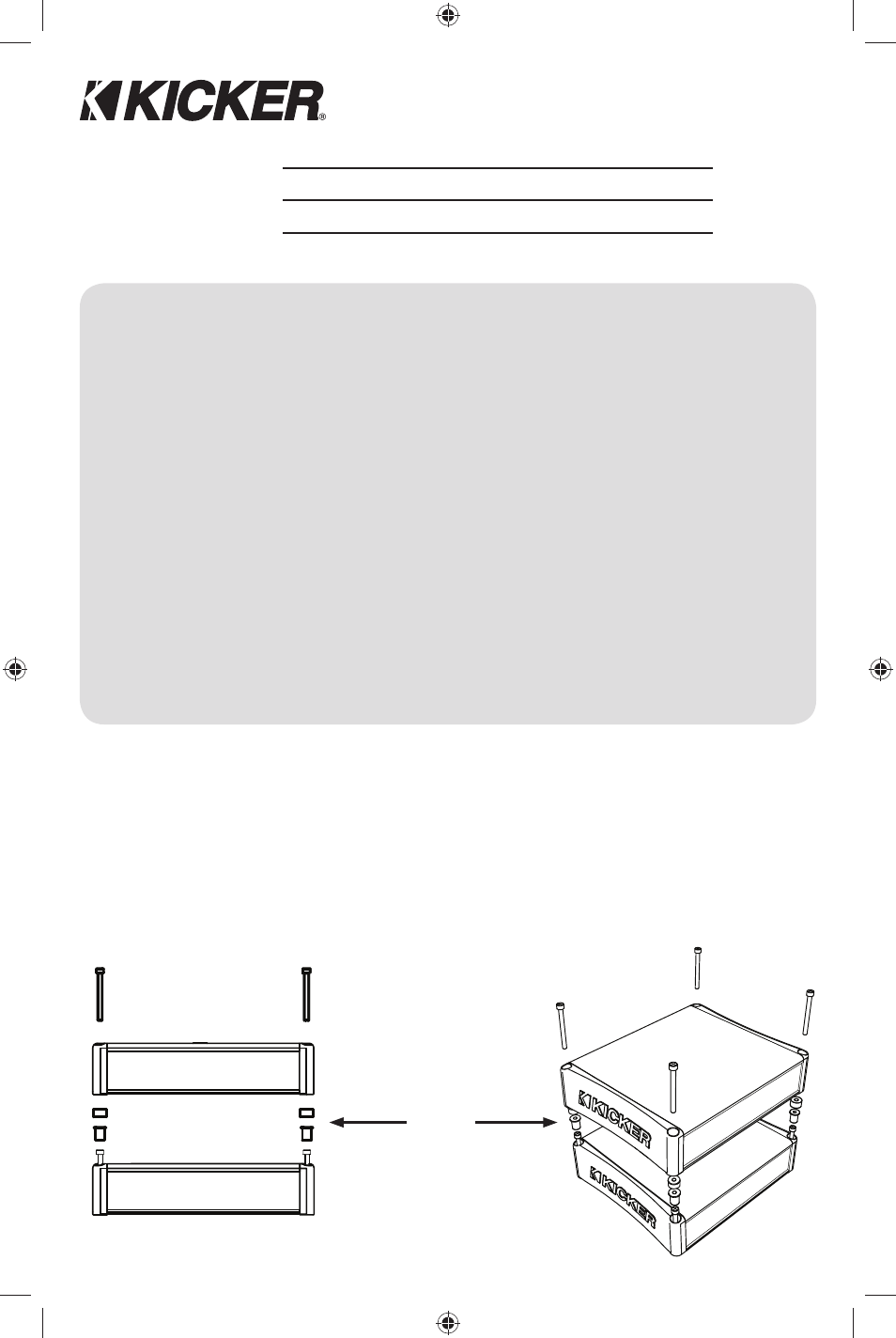

four holes using a 7/64” (3mm) bit and use the supplied #8 screws to mount the amplifi er. Use the IXSM or IXSK
mounting kits (sold separately) to stack multiple IX amplifi ers.

PERFORMANCE

Authorized KICKER Dealer:

Purchase Date:

Serial Number:

Model:

IX500.2

RMS Power
@ 14.4V, 4

Ω stereo,  1% THD+N

@ 14.4V, 2

Ω stereo,  1% THD+N

@ 14.4V, 4

Ω mono,  1% THD+N

125W x 2
250W x 2
500W x 1

Length

9-3/8” (238mm)

Height

2-3/16” (55mm)

Width

7-7/8” (200mm)

Frequency Response ± 1dB

20Hz–20kHz

Signal-to-noise Ratio

>95dB, A-weighted, re: rated power

Input Sensitivity

Low Level: 125mV–5V
High Level: 250mV–10V

Electronic Crossover

Selectable HI/LO/OFF, Variable 50–200Hz, 12dB/octave

Bass Boost

Variable 0–18dB @ 40Hz

Maximum Effi ciency (2

Ω) >80%

Pro Tip: To get the best performance from your new KICKER Amplifi er and extend the warranty by 1 year, use
genuine KICKER accessories and wiring.

IXSK

sold separately
