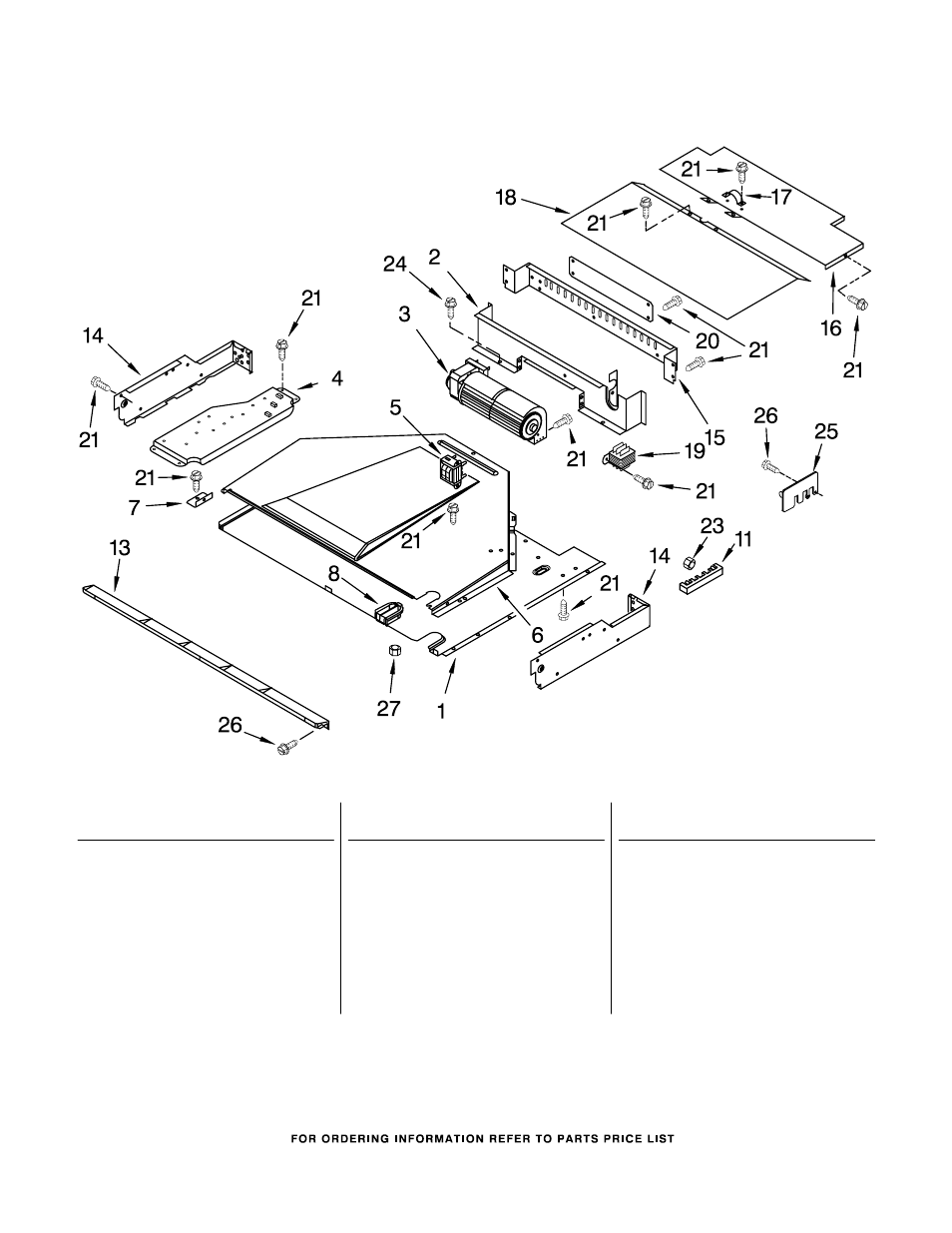

TOP VENTING PARTS
7
For Models:KBMC147HBL05,KBMC147HWH05, KBMC147HBT05,KBMC147HSS05
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
8186469
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4450377 Cover, Top
2 4448935 Baffle, Blower
3 4450920 Blower
4 4451789 Plate, Mounting
5 6610122 Transformer,
(Lights)
6 8303844 Exhaust Duct
7 4450027 Bracket, Duct
8 4449964 Grommet
11 4449868 Block, Terminal
13 4456144 Vent−Cntrl Panel
14 Side, Control Top
4451597 Right
4451598 Left
15 4452244 Back, Control
16 4450550 Cover, Top Rear
17 4448664 Clamp
18 4452366 Cover, Top Front
19 4455038 Transformer−Cntrl
Control
20 4452247 Cover, Plate
21 4449809 Screw
23 112432 Nut
24 1180485 Screw
25 4451934 Suppressor
26 3400080 Screw
27 4450118 Nut
