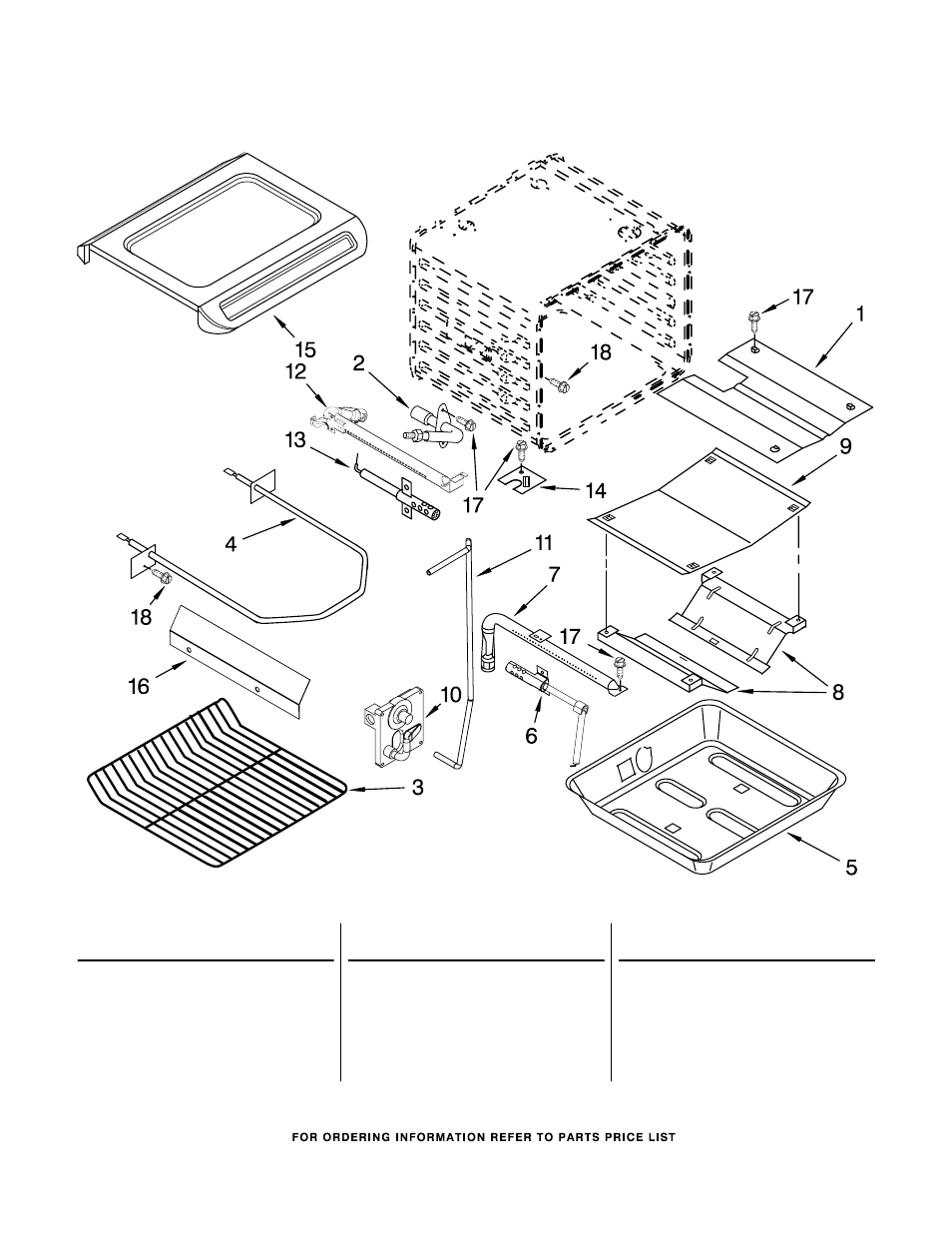

INTERNAL OVEN PARTS
9
For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02
(Black) (White) (Stainless)
W10269050
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 9752980 Shield, Flame
2 9757779 Fitting, Broiler
3 W10179152 Rack, Oven
4
9760776 Element, Broil
5 4453957 Pan Support, Bake
6 9760229 Electrode, Bake
7 9760228 Burner, Bake Log
8 9752737 Shield, Oven
9 4453984 Shield, Bake Flame
3196176 Screw
10 9763716 Valve, Assemble
11 9756831 Tube, Broil
12 W10111219 Burner, Broil
13 8054129 Ignitor, Broil
14 4454009 Cover, Ignitor
15 4453920 Pan, Oven Bottom
16 W10153101 Diverter, Air
17
3196176 Screw
18 4449154 Screw
