Technical Reference
53
Connection examples

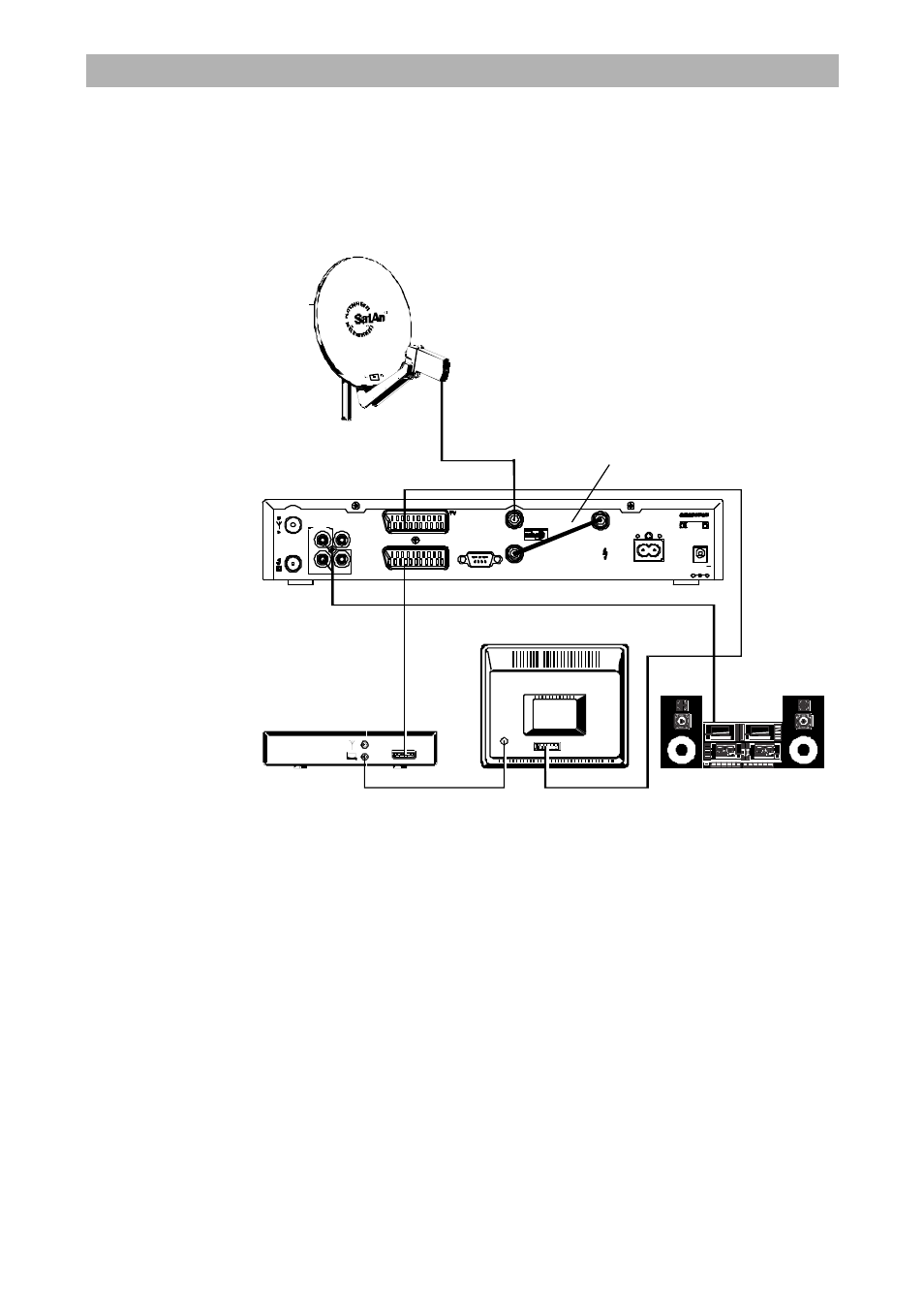

Connection arrangement 1:
Connection of the DVB-S receiver to a TV set, a VCR and a HiFi system for
receiving and recording digital satellite TV and radio channels.
The connection requires two SCART cables and one Cinch cable. If your TV is
equipped for stereo, the stereo sound can also be reproduced via the stereo
speakers of your TV set.
Video playback takes place via the modulator of the VCR and the antenna input of
the TV set.
VCR
TV
Receiver
UFD 545
HiFi
VHF/UHF
VHF/UHF
Cinch
Scart
Sat-IF
Scart
Universal LNB
UAS 177
R
max.3A
UFD 545
Elektroschock-Gefahr !
Nicht oeffnen !
12V-24V 50/60Hz
max.30W
950-2150MHz
ANALOG 14/18V max.400mA
22kHz
IF OUTPUT
DATA I/O
L
R
AUDIO VIDEO
IF INPUT DIGITAL
VCR
AUX
IF INPUT
External jumper for
analogue reception
